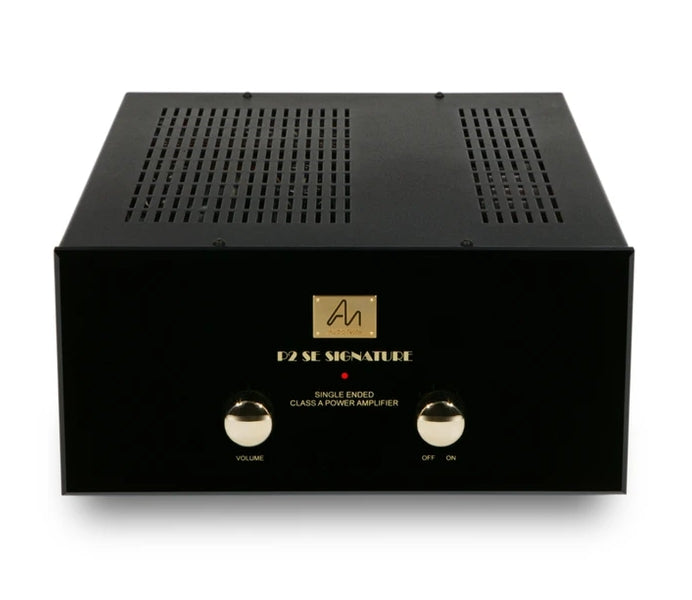

Audio Note P2 SE Power Amplifier

*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

The P2 SE power amplifier uses a pair of 5881/6L6 output valves per channel in parallel single ended configuration, which helps produce a power output to suit most speakers. The amplification stage is similar to that found in the Soro SE integrated amplifier.

The volume control on the fascia means it can be used to adjust the gain (especially useful when used with very high efficiency speakers and/or a high gain pre amplifier) and it can also be used to control the volume of a single source too.

Some of the superior quality components utilised in the P2 SE include:

​Audio Note (UK) custom tinfoil capacitors, used in the most critical areas. Dual power supplies and transformers, one for the output stage and one for the remaining circuitry. Custom designed output transformers, manufactured by Audio Note (UK). These output transformers—one of the most critical areas of valve amplifier design—allow the P2 SE to produce impressively extended and controlled bass.

Technical Specifications:

Input Impedance: 100 KOhm, line level
Input Sensitivity: 430mV for full output
Maximum Output: 8 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 6SL7 & 4 x 5881/6L6WGB
Unit Weight: 17 kg
Unit Dimensions (HxWxD): 140mm x 295mm x 450mm
Max. Power Consumption: 100 Watts (PP)/90 Watts (SE)
