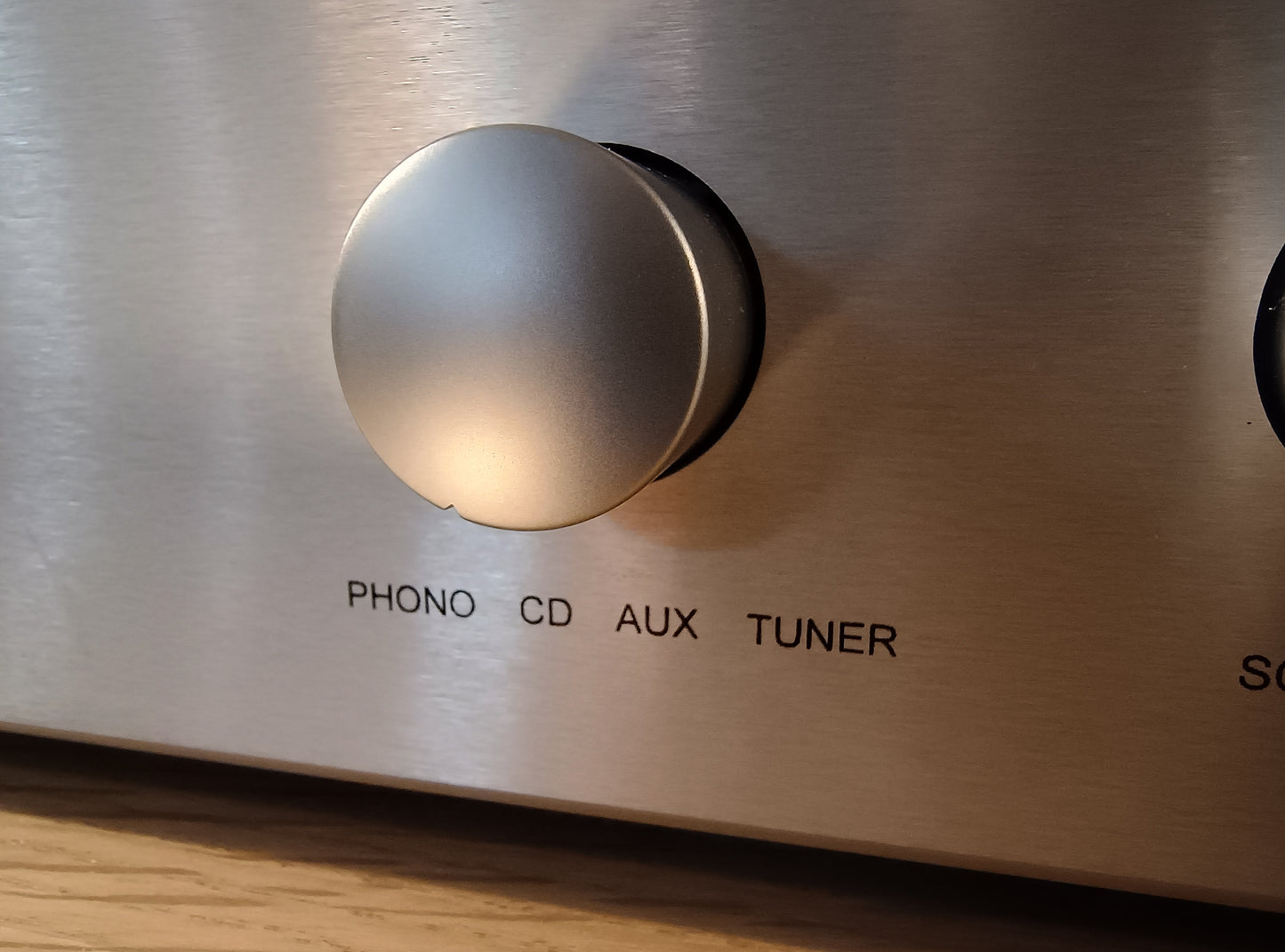

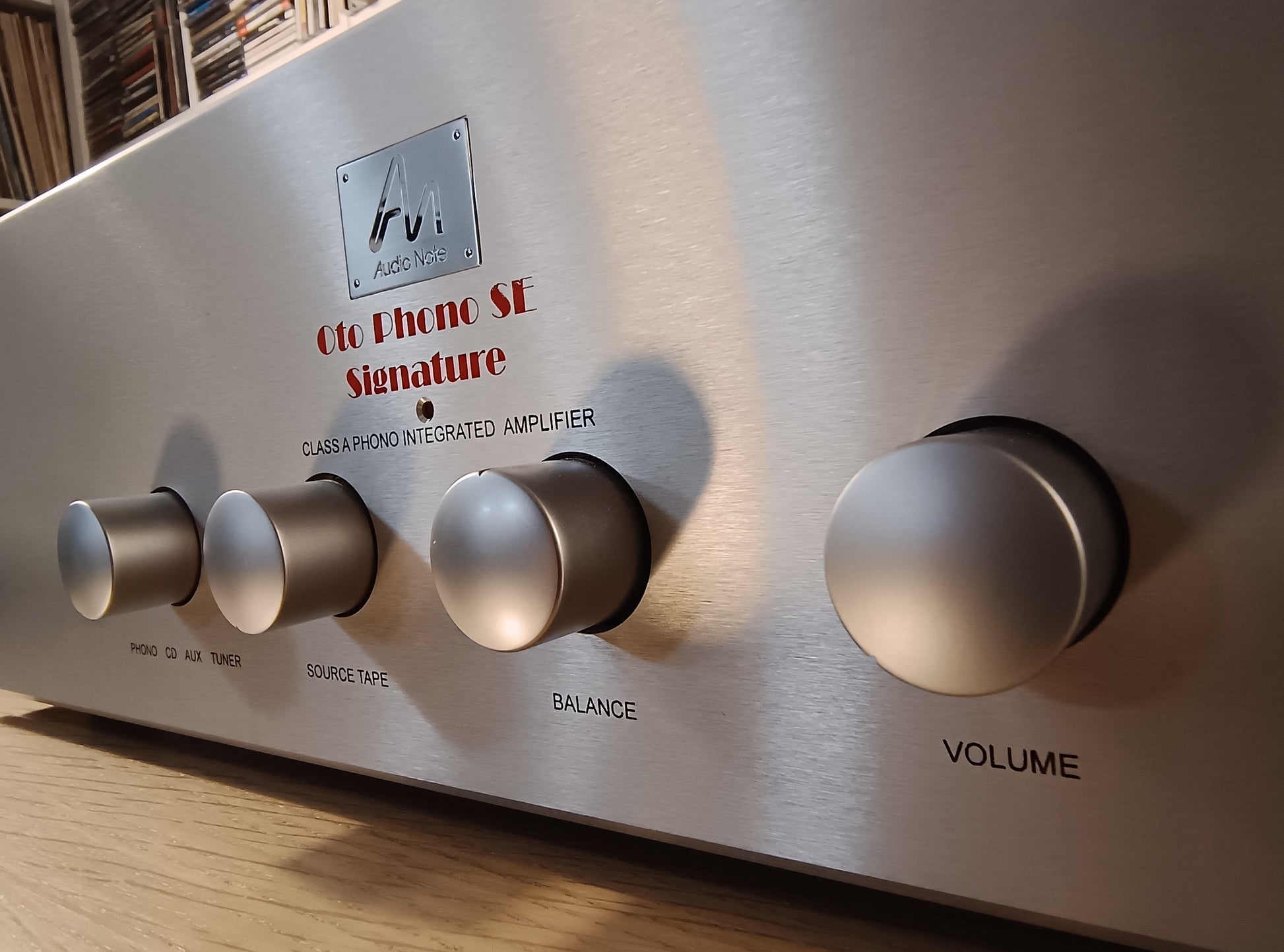

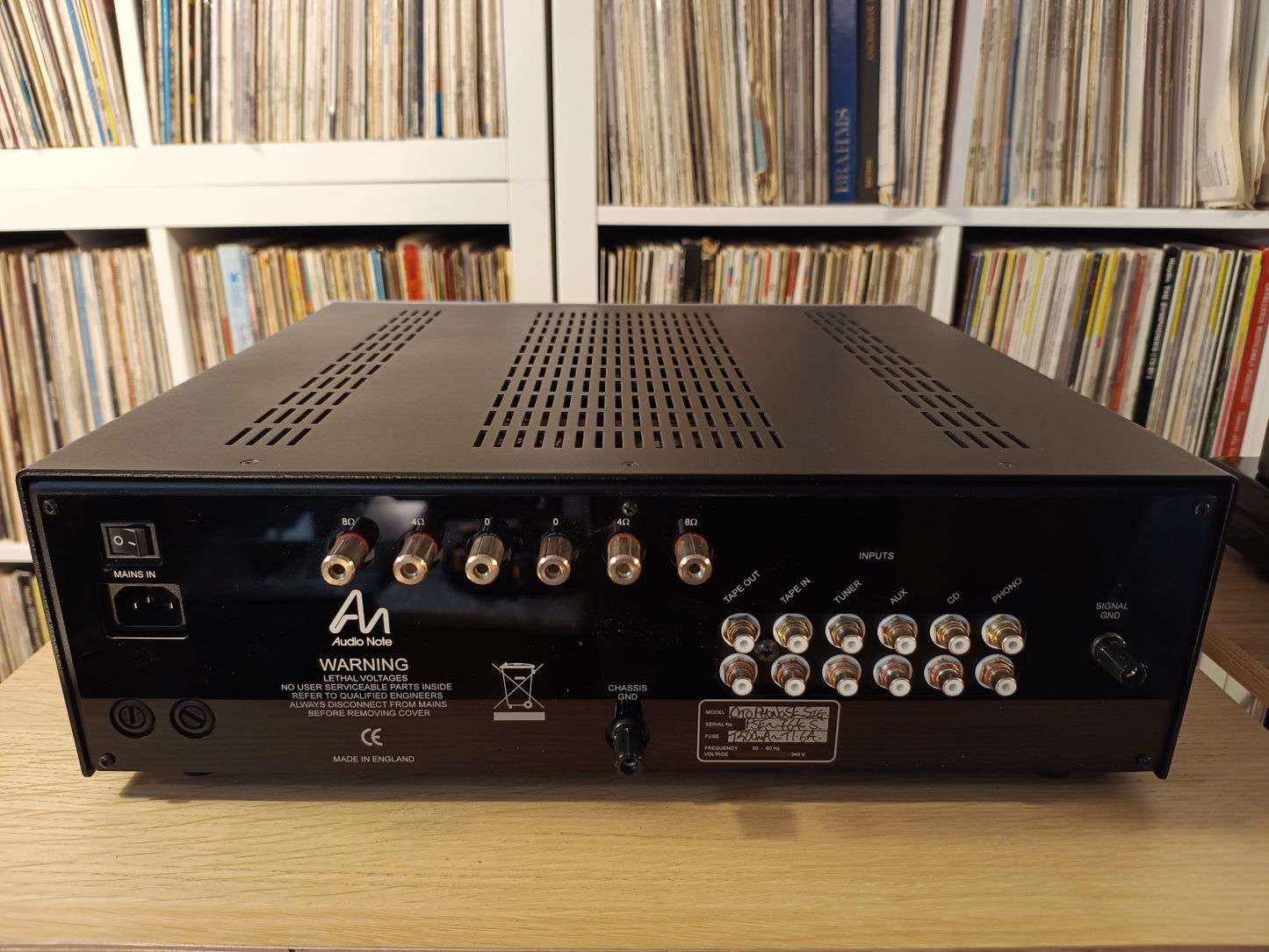

Audio Note Oto SE Signature Phono *ex dem* (Click & Connect)

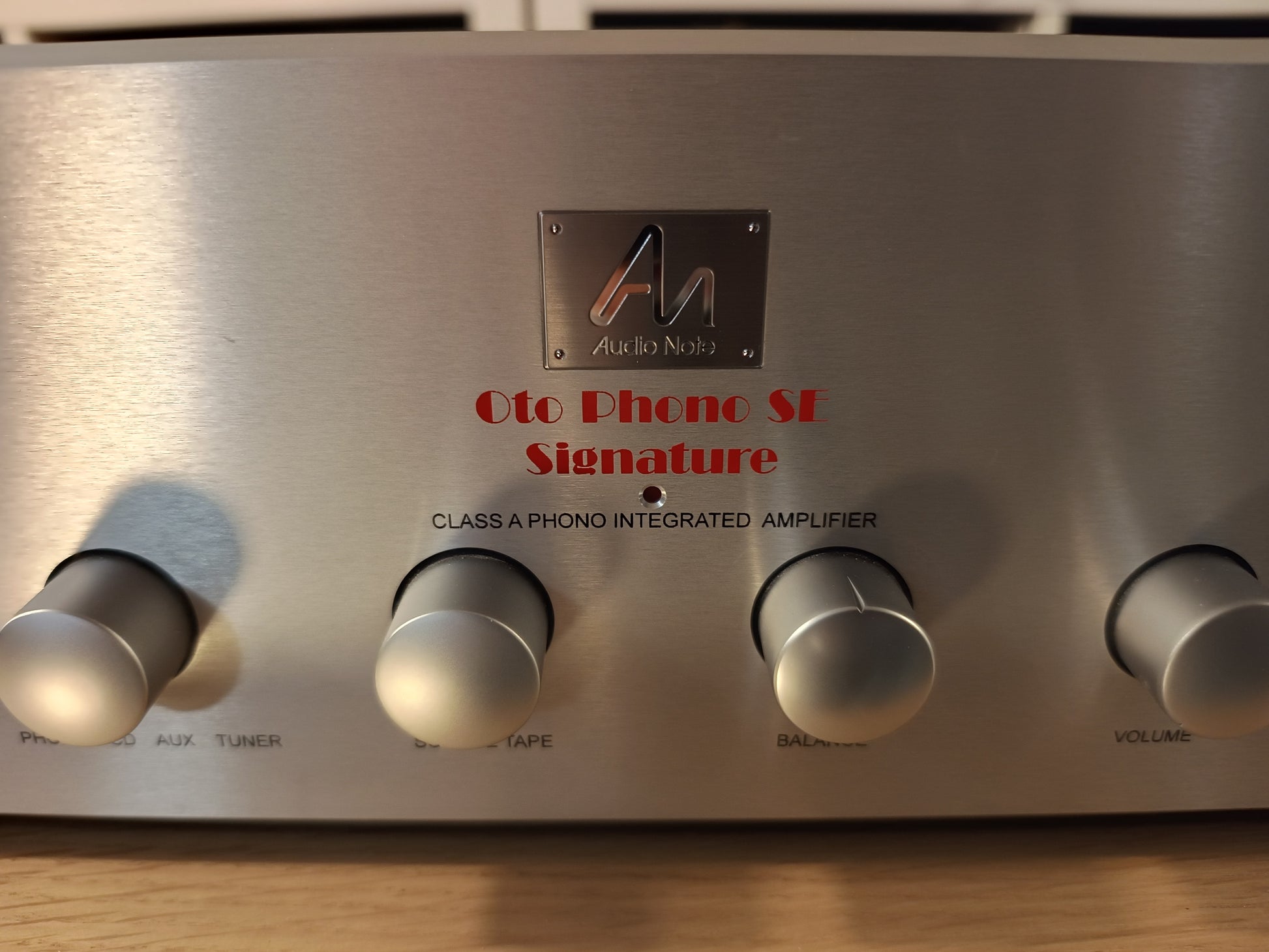

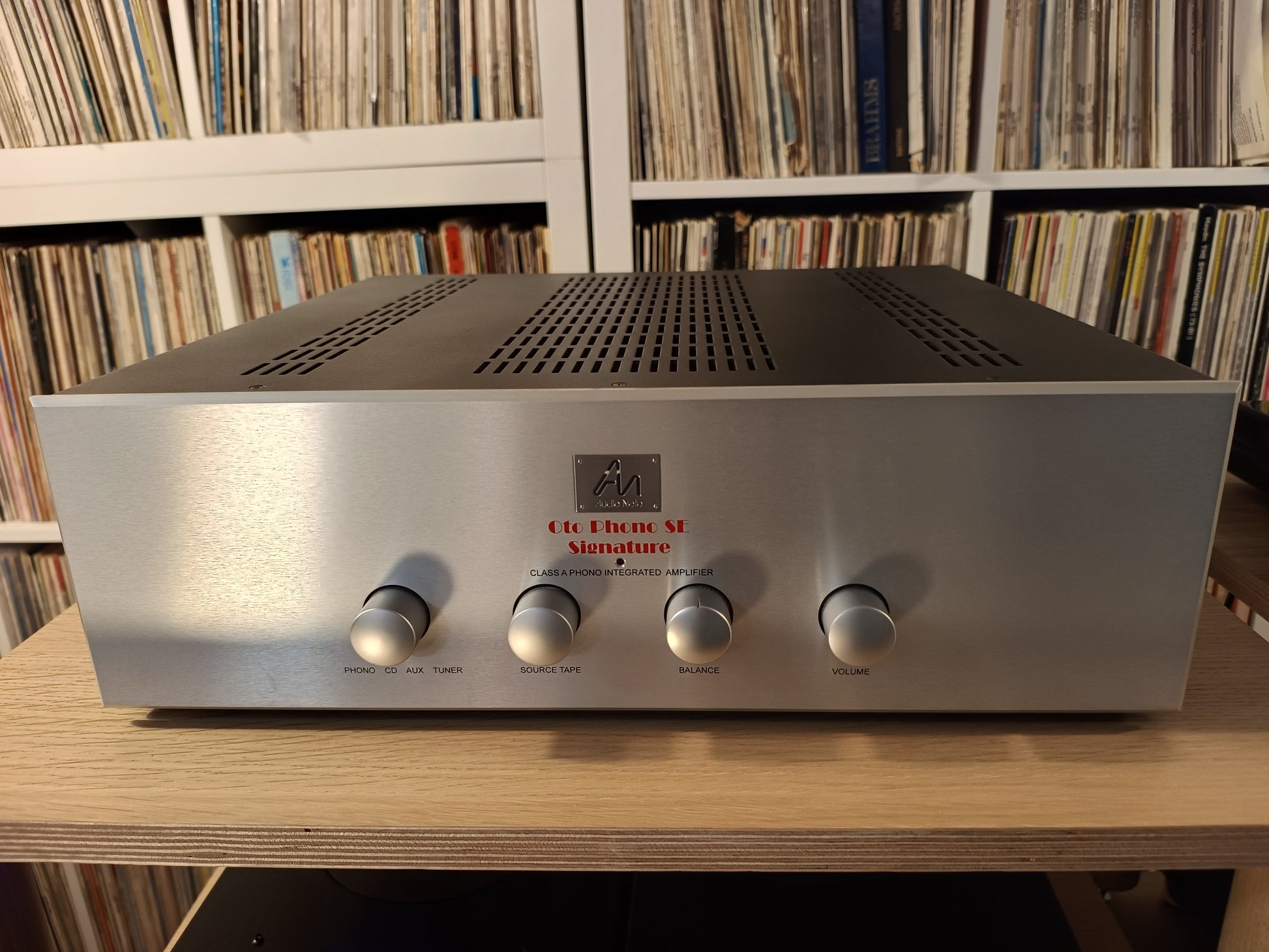

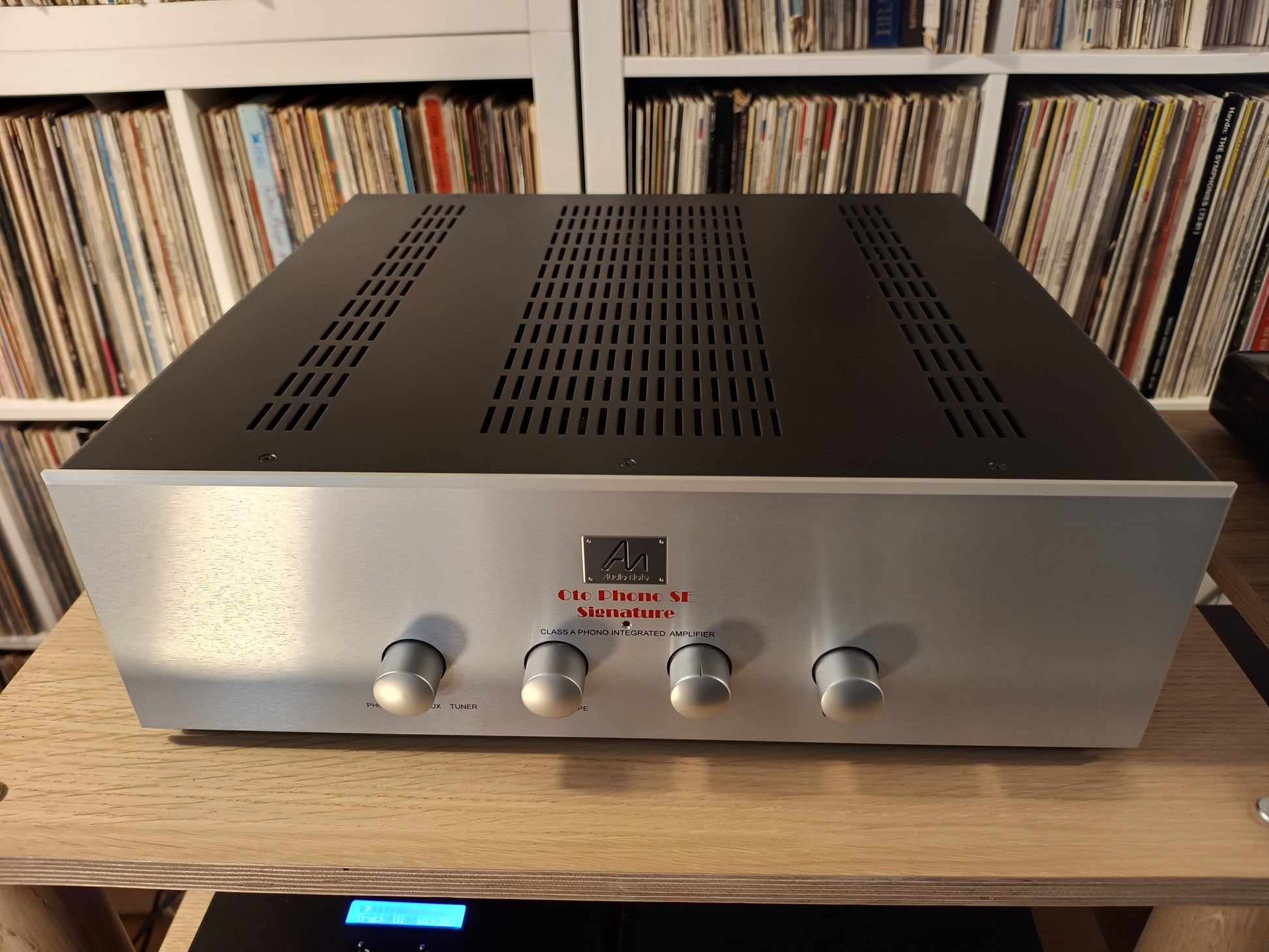

This is our demonstration Oto SE Signature Phono, a wonderful single ended integrated amplifier with inbuilt phono stage.

The Signature version of the Oto takes the design and takes the component level to another level, with improved transformers, capacitors and resistors. The result is a big hitter, with refinement and resolution combined with the innate timing, dynamics and musicality that only the very best single ended amplifiers can achieve.

A pair of EL84 output valves work in parallel per channel, which produce usable to drive most speakers and a modicum of feedback to help control speakers with less than ideal impedance curves.

This amplifier is in excellent condition, I'd rate it circa 9 out of 10. The normal price is £7,150.00

Here's what I've written elsewhere on this site about this design:

 As you’d expect with a good single ended amplifier the sound is punchy and dynamic, whilst still being very natural and expansive. It may lack the completely grain less mid band of a 300B SE amplifier but it’s an exceptionally neat package and so involving to listen to that dissecting the minutiae of its performance seems to be missing the point. The phono stage is a very good quality design too, and not simply an afterthought like many. A fractionally more powerful push pull version is available, but we would always recommend this SE version for the best sound quality.

Some of the superior quality components utilised in the OTO SE Signature include:

Audio Note (UK) Copper foil capacitors used in the most critical areas. Audio Note (UK) Tantalum resistors used in the most critical areas. Custom designed IHiB output transformers, manufactured by Audio Note (UK). These output transformers—one of the most critical areas of valve amplifier design—allow the OTO SE Signature to produce impressively extended and controlled bass.

Technical Specifications:

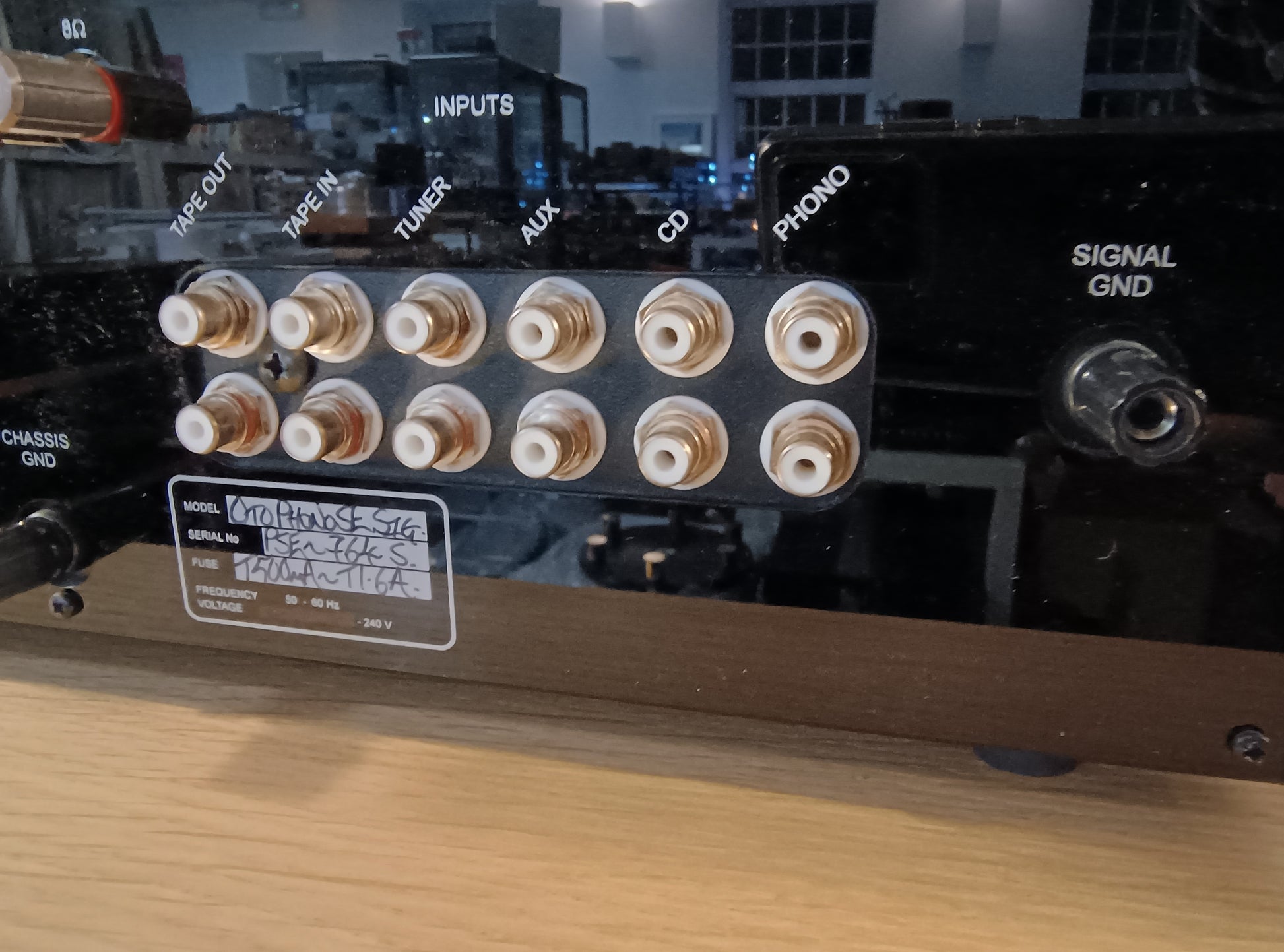

Input Impedance: 100K Ohm, Line Level & 47K Ohm, Phono input
Input Sensitivity: 300mV Line Level & 3mV Phono input

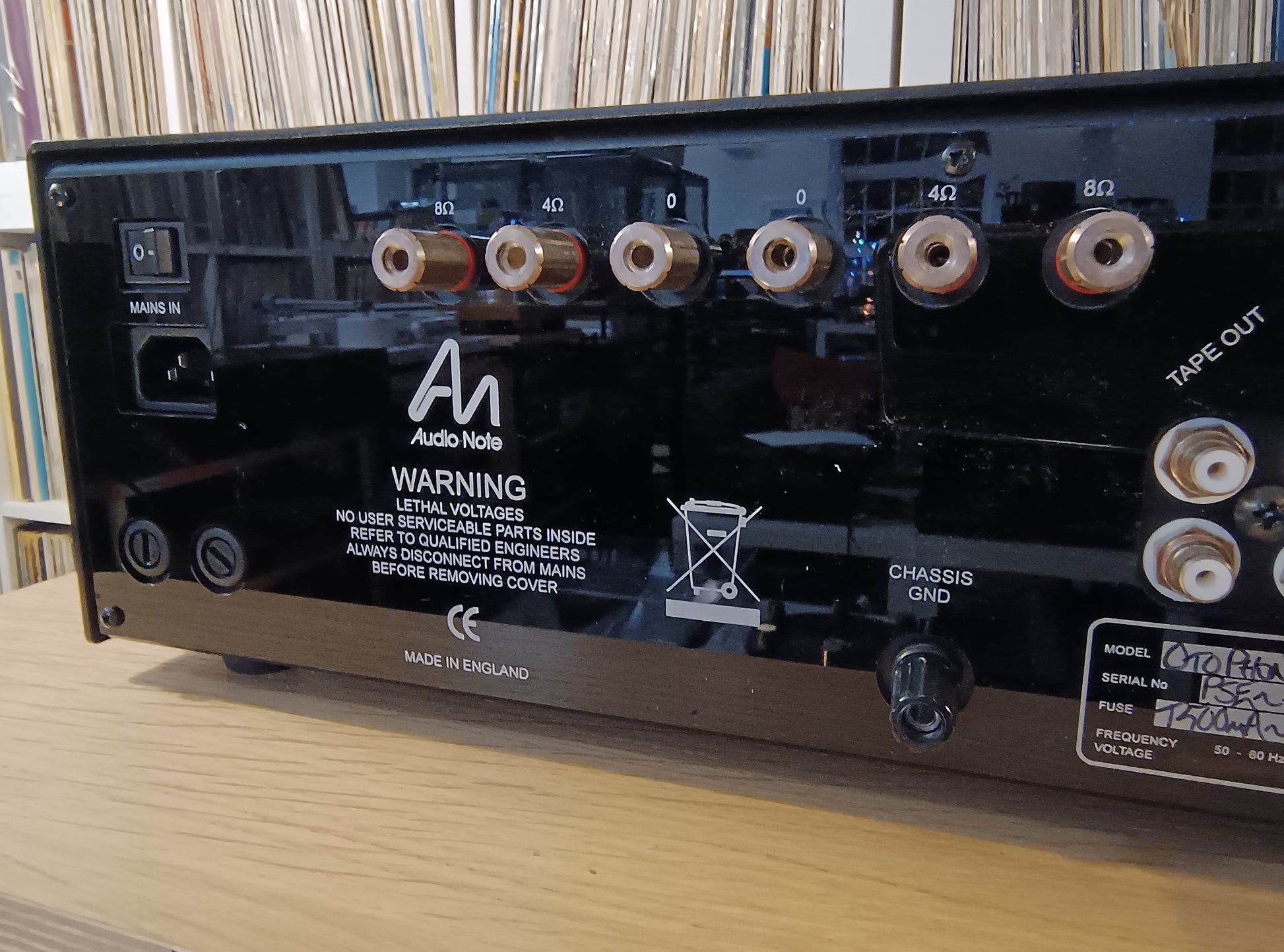

Maximum Output: 10 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: Single Ended - 1 x ECC82, 2 x ECC83, 4 x EL84, 1 x ECC83 & 1 x 6DJ8
Unit Weight: 17 kg
Unit Dimensions (HxWxD): 140mm x 440mm x 410mm

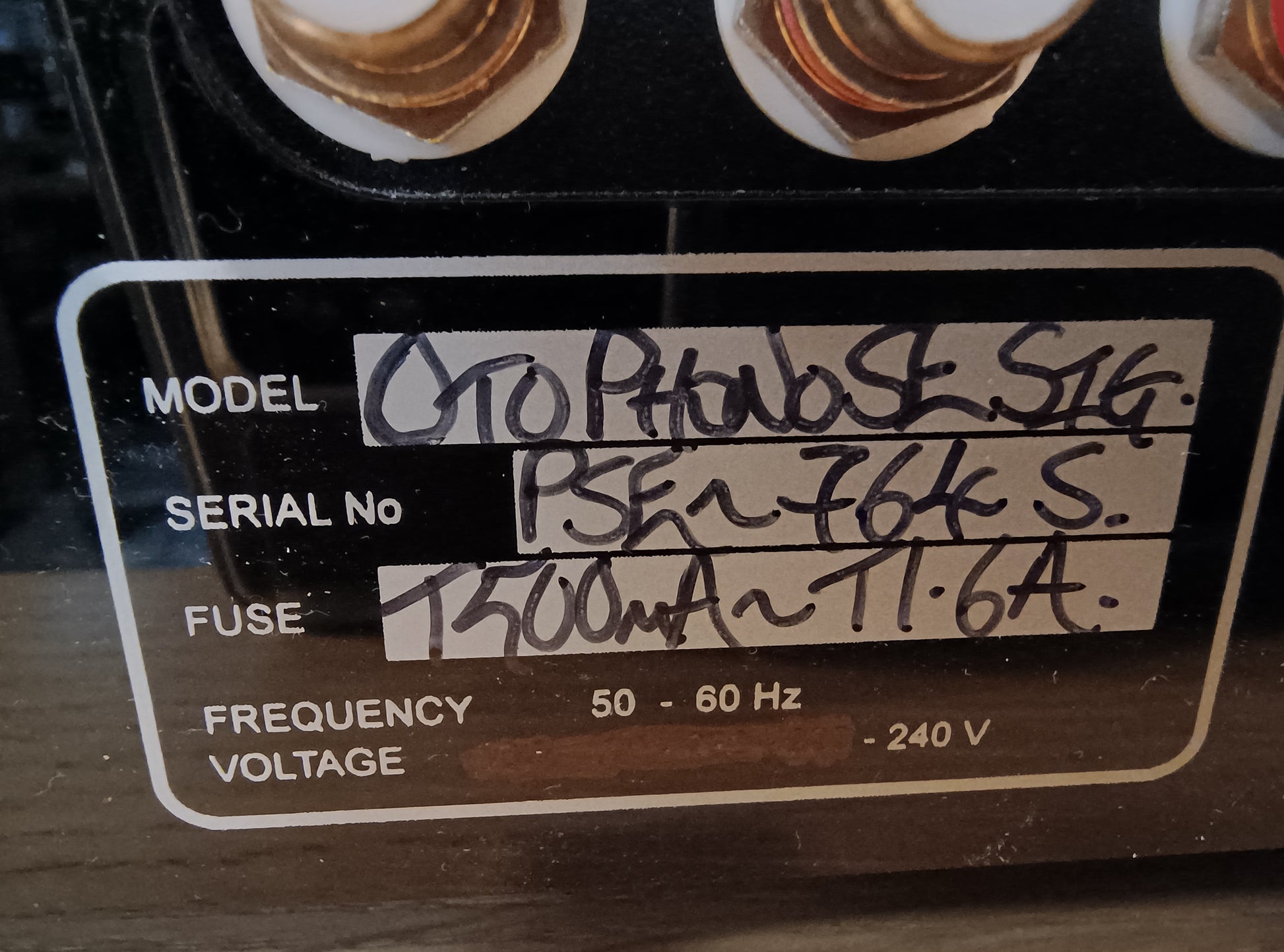

Mains Input: 220-240V 50/60Hz
Max. Power Consumption: 100w
