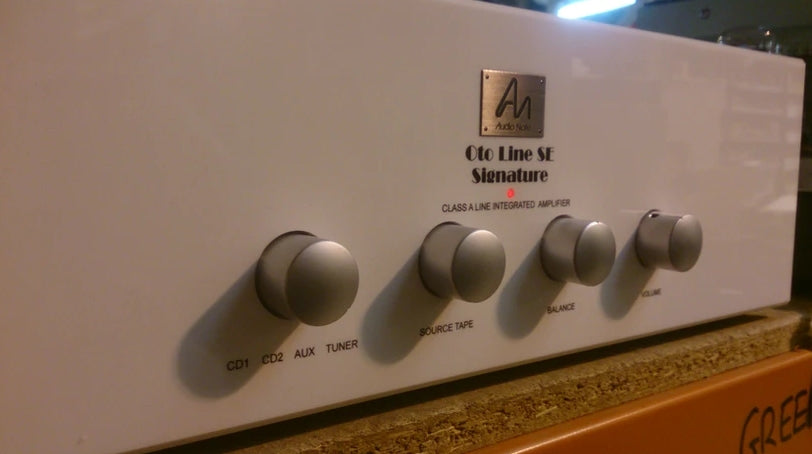

Audio Note OTO SE Signature Integrated Amplifier

Audio Note OTO SE Signature Integrated Amplifier

Regular price £4,802.95 GBP
Regular price Sale price £4,802.95 GBP
Sale Sold out
Tax included.
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

The OTO SE integrated amplifier uses EL84 valves in parallel single ended configuration, producing an output of 10 watts and is available with or without an internal an all valve MM phono stage. It’s all housed within the classic Audio Note casework which is available with either a black acrylic or brushed aluminium fascia. As you’d expect with a good single ended amplifier the sound is punchy and dynamic, whilst still being very natural and expansive. It may lack the completely grain less mid band of a 300B SE amplifier but it’s an exceptionally neat package and so involving to listen to that dissecting the minutiae of its performance seems to be missing the point. The phono stage is a very good quality design too, and not simply an afterthought like many. A fractionally more powerful push pull version is available, but we would always recommend this SE version for the best sound quality.

Some of the superior quality components utilised in the OTO SE Signature include:

Audio Note (UK) Copper foil capacitors used in the most critical areas. Audio Note (UK) Tantalum resistors used in the most critical areas. Custom designed IHiB output transformers, manufactured by Audio Note (UK). These output transformers—one of the most critical areas of valve amplifier design—allow the OTO SE Signature to produce impressively extended and controlled bass.

Technical Specifications:

Input Impedance: 100K Ohm, Line Level & 47K Ohm, Phono input
Input Sensitivity: 220mV (Push Pull) / 300mV (Single Ended) Line Level & 2mV(Push Pull) / 3mV (Single Ended) Phono input
Maximum Output: 9 Watts (Push Pull) / 10 Watts (Single Ended)  RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: Push Pull - 1 x 5670, 2 x 6UA6, 4 x 6005, 1 x ECC83 (Phono models only), 1 x 6DJ8 (Phono models only), Single Ended - 1 x ECC82 (Phono models only), 2 x ECC83, 4 x EL84, 1 x ECC83 (Phono models only) & 1 x 6DJ8 (Phono models only)
Unit Weight: 17 kg
Unit Dimensions (HxWxD): 140mm x 440mm x 410mm
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 100W
