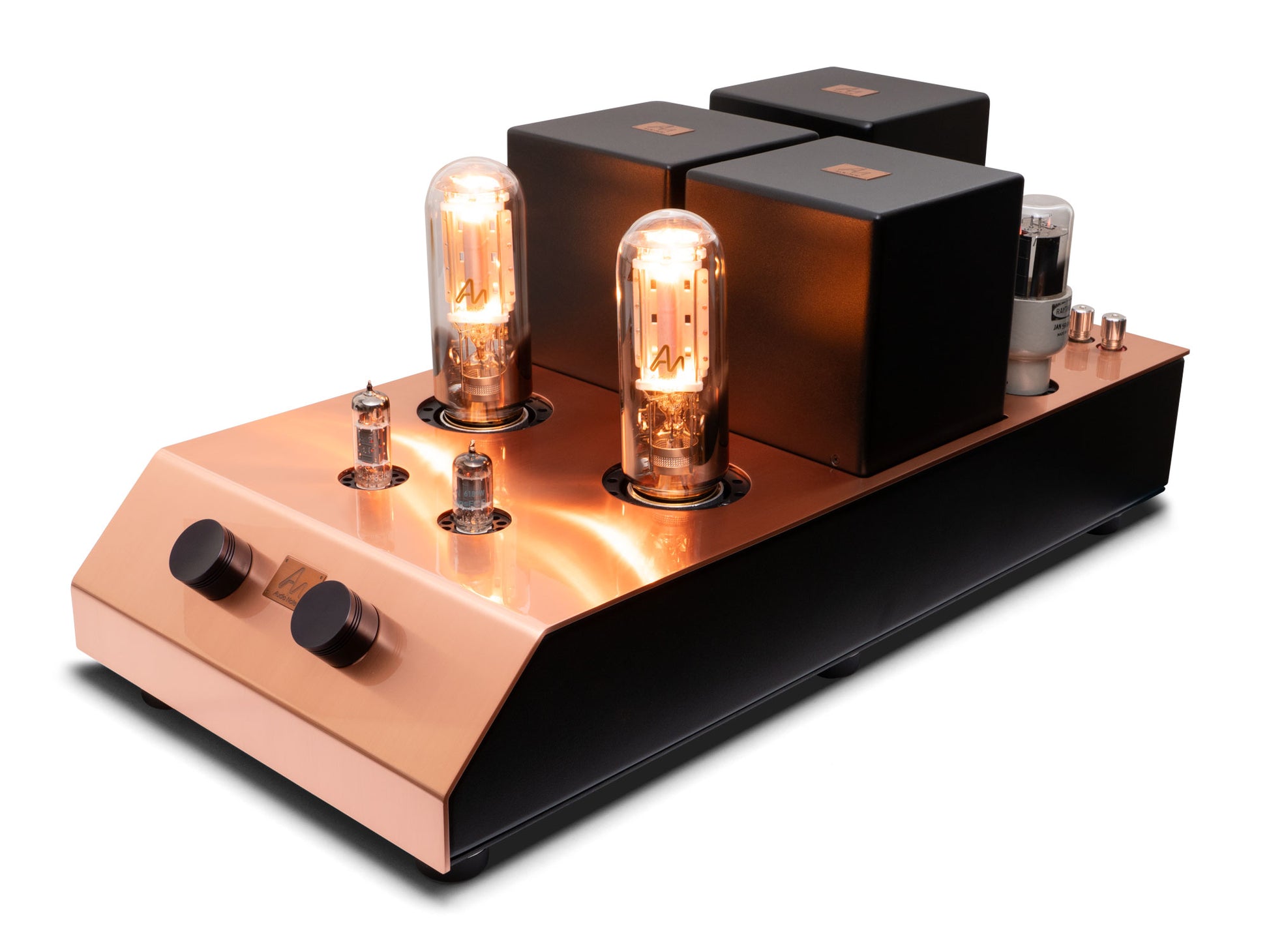

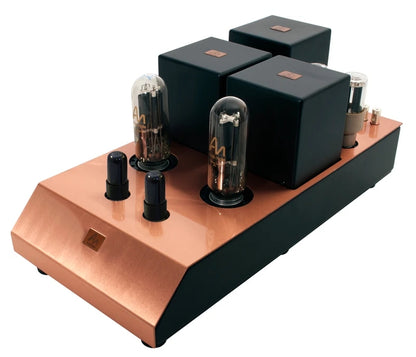

    Audio Note Ongaku Shinguru Mono Block Power Amplifiers (pair)

    Audio Note Ongaku Shinguru Mono Block Power Amplifiers (pair)

    £170,856.00 GBP
    £170,856.00 GBP
    Sale Sold out
    Tax included.
    Finish
    *In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

    *Audio Note items are supplied to order, please allow approximately 8 weeks for build time*
    The Ongaku Shinguru is the 'ultimate' Audio Note production mono block power amplifier using a single output valve per channel (if we ignore the custom 'Legend' power amplifiers). They feature the finest parts and an extreme level of attention to detail as befits a cost no object product such as this.

    Naturally silver wire is used throughout, the transformers included of course, the signal capacitors are silver foil in oil and the other capacitors are a mixture of Black Gate and Audio Notes own models.

    The input is via a Balanced XLR (which can be fed from a single ended pre amplifier if it is able to drive a low impedance load via an appropriate cable). An input transformer takes the balanced signal and converts it to single ended into the VT25/10Y Triode. This unusual and substantial directly heated triode which ultimately does the hard work of driving the single 211 directly heated triode output valve.


    INPUT IMPEDANCE 2.4 KOhm, XLR / Balanced line level
    INPUT SENSITIVITY 2.5V
    MAXIMUM OUTPUT 20 watts (approximate) per channel into 4or 8 Ohm loads
    FREQUENCY RESPONSE -3dB, 12Hz – 37KHz
    CHANNEL BALANCE +/- 0.3dB
    VALVE COMPLEMENT 2 x 5R4WGB, 1 x 211/VT4C, 1 x VT25/10Y (Per chassis)
    MAXIMUM POWER CONSUMPTION 400 Watts
    UNIT WEIGHT 37.5KG (each)
    UNIT DIMENSIONS 305mm (h) x 305mm (w) x 640mm (d) (Per Chassis)
