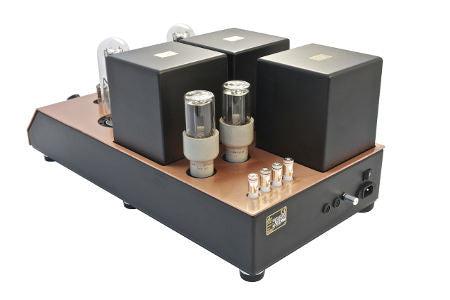

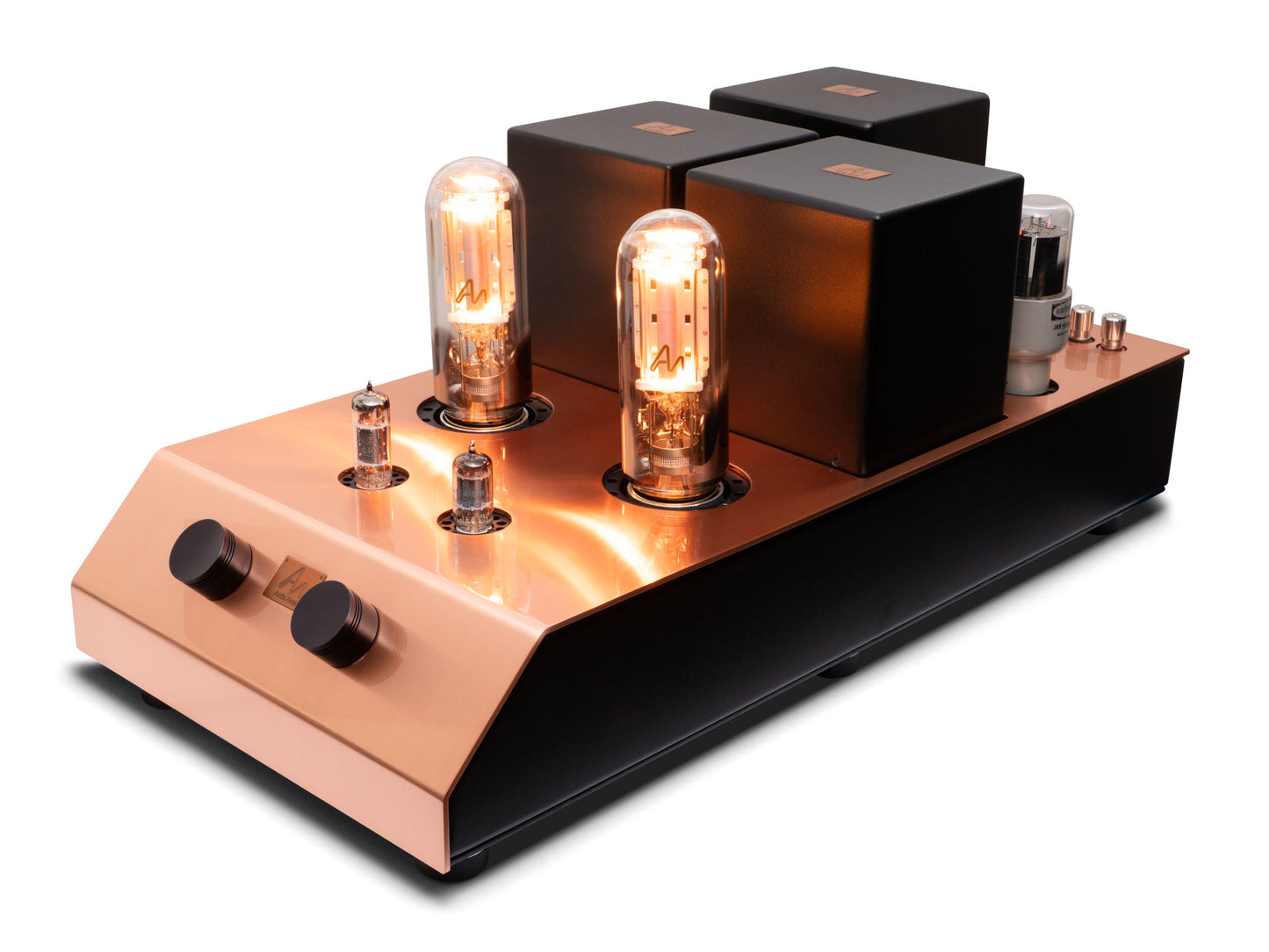

Audio Note Ongaku Integrated Amplifier

*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

The Audio Note Ongaku amplifier started life in the late Eighties, it soon became legendary and was undoubtedly largely responsible for the resurgence of interest in the ‘arcane’ use of single ended output stages, both thanks to its exceptional sound and a price tag that redefined the upper levels of hi end audio.

The Ongaku has evolved substantially since these times and now uses transformer coupling between input and output stages (instead of capacitor coupling used in the original). As befits its range topping status the transformers are completely silver wound and responsible for a large percentage of the cost increase over the Tomei featured above. As you’d expect the rest of the components are similarly uncompromising, with larger Tantalum resistors and Black Gate capacitors used throughout. The chassis is available with either brushed copper, piano black or aluminium top plates.

Technical Specifications:

Input Impedance: 100K Ohm, line level
Input Sensitivity: 450mV for full output
Maximum Output: 20 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4WGB, 2 x 211 / GE VT-4C, 1 x CV4068 & 1 x 6463
Unit Weight: 48 kg
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 200W
