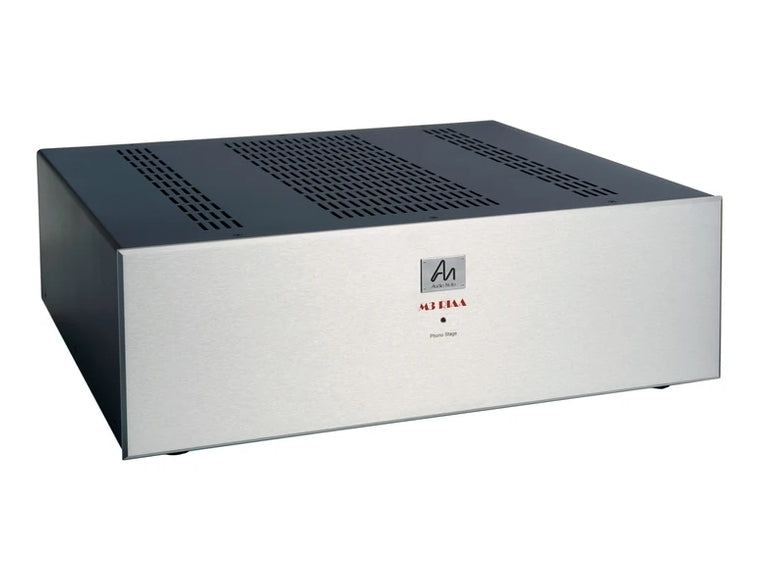

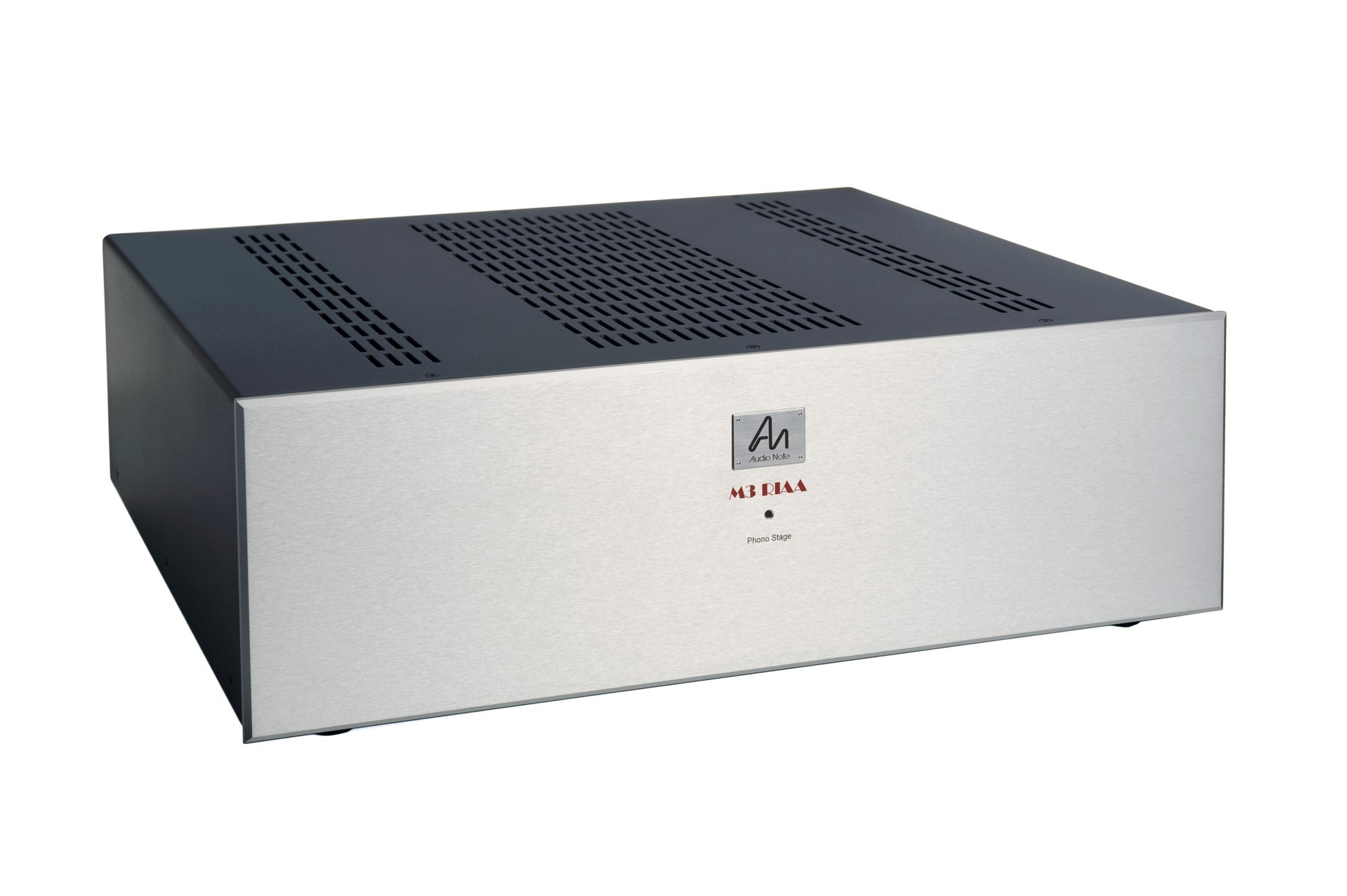

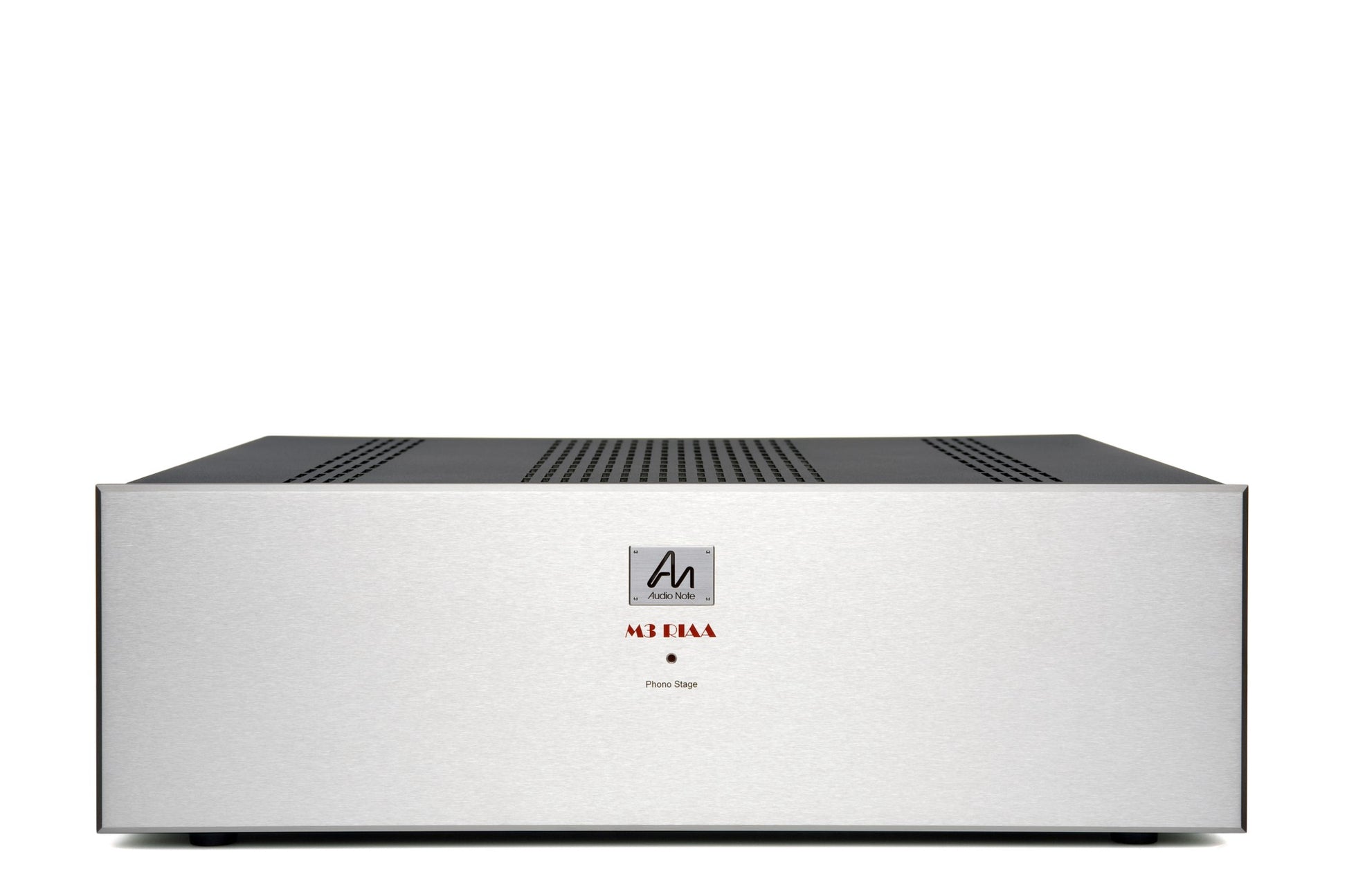

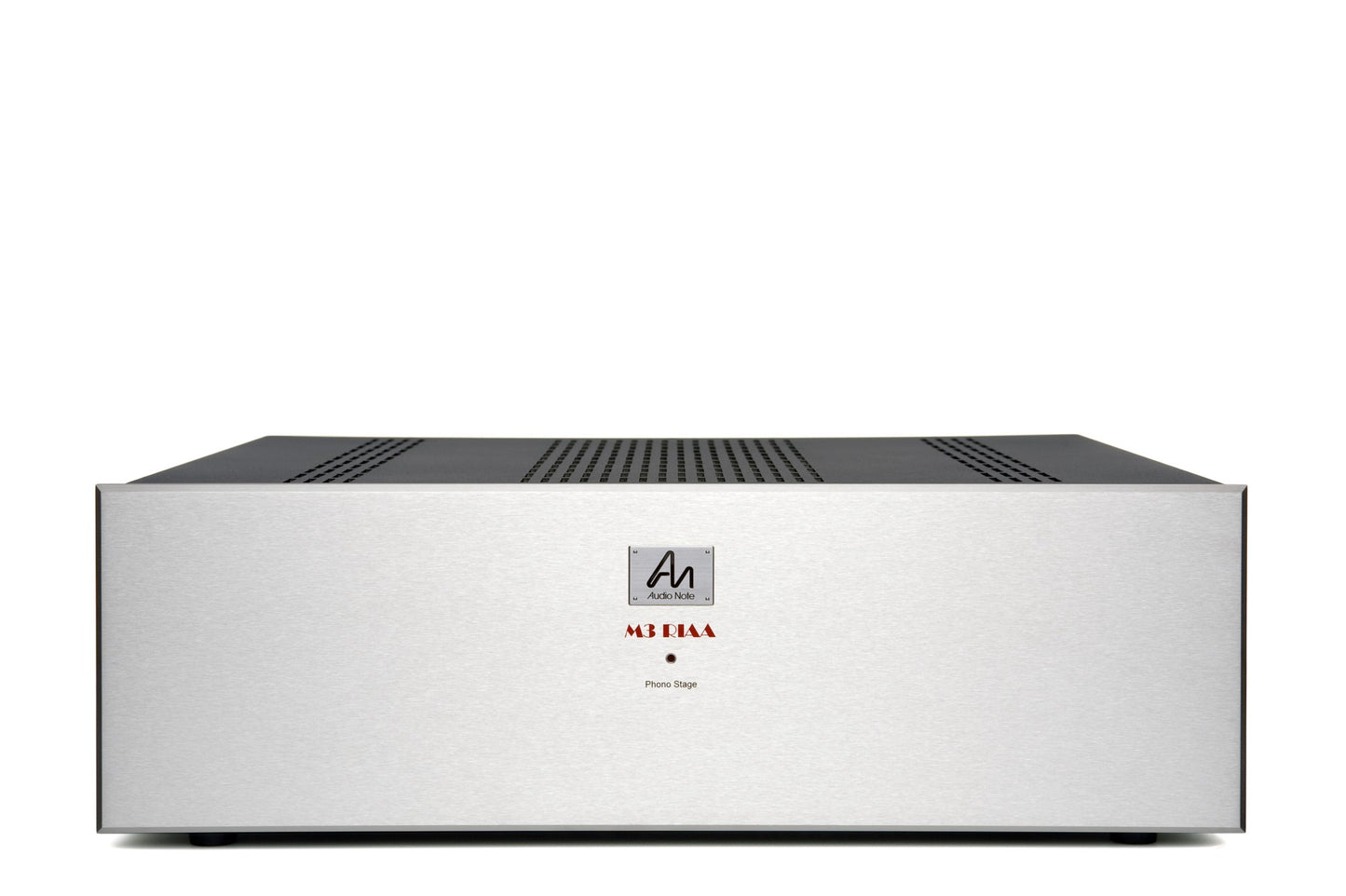

Audio Note M3 RIAA Phono Stage

Audio Note M3 RIAA Phono Stage

Regular price £8,081.49 GBP
Regular price Sale price £8,081.49 GBP
Sale Sold out
Tax included.
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

At  the  heart  of  the  M3 RIAA is  an  exceptionally  fine  Moving  Magnet  phono stage which uses three 5670 valves. This is followed by a 5687 valve equipped output stage, and both sections are powered by their own dedicated 6X5 valve rectified power supply based on the M10’s Galahad PSU. These power supplies also incorporate an ECL82 for voltage regulation and a 5651 as a voltage stabiliser.

Audio Note copper wiring, a mix of Beyshlag and AN tantalum resistors, SILMIC capacitors and Audio Note copper foil in oil signal capacitors are used throughout the circuit, along with in-house designed and manufactured output transformers which feature I-E M4 cores and copper windings, which facilitate both single ended and balanced outputs. Due to the size of the components used the M3RIAA it is housed in Audio Notes full width chassis, with a choice of brushed silver aluminium or Black fascia.

Technical Specifications:

Input Impedance: 47K Ohms - Phono
Input Sensitivity: 126mV for 1V Output
Output Impedance: <10 Ohms
Unit Weight: 16 kg
Unit Dimensions (HxWxD): 140mm x 440mm x 410mm
