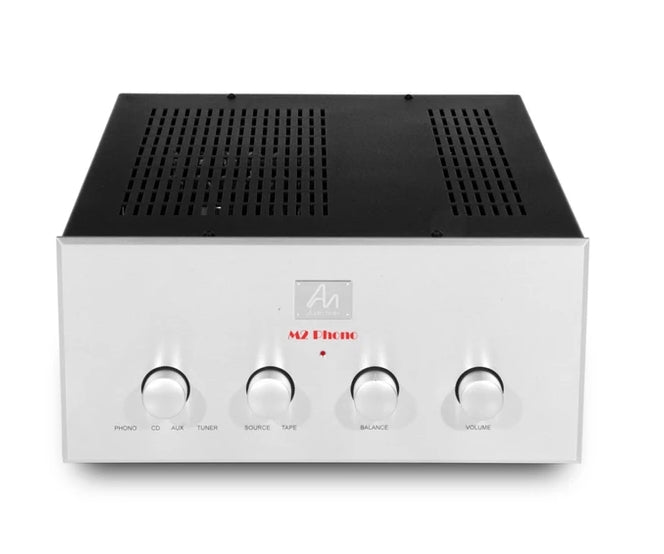

Audio Note M2 Signature Phono and Line Pre Amplifiers
Audio Note M2 Signature Phono and Line Pre Amplifiers
Regular price
£5,078.82 GBP
Regular price
Sale price
£5,078.82 GBP
Unit price
/
per
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
Audio Note items are supplied to order, please allow approximately 8 weeks for build time
The M2 Signature pre amplifier is available in two versions, the line level only version and the M2 Signature Phono which adds an internal MM phono stage. The line level stage employs a 6SN7 valve and is fed from a valve rectified and regulated supply comprising a 6X5 and ECL82. The Phono stage equipped version includes an ECC83 and 6DJ8 for its MM phono stage.
The output stage includes switchable feedback, with it on the output impedance is lowered enabling it to drive more difficult loads (i.e. power amplifiers whose input impedance is below 50K Ohms) and the overall gain drops (please see specifications below).
The Signature upgrades over the standard version include upgraded Nichrome resistors, copper foil in oil capacitors, AN-V silver internal wiring and mono stepped attenuators.
INPUT IMPEDANCE 100K Ohms Line Level inputs, 47K Ohms MM Phono input
INPUT SENSITIVITY 126mV for 1V Output
GAIN @ 1KHz: 23dB Line Feedback off, 17dB Line Feedback on. 60dB Phono Feedback off, 54dB Phono Feedback on
OUTPUT IMPEDANCE 5KOhm Feedback off, 2.5KOhm Feedback on
OUTPUT NOISE (unweighted RMS) <0.4mV Line Feedback Off, <12mV Phono Feedback on
VALVE COMPLEMENT
1 x 6SN7WGTA
1 x 6DJ8 (Phono)
1 x ECC83 (Phono)
1 x 6X5
1 x ECL82
MAX. POWER CONSUMPTION 55 Watts
UNIT WEIGHT 7 KG
UNIT DIMENSIONS 140mm (h) x 295mm (w) x 450mm (d)
INPUT SENSITIVITY 126mV for 1V Output
GAIN @ 1KHz: 23dB Line Feedback off, 17dB Line Feedback on. 60dB Phono Feedback off, 54dB Phono Feedback on
OUTPUT IMPEDANCE 5KOhm Feedback off, 2.5KOhm Feedback on
OUTPUT NOISE (unweighted RMS) <0.4mV Line Feedback Off, <12mV Phono Feedback on
VALVE COMPLEMENT
1 x 6SN7WGTA
1 x 6DJ8 (Phono)
1 x ECC83 (Phono)
1 x 6X5
1 x ECL82
MAX. POWER CONSUMPTION 55 Watts
UNIT WEIGHT 7 KG
UNIT DIMENSIONS 140mm (h) x 295mm (w) x 450mm (d)
