Audio Note M2 Pre Amplifier
Audio Note M2 Pre Amplifier
Regular price
£3,340.35 GBP
Regular price
Sale price
£3,340.35 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

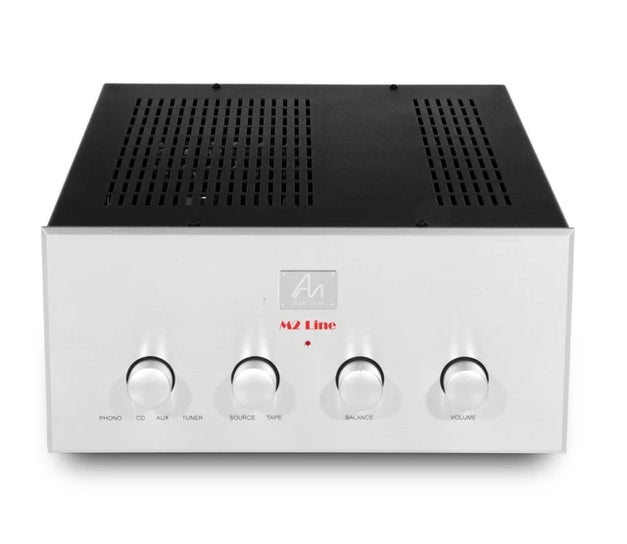

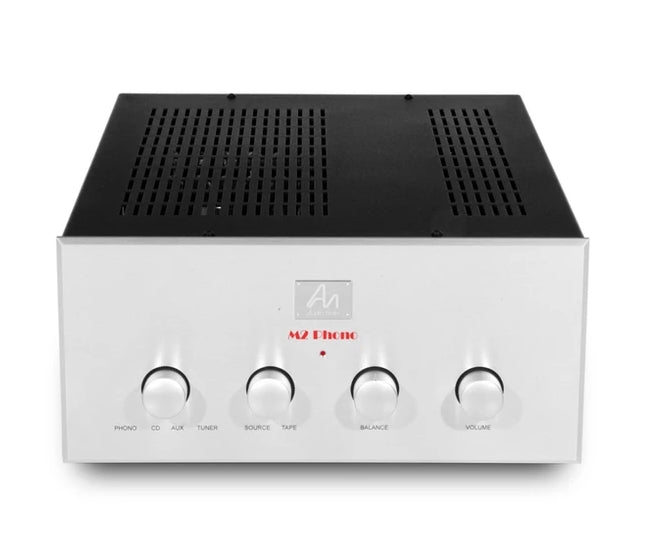

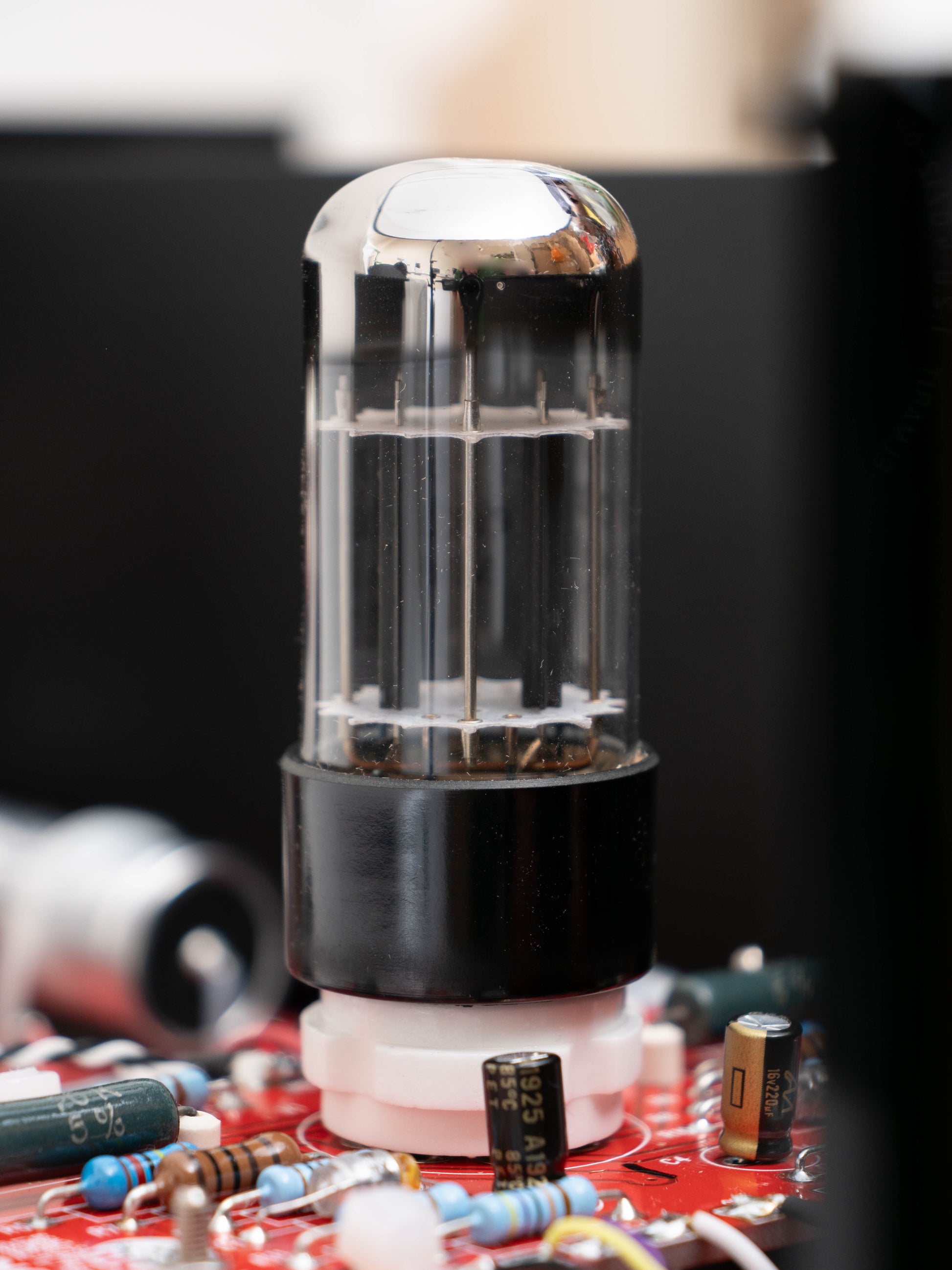

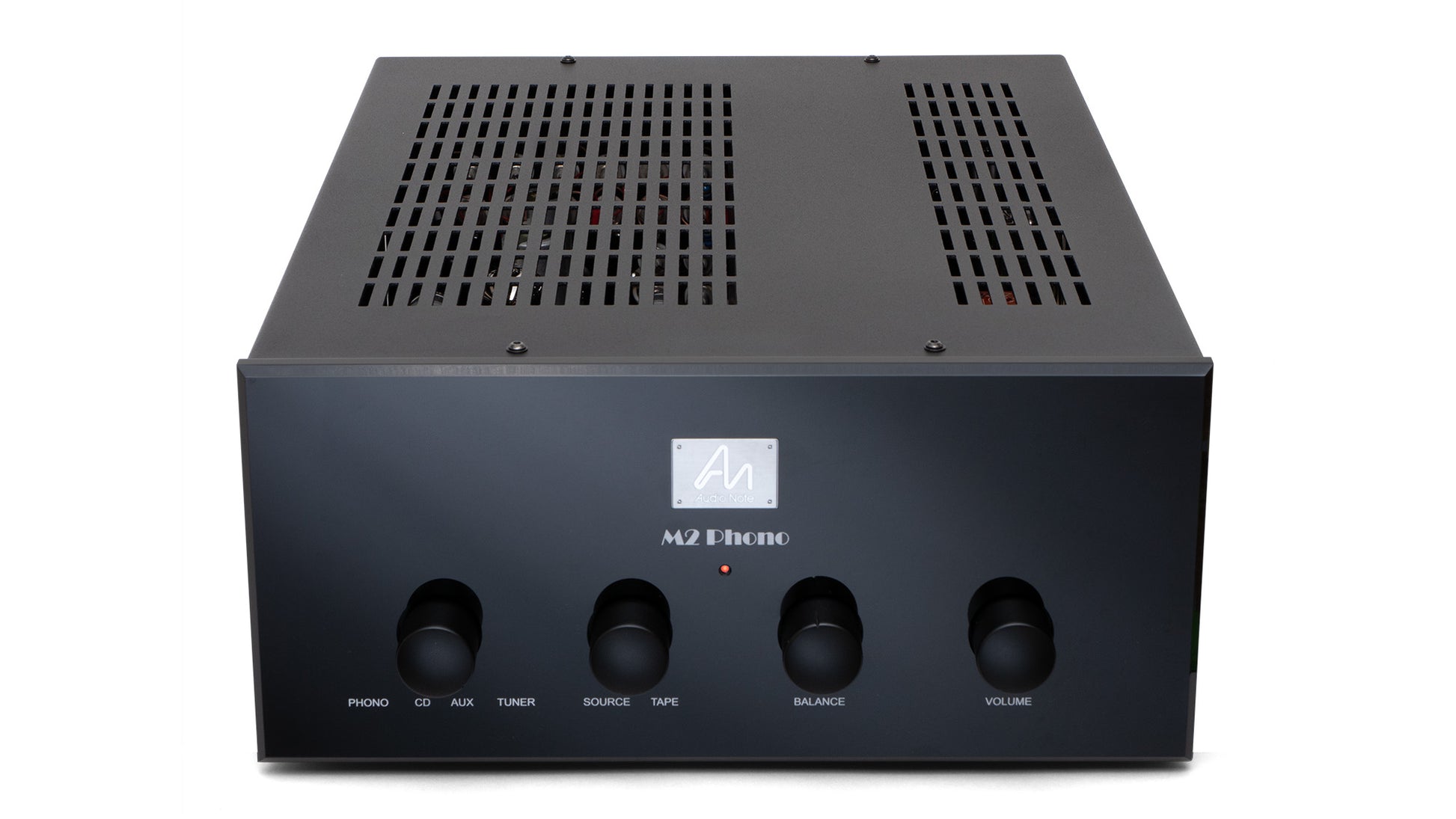

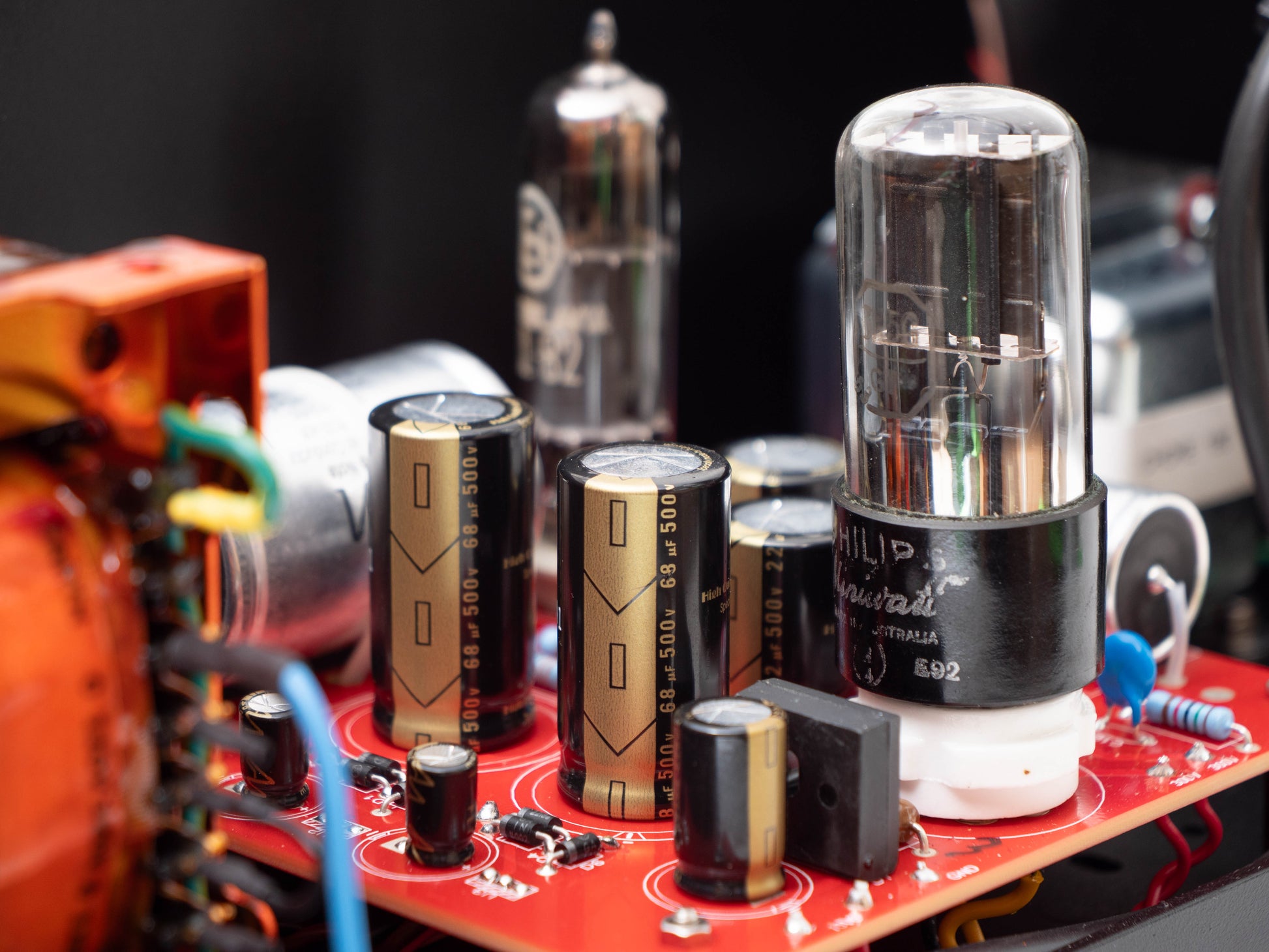

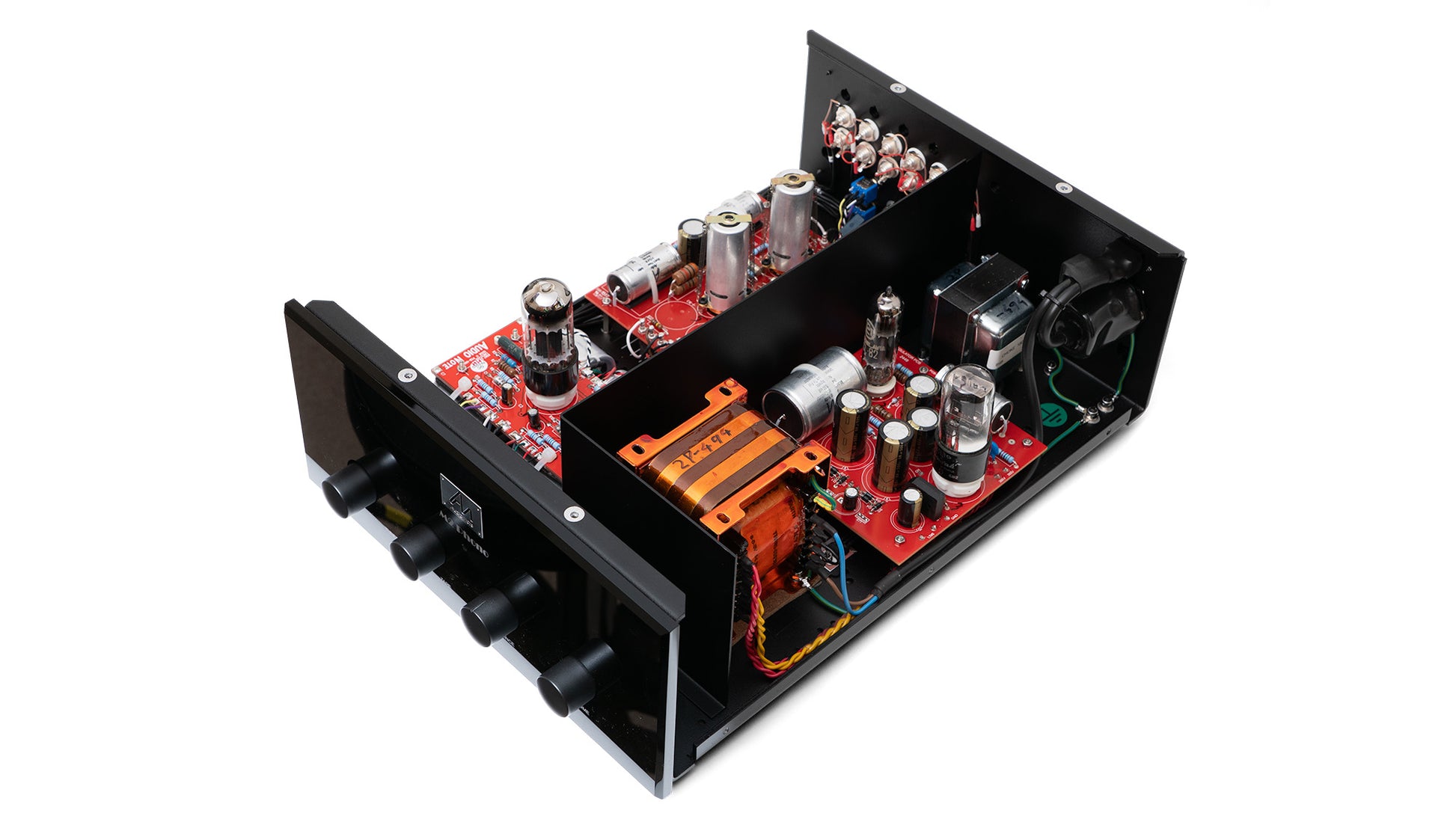

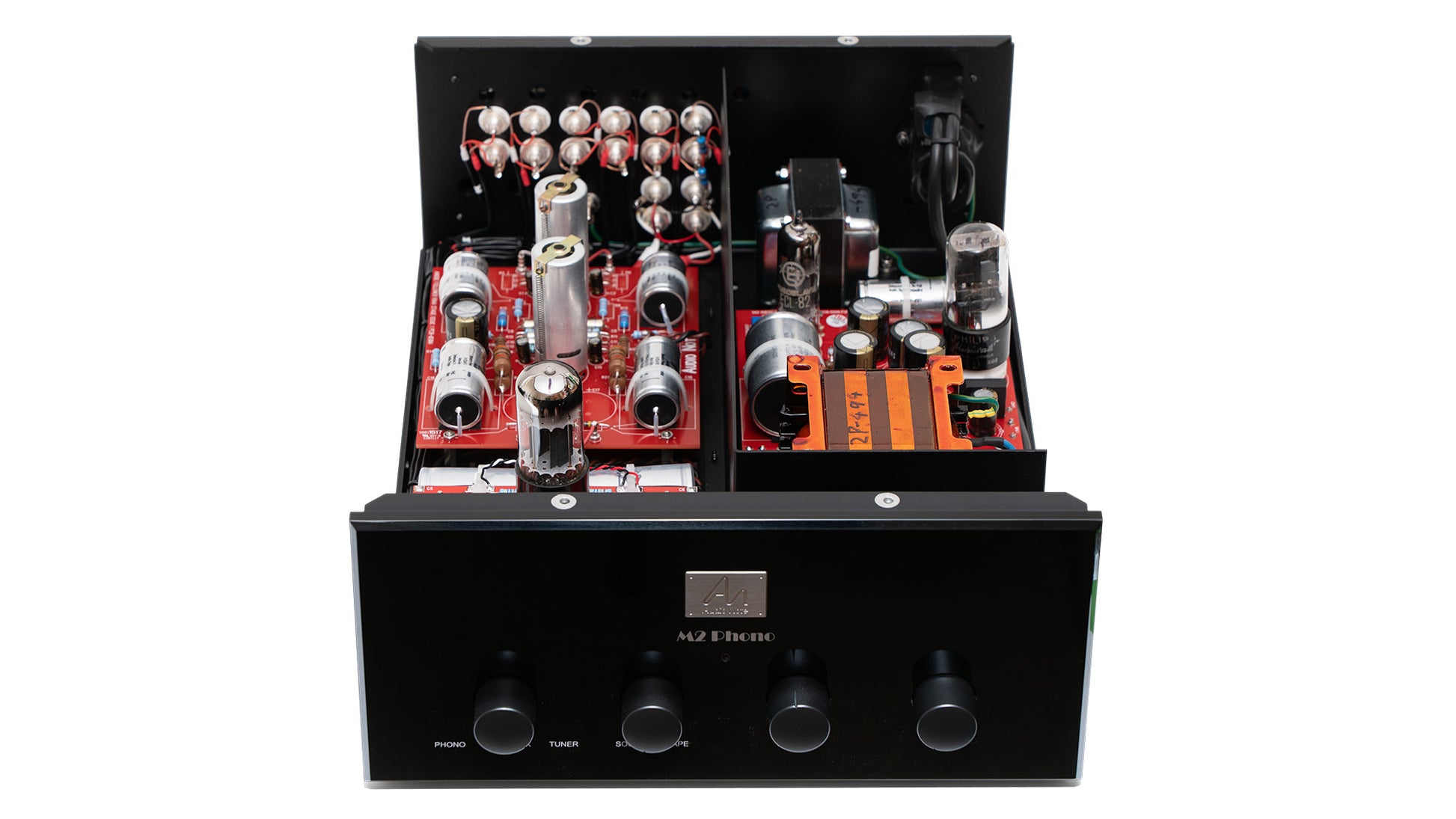

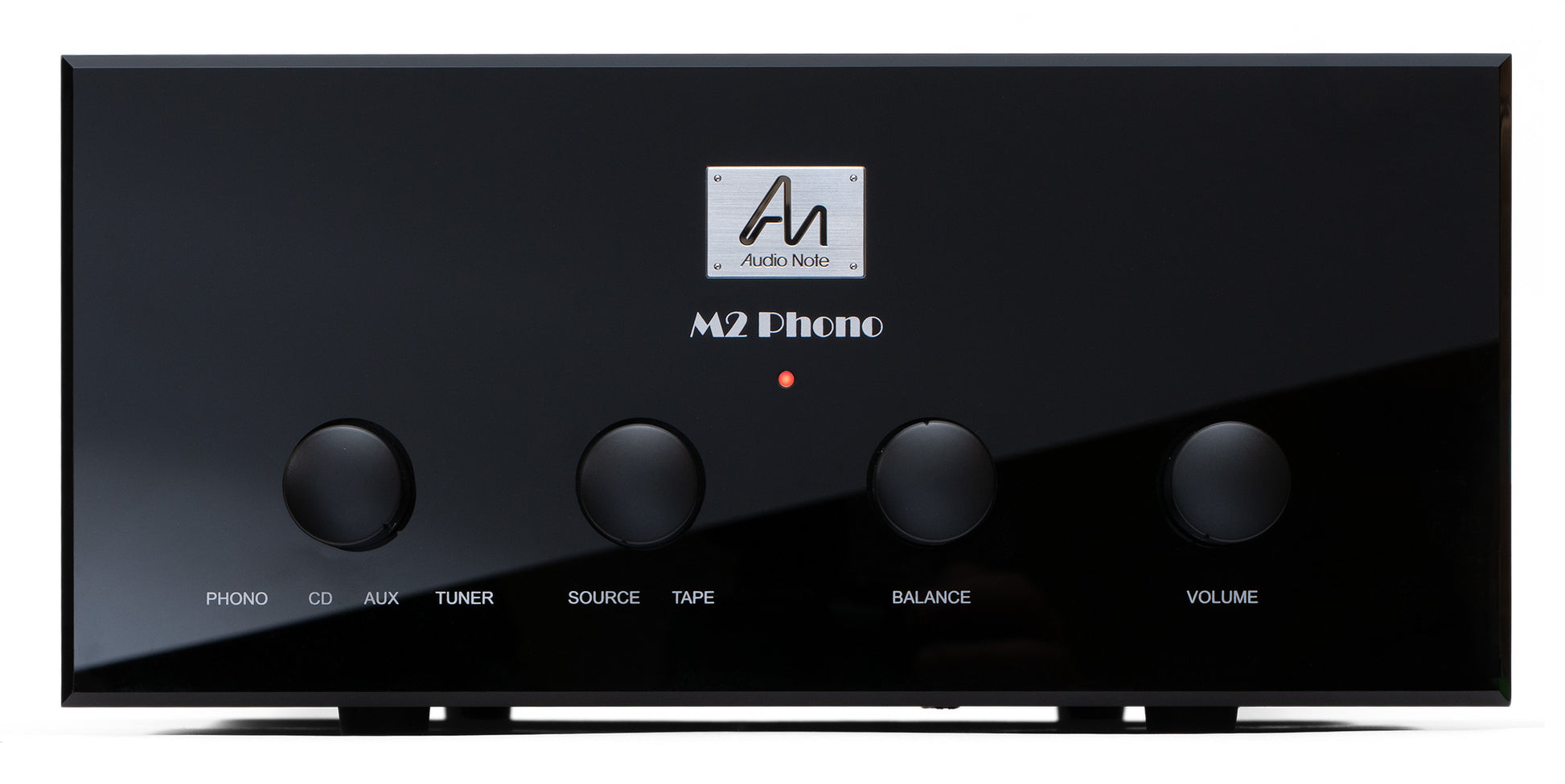

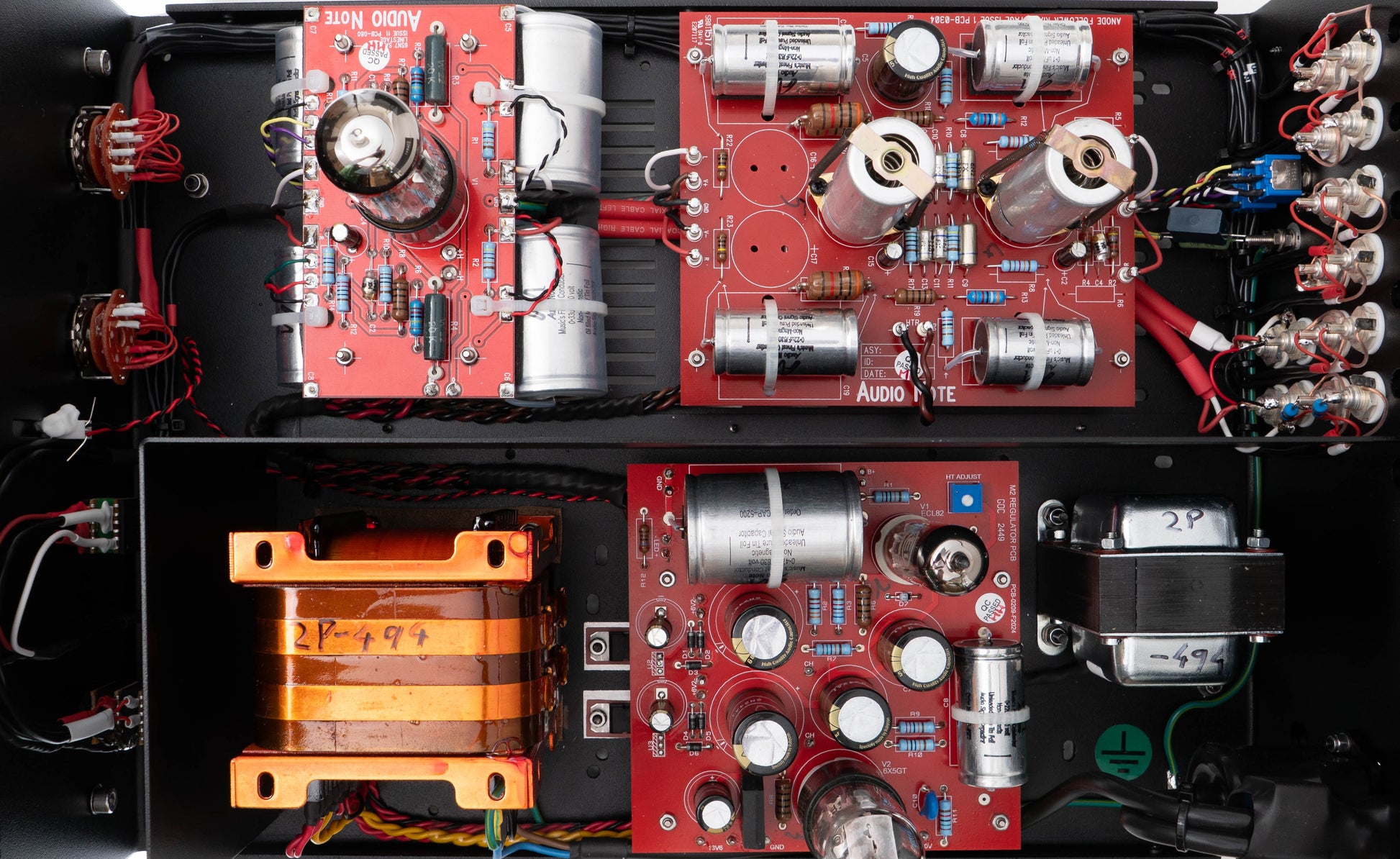

The M2 pre amplifier is available in two versions, the line level only version and the M2 Phono which adds an internal phono stage. The line level stage employs a 6SN7 valve and is fed from a valve rectified and regulated supply comprising a 6X5 and ECL82. The Phono stage equipped version includes an ECC83 and 6DJ8 for its MM phono stage. Available with silver or black acrylic fascia.
Technical Specifications:
Input Impedance: 100K Ohms - Line Level & 47K Ohms - Phono
Input Sensitivity: 126mV for 1V Output
Output Impedance: <10 Ohms
Unit Weight: 7 kg
Unit Dimensions (HxWxD): 140mm x 295mm x 450mm
Mains Input: AC 100-120V/220-240V 50/60Hz
