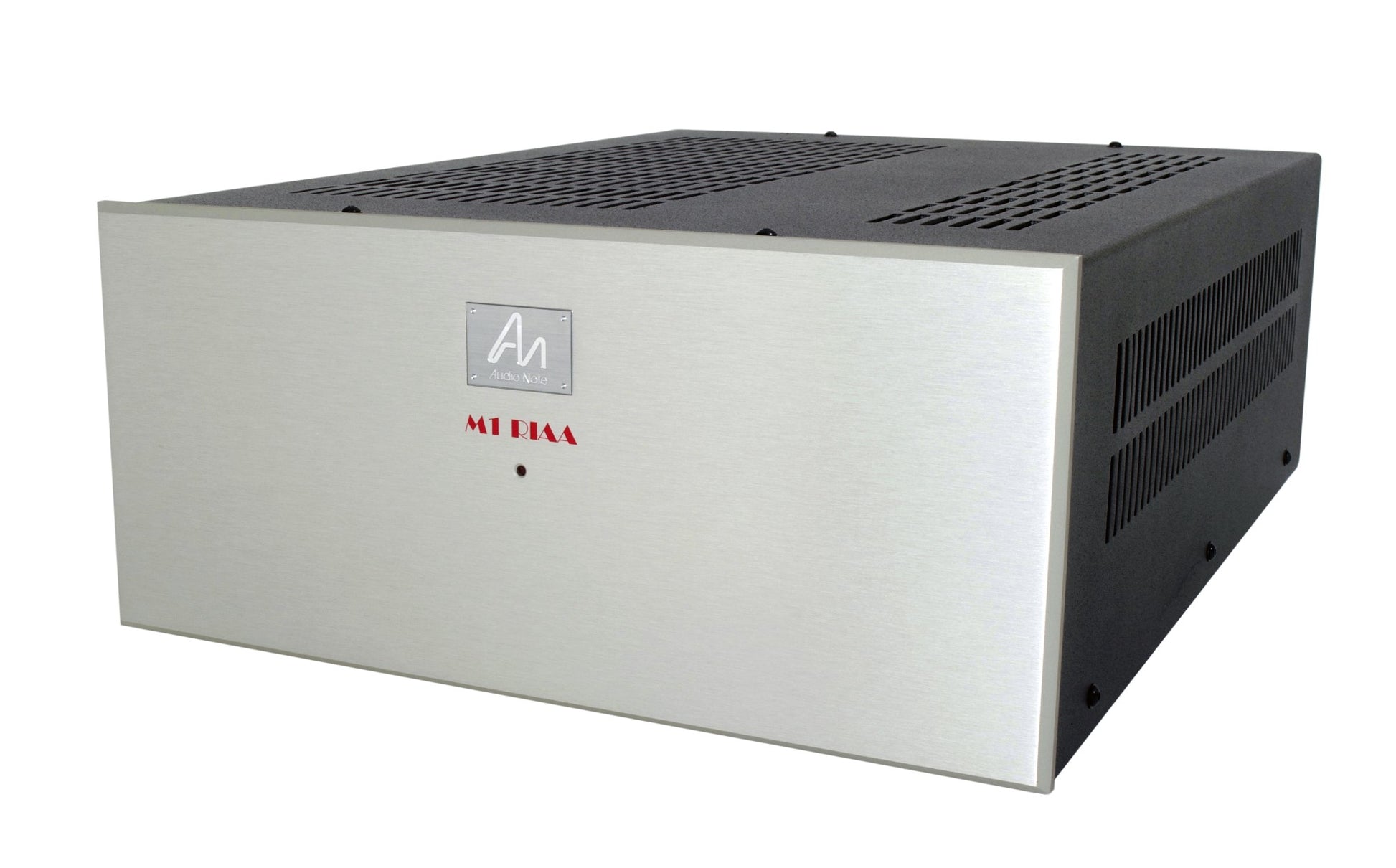

Audio Note M1 RIAA Phono Stage

Audio Note M1 RIAA Phono Stage

£1,975.48 GBP
£1,975.48 GBP
Sale Sold out
Tax included.
Finish
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are made to order, please allow approximately 8 weeks for build time*

The M1RIAA is an all valve MM phono stage utilising ECC83 and ECC88 triodes. This is the second model up in the range and the first in the 'medium' sized Audio note chassis. This chassis provides great separation and screening between the power supply and the audio stages for low noise. The output stages has the ability to add some negative feedback via a switch on the rear panel, this enables it to drive lower impedance loads when required at the expense of some output level.

Naturally this can be used with MC cartridges by adding an external step up transformer.

Technical Specifications:

Input Impedance: 100K Ohms - Line Level & 47K Ohms - Phono
Input Sensitivity: 75mV for 1V Output, Feedback Off & 150mV for 1V Output, Feedback On
Output Impedance: 5KOhm, Feedback Off & 2.5KOhm, Feedback On
Unit Weight: 7 kg
Unit Dimensions: 140mm x 295mm x 450mm
