Audio Note M1 Pre Amplifier

£1,975.48 GBP

Sale Sold out

Taxes included.

Variant Line Phono

Finish Black Aluminium

Quantity

*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

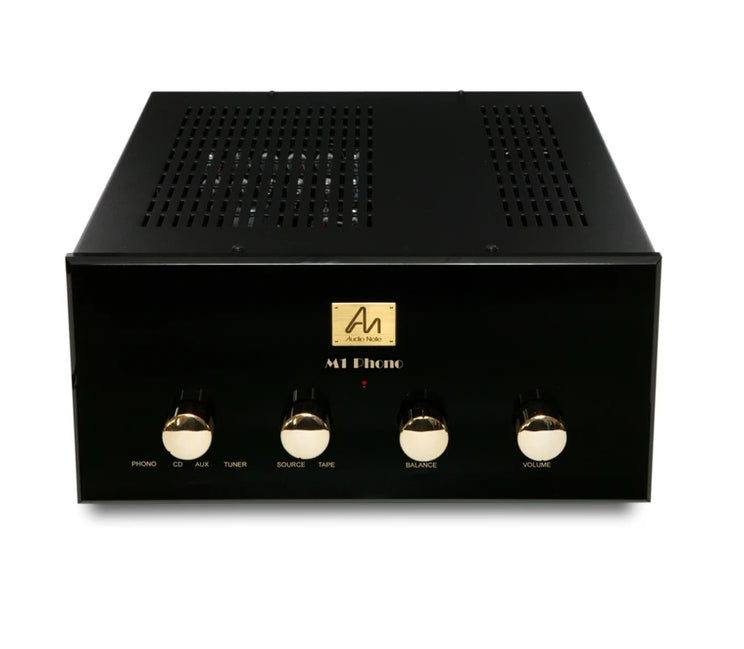

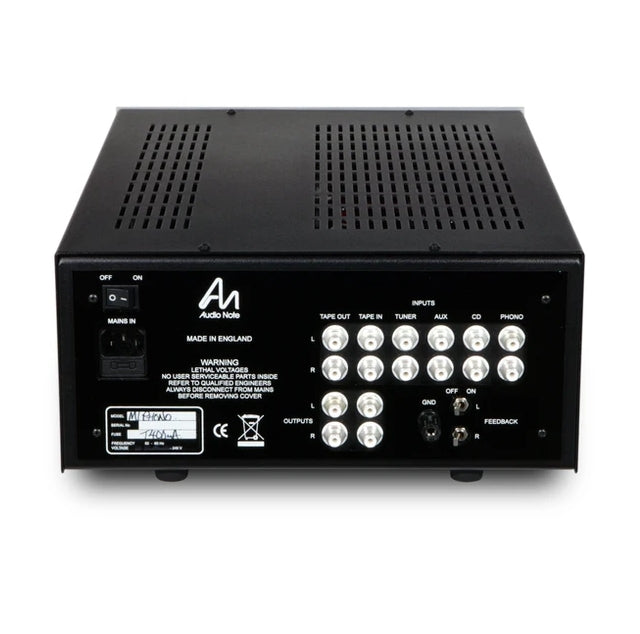

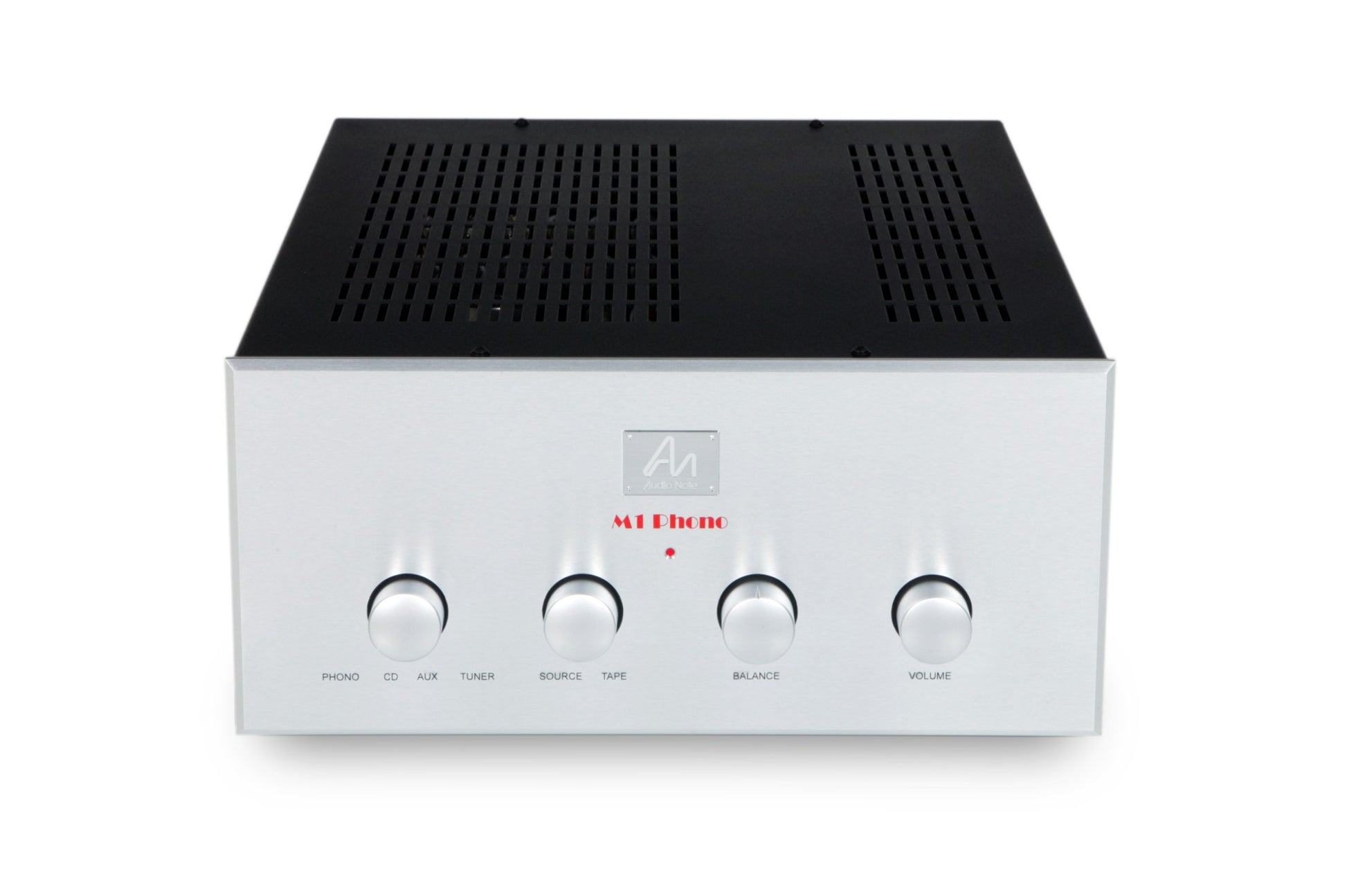

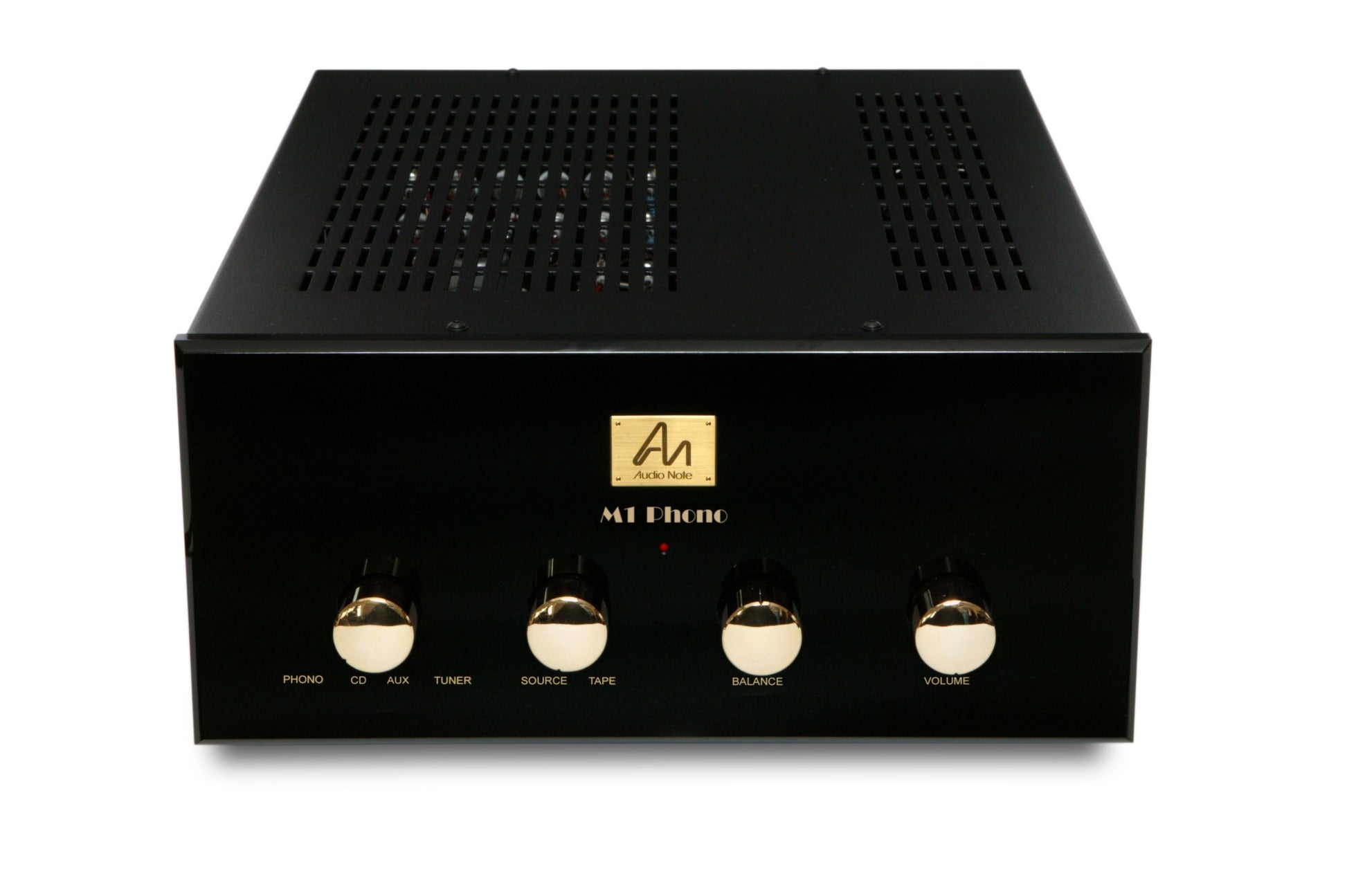

Housed in the near 2/3rds width Audio Note chassis, there are two versions of the M1 available. The M1 Line is a line level only pre amplifier featuring an ECC82 dual triode valve. It has switchable feedback on the output stage which reduces gain and lowers output impedance. The M1 Phono is the same as the M1 Line but with the addition of a high quality MM phono stage built in, which uses ECC83 and 6DJ8 valves. Available with silver or black acrylic fascia.

Technical Specifications:

Input Impedance: 100K Ohms - Line Level & 47K Ohms - Phono
Input Sensitivity: 75mV for 1V Output, Feedback Off & 150mV for 1V Output, Feedback On
Output Impedance: 5KOhm, Feedback Off & 2.5KOhm, Feedback On
Unit Weight: 7 kg
Unit Dimensions: 140mm x 295mm x 450mm
Mains Input: AC 100-120V / 220-240V 50/60Hz
