Audio Note Kegon Mono Block Power Amplifiers
Audio Note Kegon Mono Block Power Amplifiers
Regular price
£86,453.14 GBP
Regular price
Sale price
£86,453.14 GBP
Unit price
/
per
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

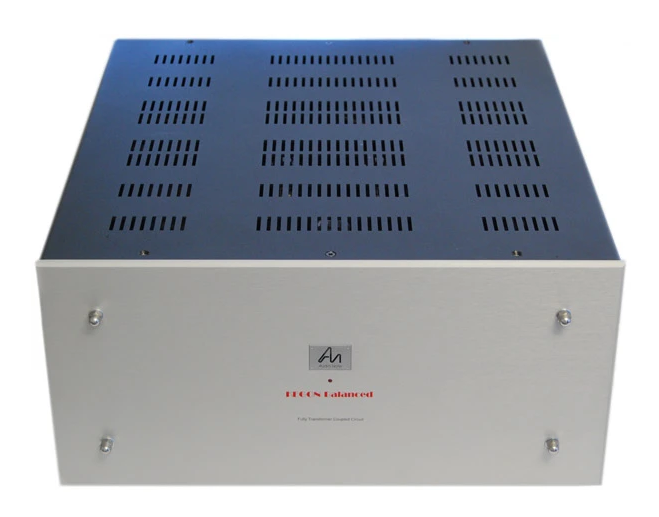

The Kegons are monoblock power amplifiers using a pair of 300B directly heated triodes in parallel single ended configuration. They are currently the highest level amplifier that Audio Note make where the valves are contained completely within casing, making them ideal for uses who do not want exposed tubes. As you'd expect of an amplifier at this level the component quality is exceptional, including fully silver wound audio transformers.
Three different versions are produced, the standard gain and low gain model detailed here and the balanced, which due to its higher price and design difference has its own page.
The low gain version is ideal for users with very high efficiency speakers and/or a high gain pre amplifier, where noise may become an issue.
Technical Specifications:
Input Impedance: 100KOhm
Input Sensitivity: 250mV for full output (standard gain)
Maximum Output: 18 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5U4G (1 per chassis), 4 x 300B (2 per chassis) & 2 x 5692 (1 per chassis)
Unit Weight: 20kg (per amplifier)
Unit Dimensions (HxWxD): 195mm x 205mm x 500mm (per amplifier)
Max. Power Consumption: 200 Watts
Input Sensitivity: 250mV for full output (standard gain)
Maximum Output: 18 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5U4G (1 per chassis), 4 x 300B (2 per chassis) & 2 x 5692 (1 per chassis)
Unit Weight: 20kg (per amplifier)
Unit Dimensions (HxWxD): 195mm x 205mm x 500mm (per amplifier)
Max. Power Consumption: 200 Watts
