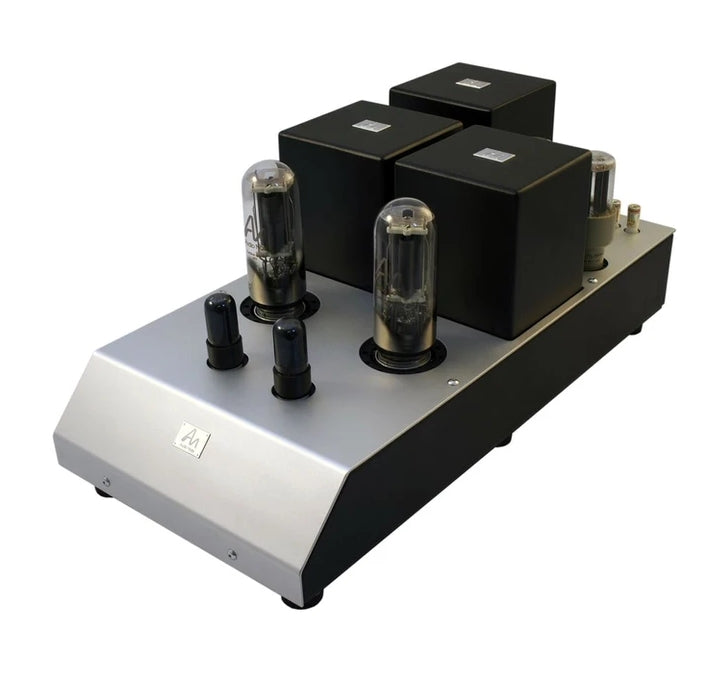

Audio Note Jinro Shochu Stereo Power Amplifier
Audio Note Jinro Shochu Stereo Power Amplifier
Regular price
£27,147.12 GBP
Regular price
Sale price
£27,147.12 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

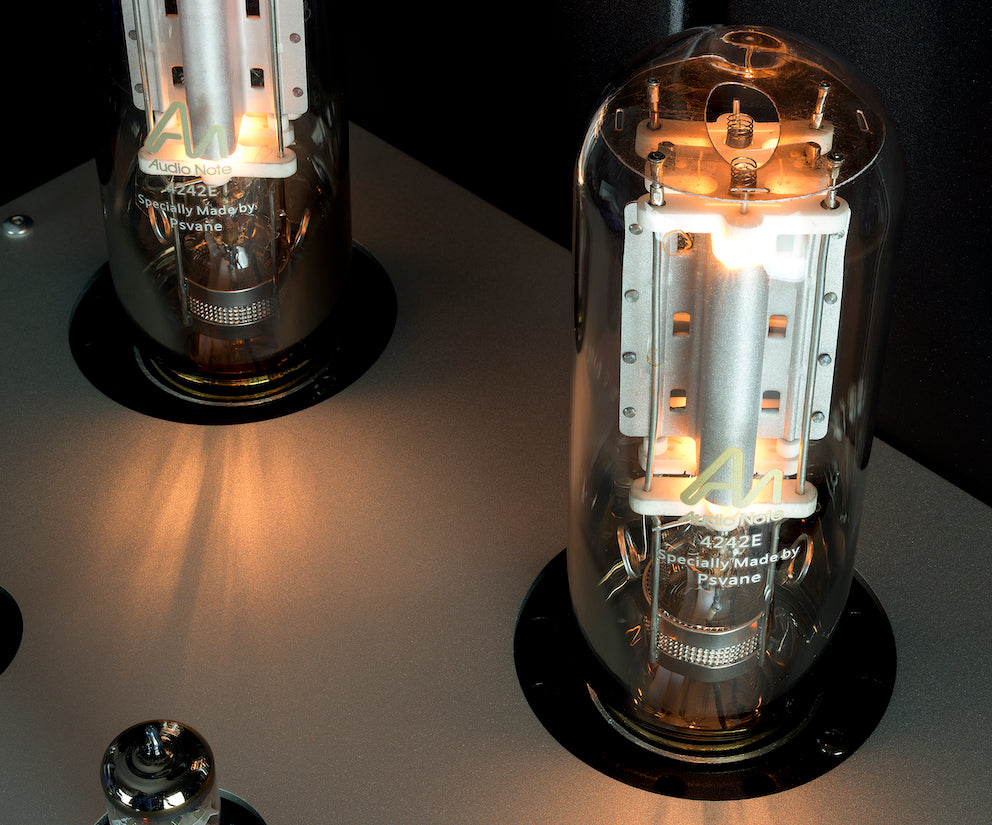

The TOMEI Kensei Stereo Power Amplifier sites between the JINRO Shochu and the ONGAKU Kensei, the circuit is the same but the components grade spans the gap between those two models. So the heart of the amplifier is a 211 valve used in a single ended circuit, with a valve rectified and choke smoothed power supply.
The main difference between it and its brothers is the audio transformers use copper primary windings with silver secondary windings, along with Tantalum resistors and Audio Note Foil in oil capacitors.
Technical Specifications:
Input Impedance: 2.4 KOhm, line level
Input Sensitivity: 450mV for full output
Maximum Output: 20 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4WGB, 2 x 211 & 2 x 6V6
Unit Weight: 38kg
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm
Max. Power Consumption: 200 Watts
Input Sensitivity: 450mV for full output
Maximum Output: 20 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 2 x 5R4WGB, 2 x 211 & 2 x 6V6
Unit Weight: 38kg
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm
Max. Power Consumption: 200 Watts
