Audio Note I Zero Integrated Amplifier

Audio Note I Zero Integrated Amplifier

Regular price £2,155.06 GBP
Regular price Sale price £2,155.06 GBP
Sale Sold out
Tax included.
Finish
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

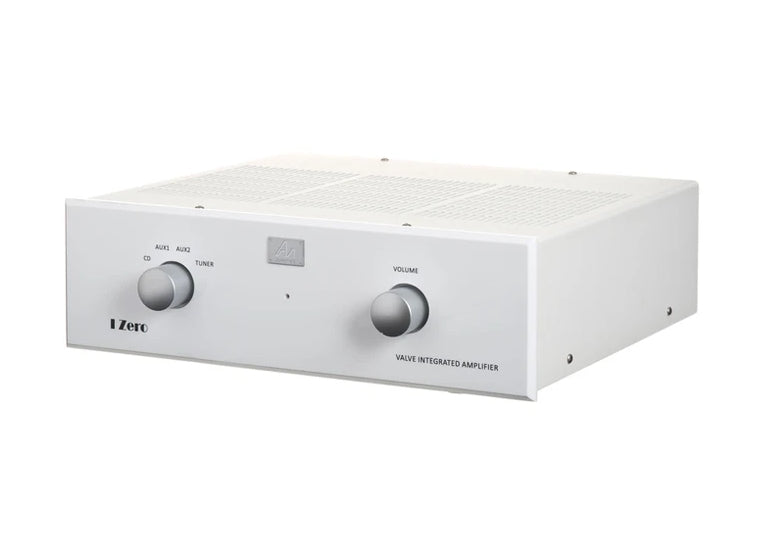

The I Zero is a very compact integrated valve amplifier, housed in the same chassis as other models in the Zero range (and therefore also available in the same great finish options too). This product is excellent for anyone that wants a great valve amplifier but doesn't have the space for anything larger.

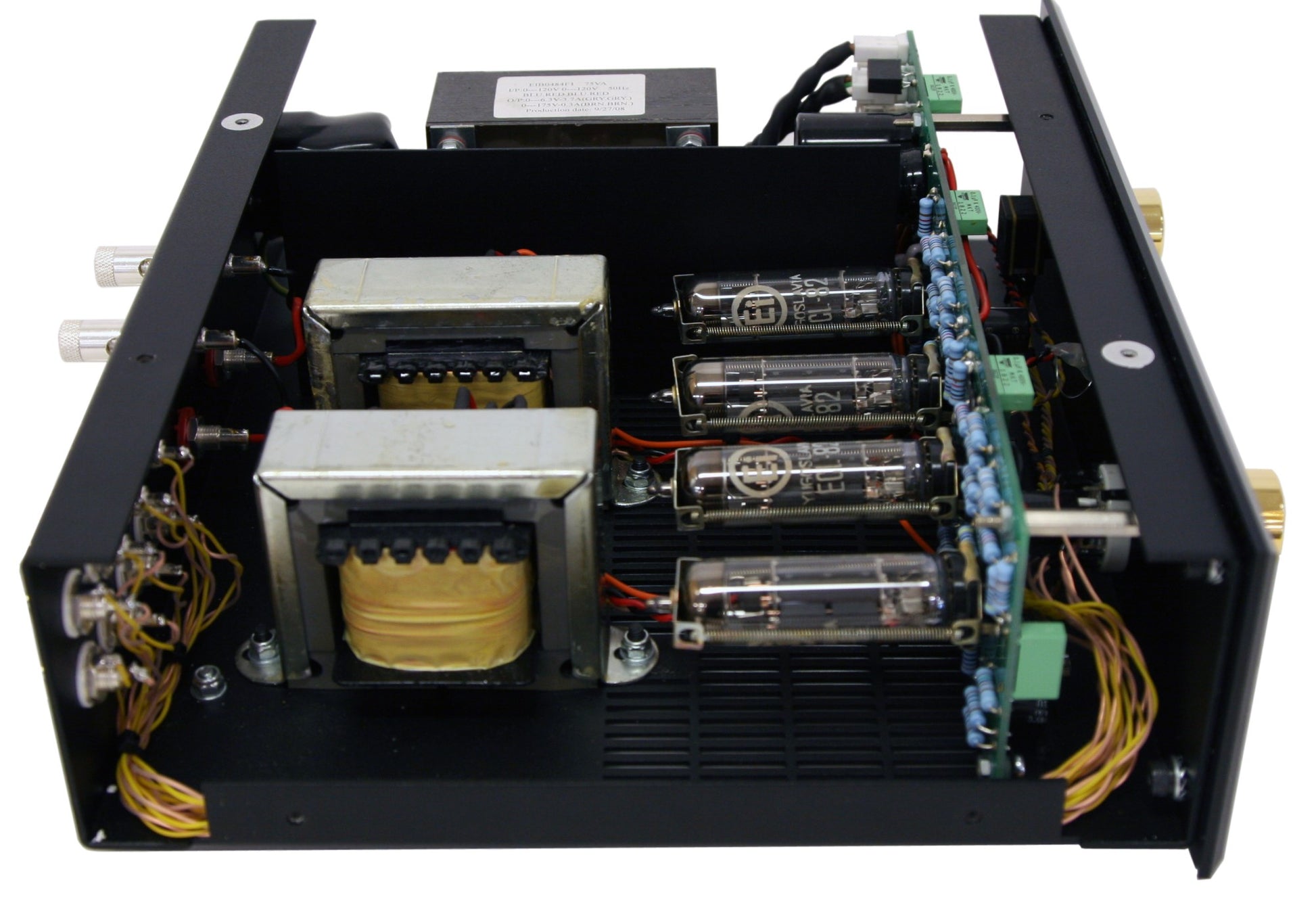

It uses the ECL82 valve, a really useful model that contains both a triode and a pentode in the one glass envelope. This audio valve was designed so that in its simplest form it could be used as all the active elements you need to make a mono amplifier in just one valve! So it's a great space saver and very efficient from a design point of view. Here four are used in with the pentode sections working in push pull to produce more power.
This is the ideal amplifier for anyone that wants a small amplifier without exposed valves who values the excellent sound quality it can produce.

SPECIFICATIONS

-Inputs: 4 Line Level

-Input Impedance: 100 K Ohm

-Input Sensitivity: 400mV for full output

-Maximum Output: 8 Watt RMS per channel into 6 ohm load

-Channel Balance: +/-0.3dB

-Valve Complement: 4 x ECL82

-Unit Weight: 7 kg

-Unit Dimensions (HxWxD): 96mm x 300mm x 310mm

-Max. Power Consumption: 75W
