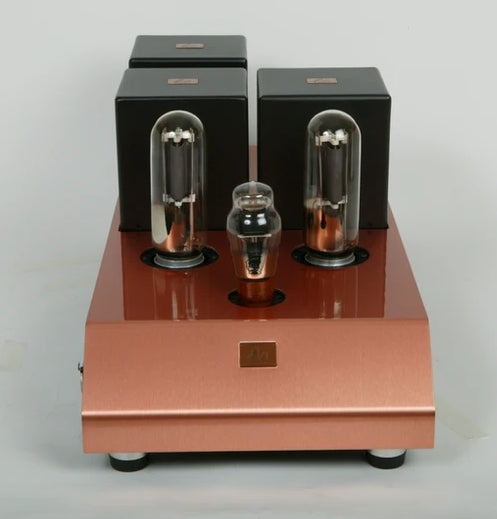

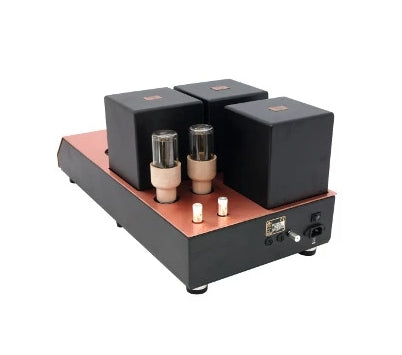

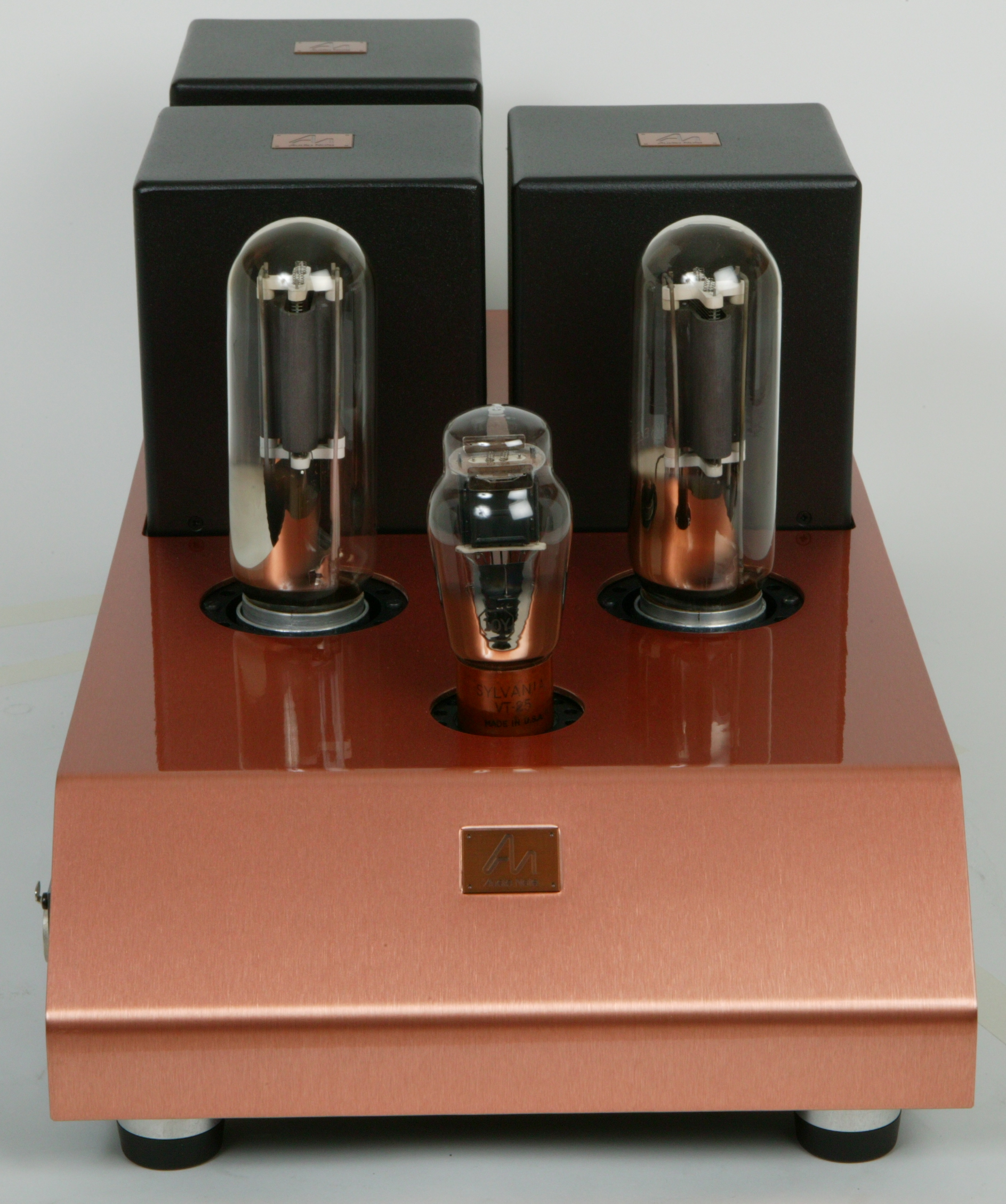

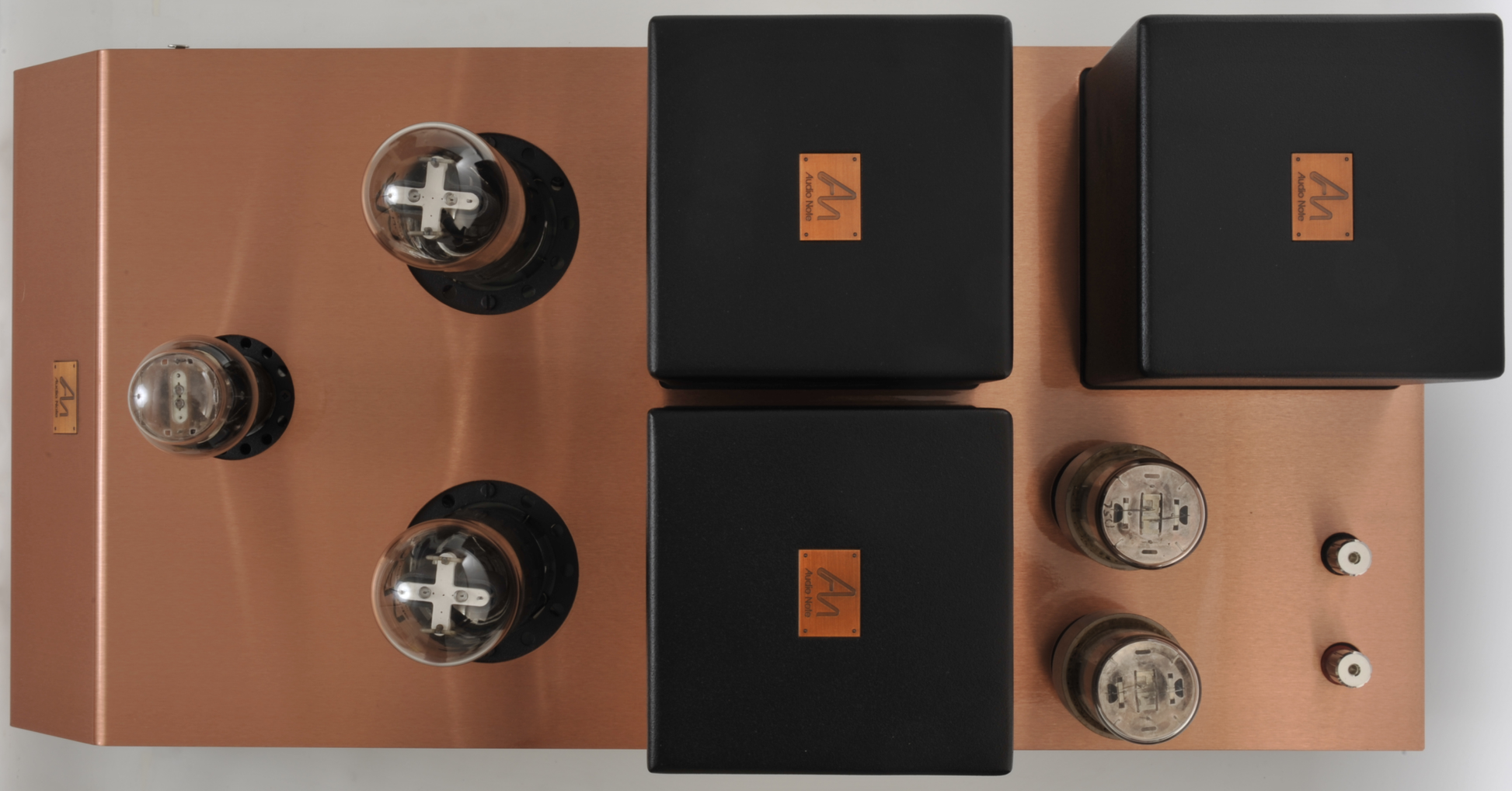

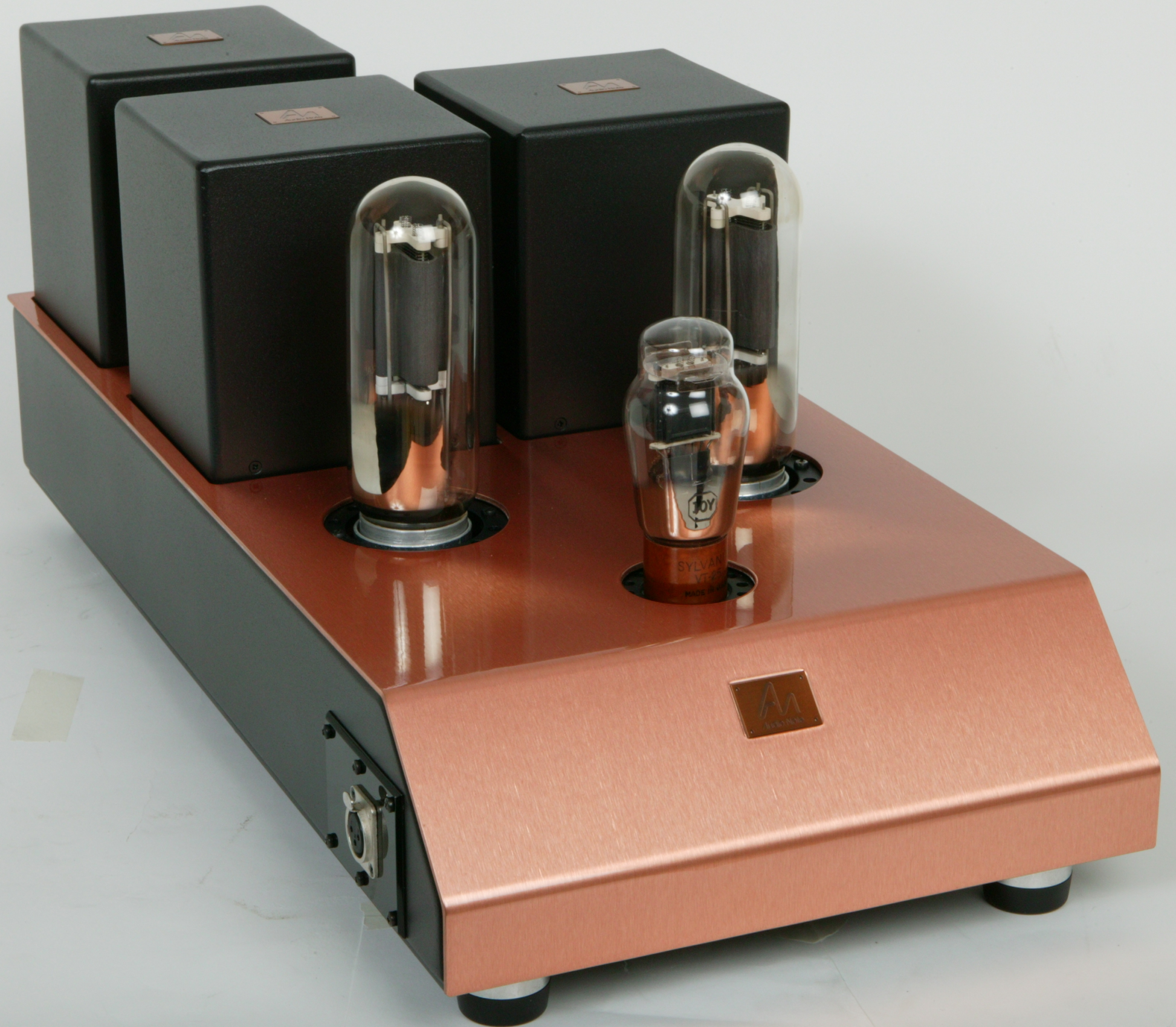

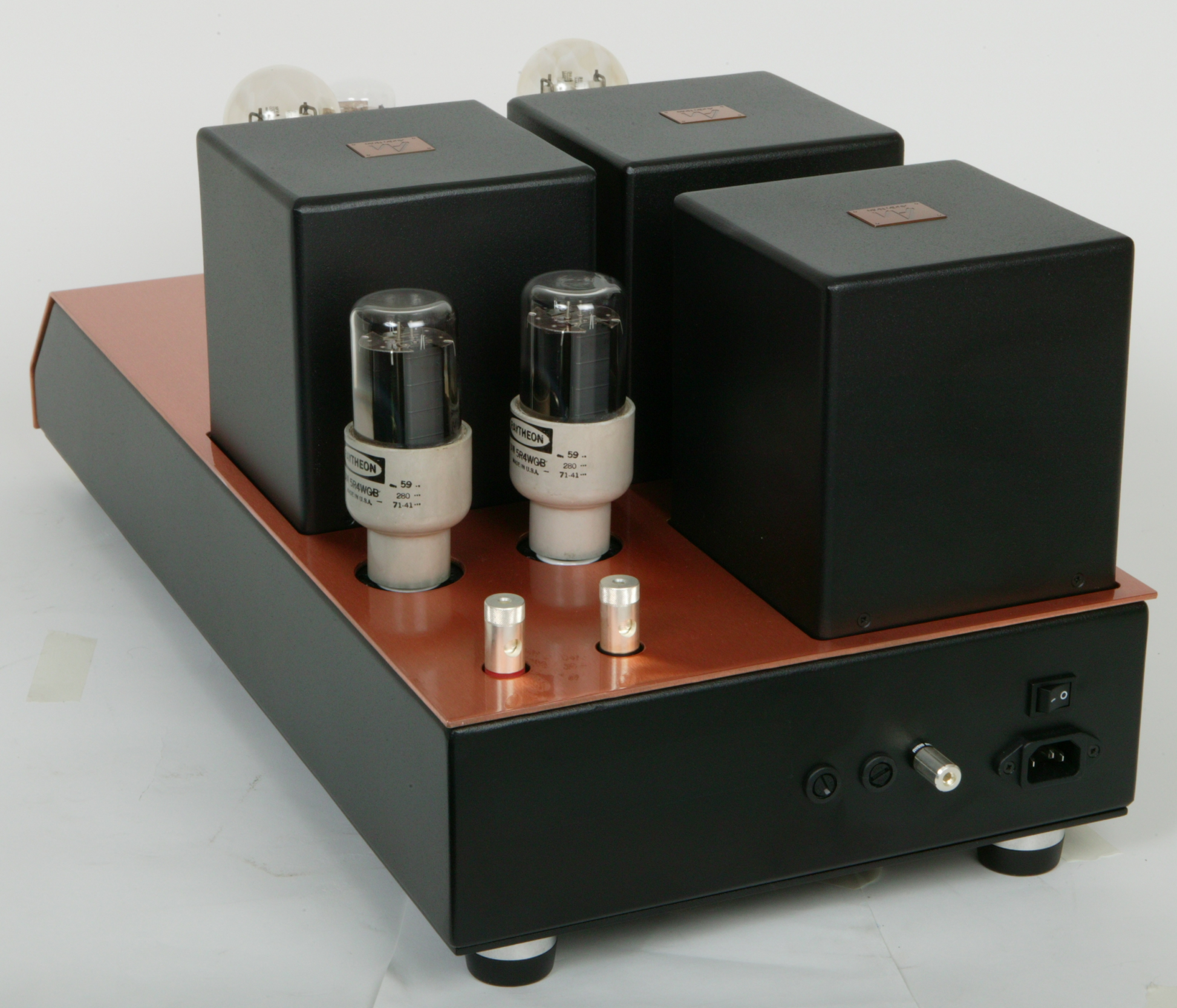

Audio Note Gaku-On Monoblock Power Amplifiers

Audio Note Gaku-On Monoblock Power Amplifiers

Regular price £230,541.70 GBP
Regular price Sale price £230,541.70 GBP
Sale Sold out
Tax included.
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

The Gaku-On is the pinnacle of the Audio Note power amplifier range. These monoblock amplifiers use New Old Stock 211 output valves in parallel single ended configuration which produce 45 watts per channel. The signal path contains no coupling capacitors, instead each stage has its own silver wired transformer, three in total per channel. The input valve is a NOS VT25/10Y and as you’d expect the component quality is no compromise, Audio Notes largest Tantalum resistors and Black Gate capacitors are used throughout. The choke smoothed power supply is rectified by two NOS 5R4WGB rectifiers.

Technical Specifications:

Input Impedance: 2.4 KOhm, XLR / Balanced line level
Maximum Output: 45 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 4 x 5R4WGB (2 per chassis), 4 x 211/VT4-C (2 per chassis) & 2 x VT25/10Y (1 per chassis)
Unit Weight: 27.5 kg (per amplifier)
Unit Dimensions (HxWxD): 305 x 305mm x 640mm (per amplifier)
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 200 Watts
