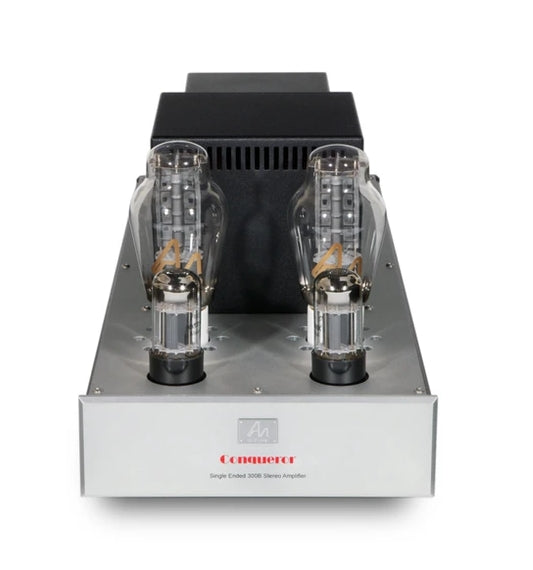

Audio Note Conqueror Power Amplifier
Audio Note Conqueror Power Amplifier
Regular price
£0.00 GBP
Regular price
Sale price
£0.00 GBP
Unit price
/
per
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

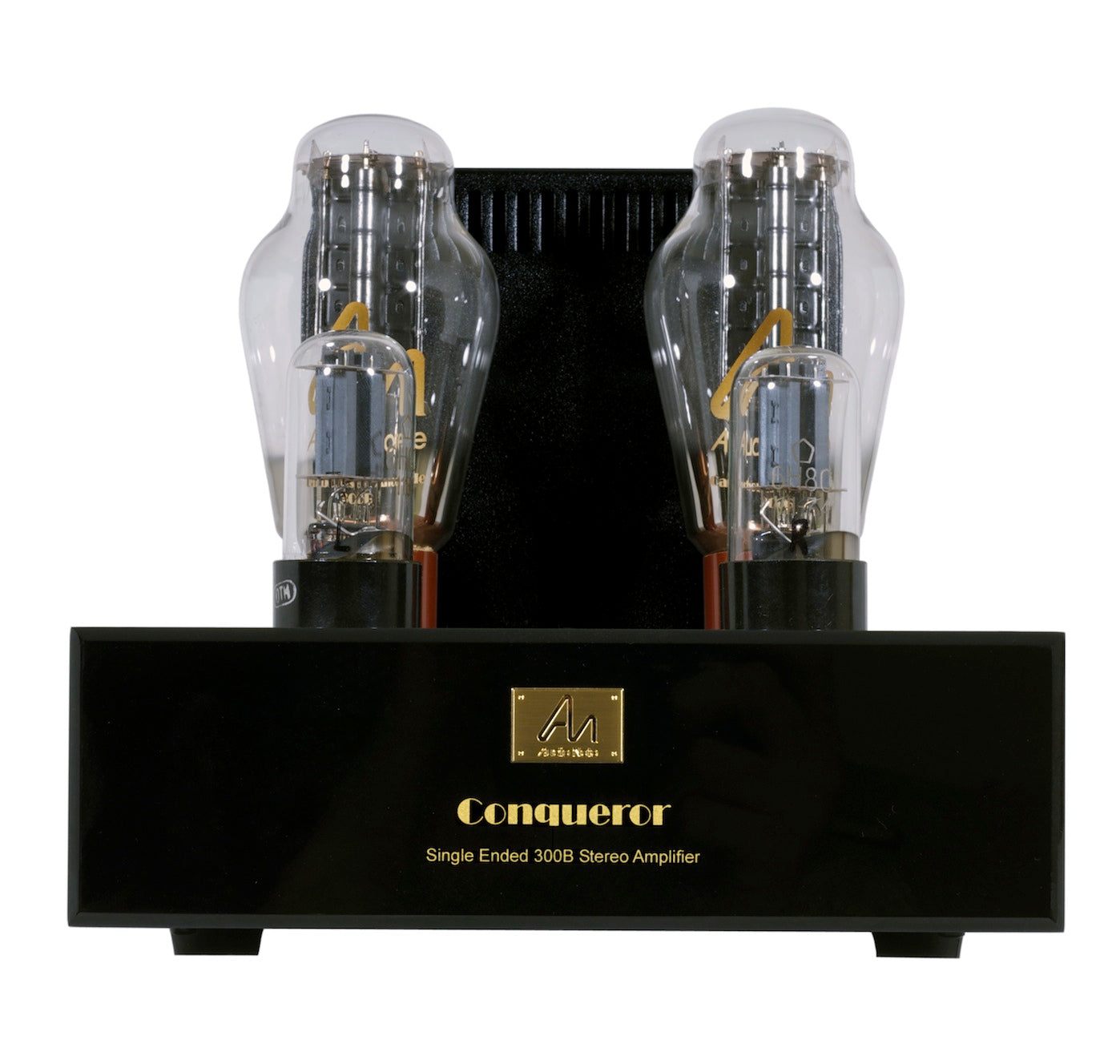

The Conqueror is a classic Audio Note design, which follows many of the criteria that they have always championed. It features a Copper topped chassis and a zero feedback single ended 300B output stage which is driven via a paper in oil capacitor coupled 6SN7 (or 6J5 in the low gain model). The power supply uses choke smoothed valve rectification (a 5U4G). The result is an amplifier that sounds tonally accurate with great dynamics and refinement which particularly excels with high efficiency speakers. The low gain version offers improved sound quality and lower noise, especially useful when using higher efficiency speakers. The amplifier is also available as a Silver and Silver Signature model, both of which feature improved components and sound quality.
It has been specifically engineered for sonic performance rather than technical specification, and fulfils all Audio Note (UK) Level 3 criteria:
Pure Class A operation, Zero Negative Feedback, Single Ended Output Stage, Valve Rectification, Directly Heated Triode operation & Materials and component quality.
Technical Specifications:
Input Impedance: 100 KOhm, line level
Input Sensitivity: 250mV for full output
Maximum Output: 8 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Component: 2 x 6SN7 (or) 2 x 6J5 (Low Gain), 2 x 300B & 1 x 5U4G
Unit Weight: 20kg
Unit Dimensions (HxWxD): 195mm x 205mm x 500mm
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 270 VA
Input Sensitivity: 250mV for full output
Maximum Output: 8 Watts RMS per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Component: 2 x 6SN7 (or) 2 x 6J5 (Low Gain), 2 x 300B & 1 x 5U4G
Unit Weight: 20kg
Unit Dimensions (HxWxD): 195mm x 205mm x 500mm
Mains Input: AC 100-120V/220-240V 50/60Hz
Max. Power Consumption: 270 VA
