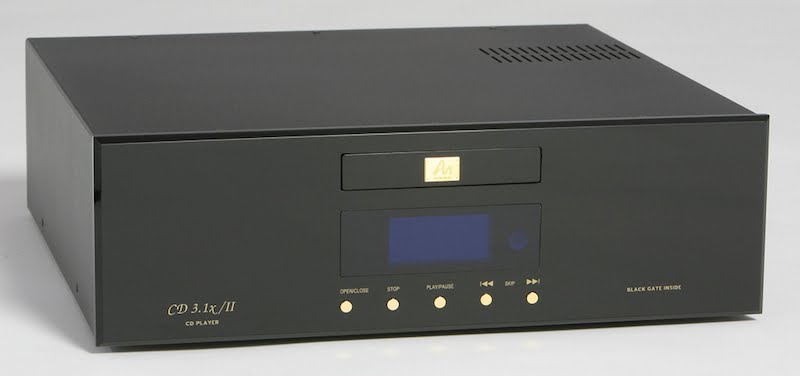

Audio Note CD 3.1x/II CD Player

Audio Note CD 3.1x/II CD Player

Regular price £5,926.43 GBP
Regular price Sale price £5,926.43 GBP
Sale Sold out
Tax included.
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

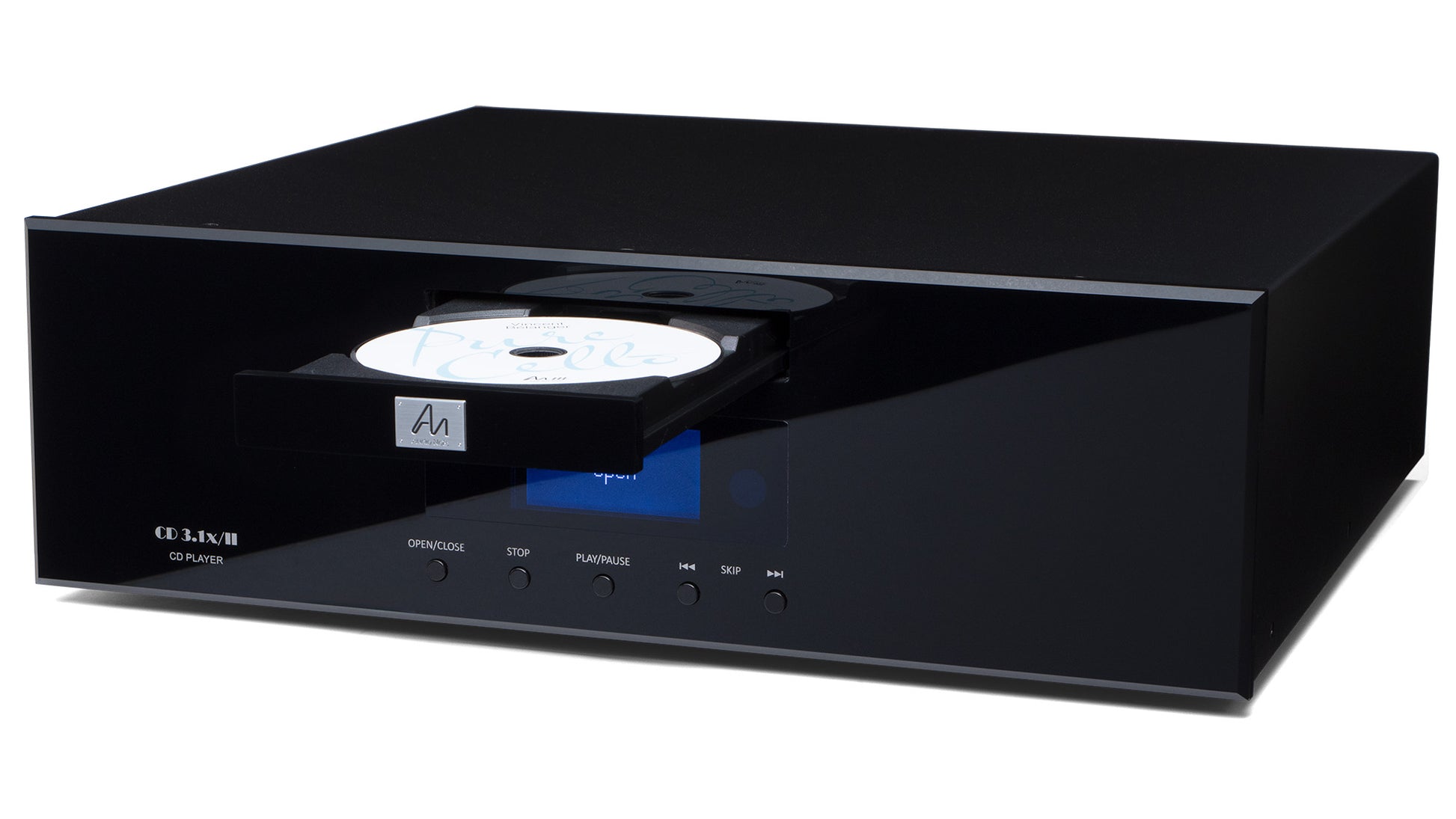

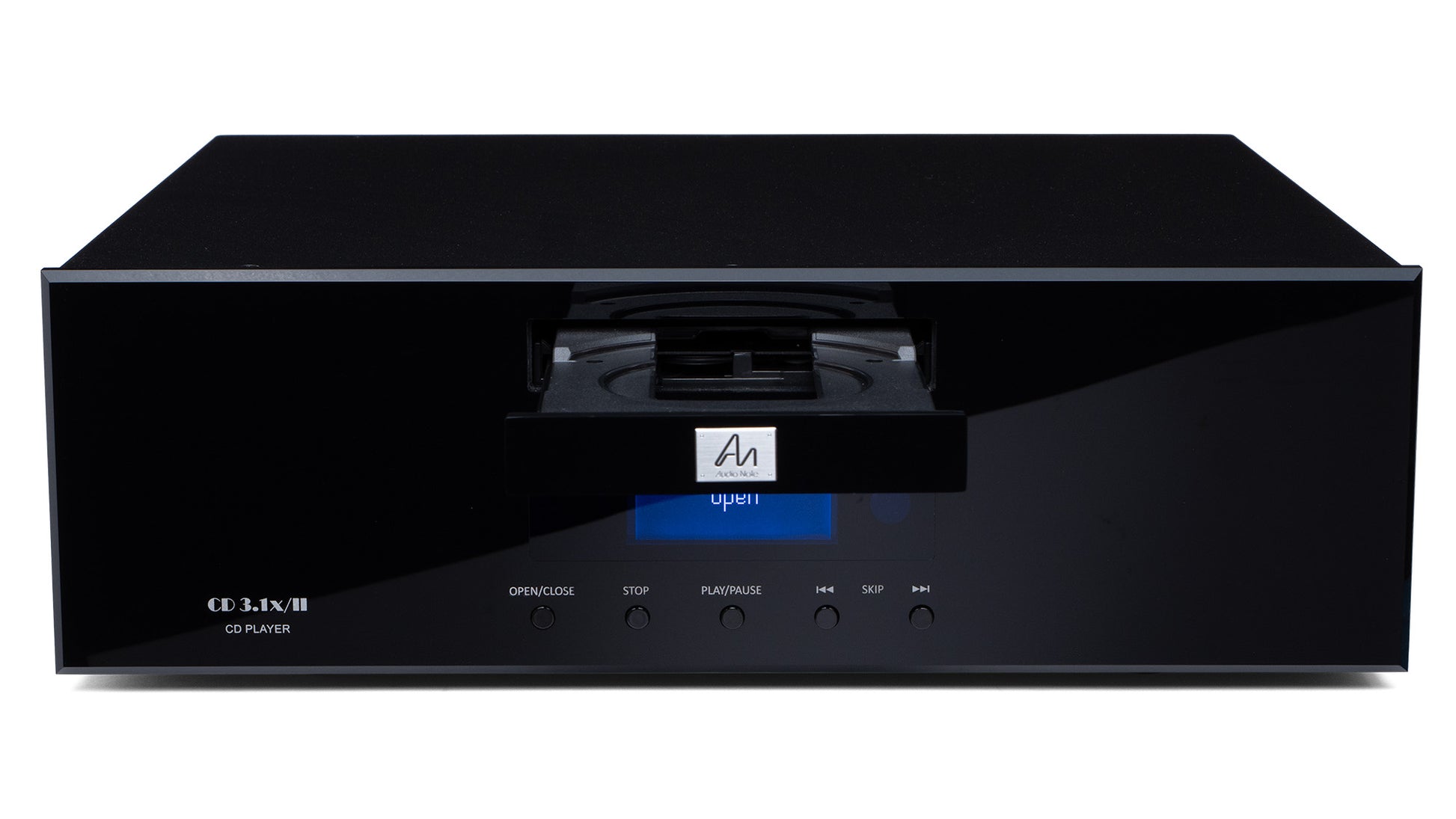

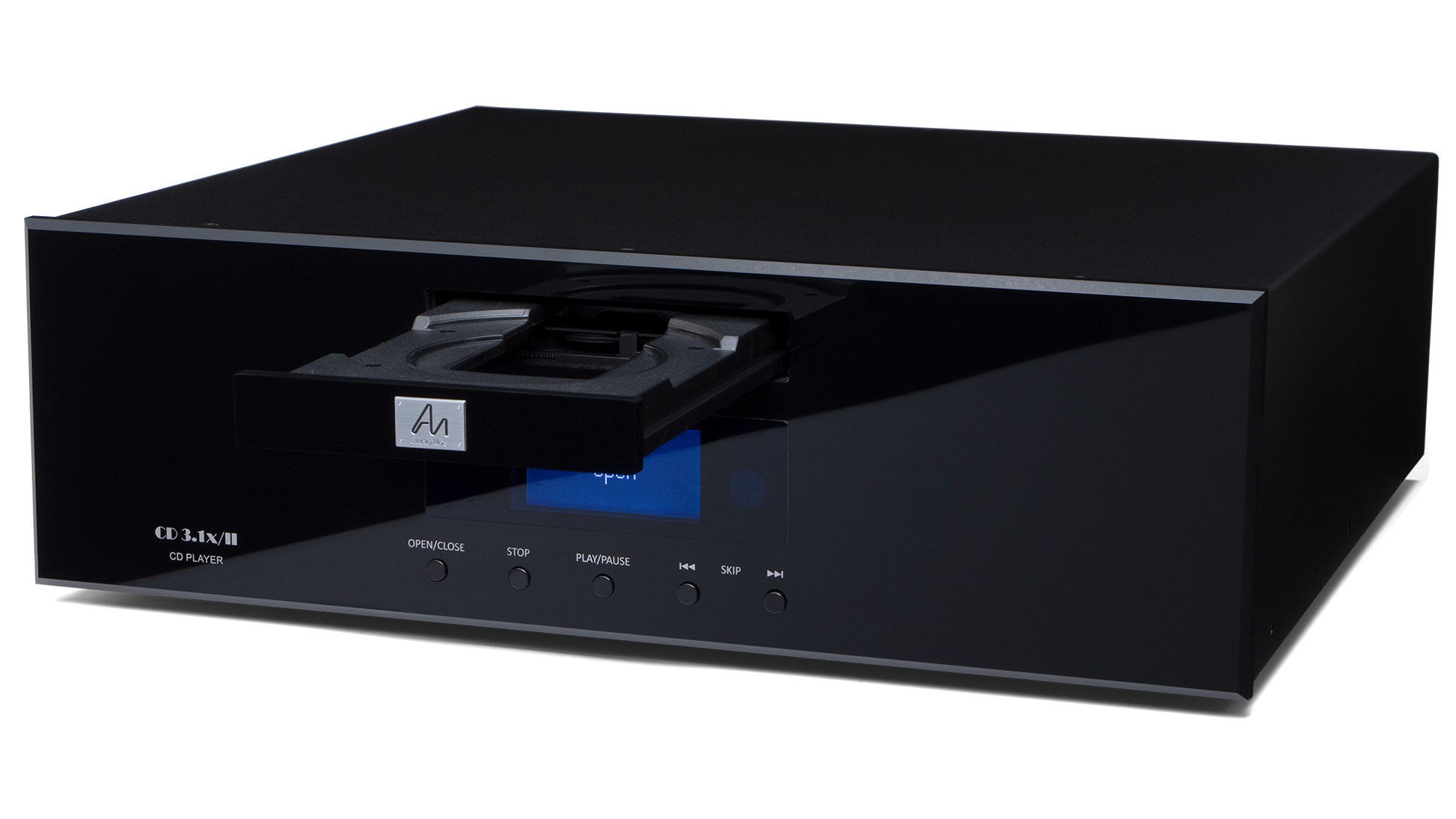

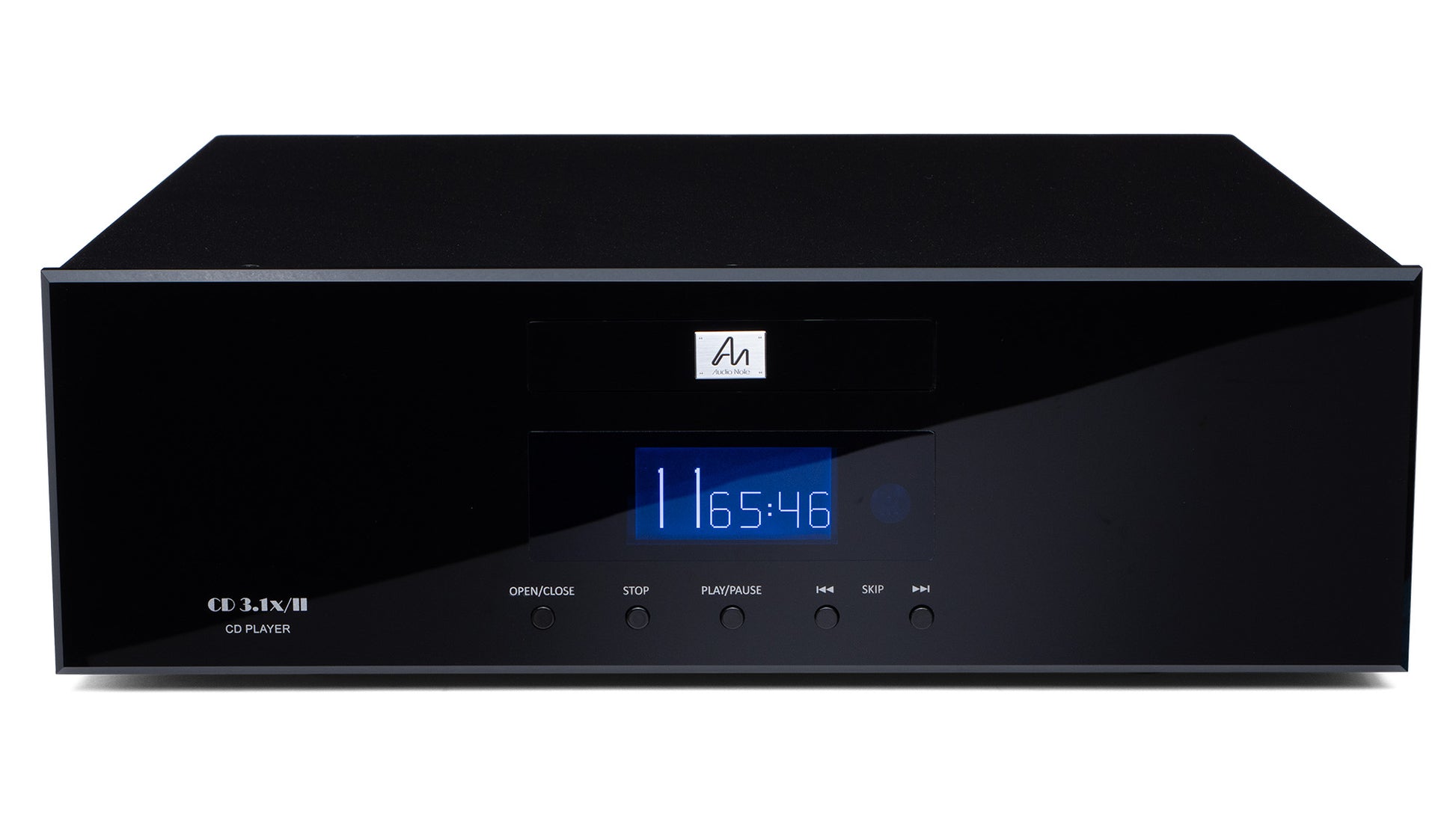

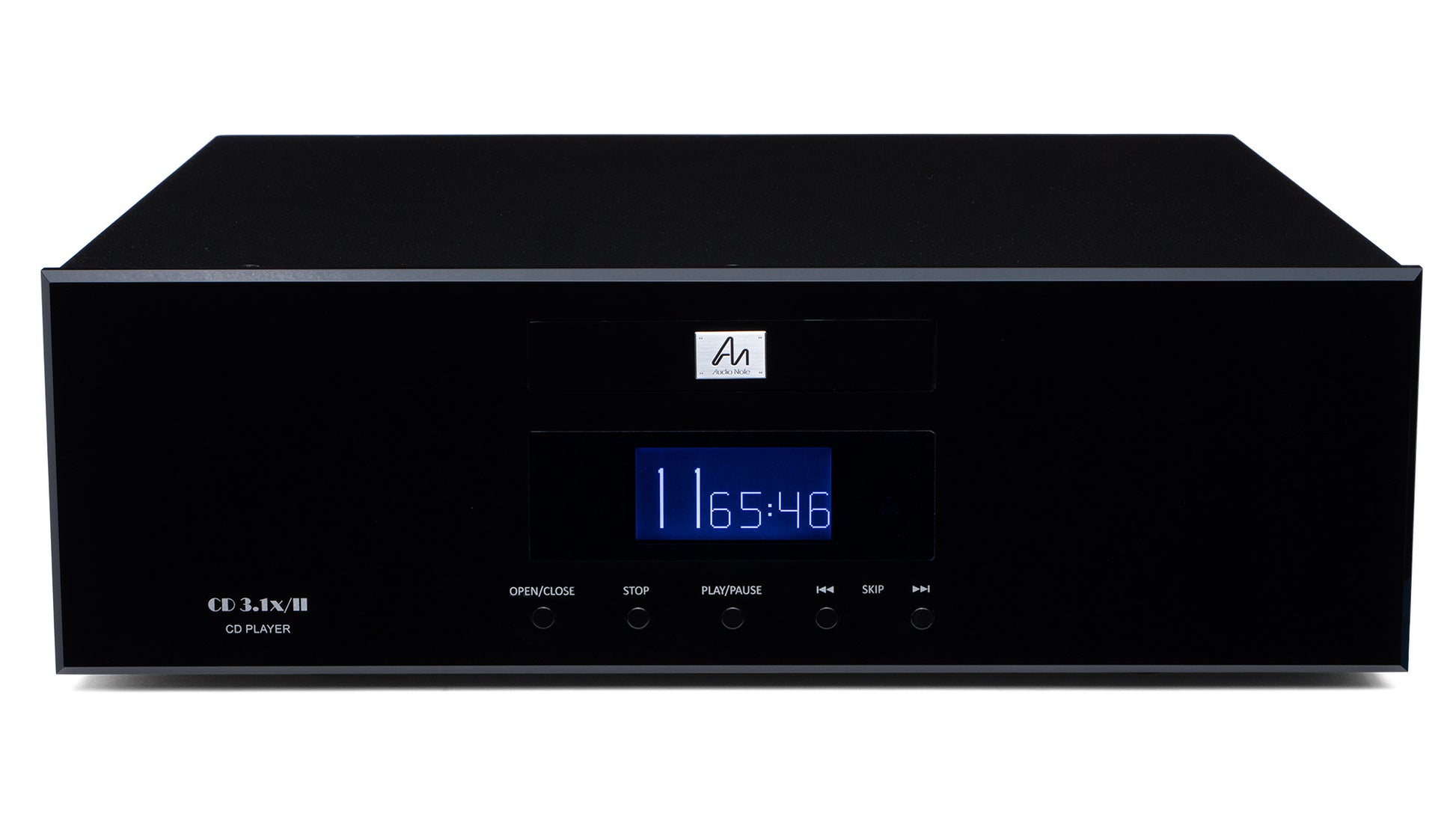

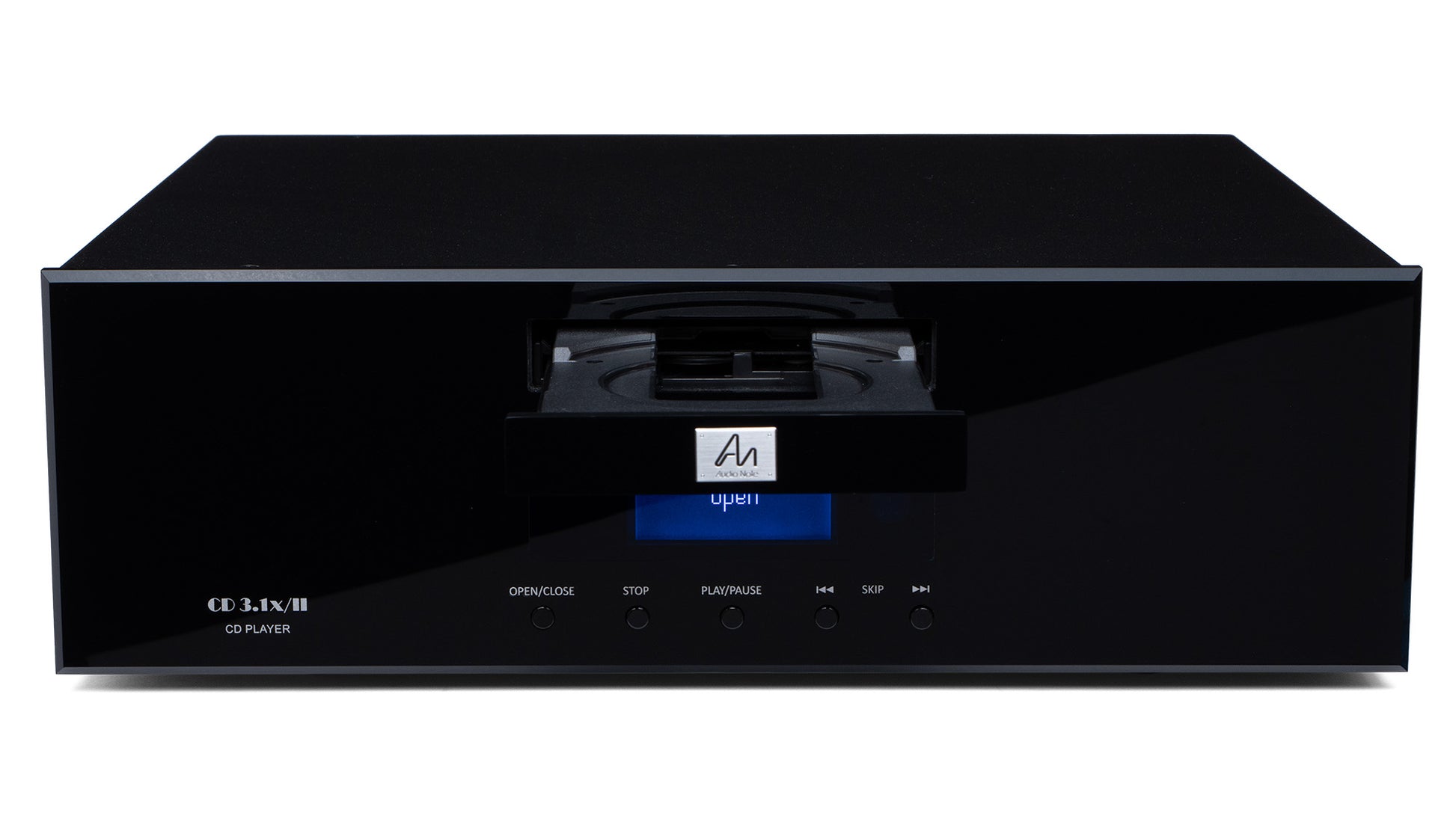

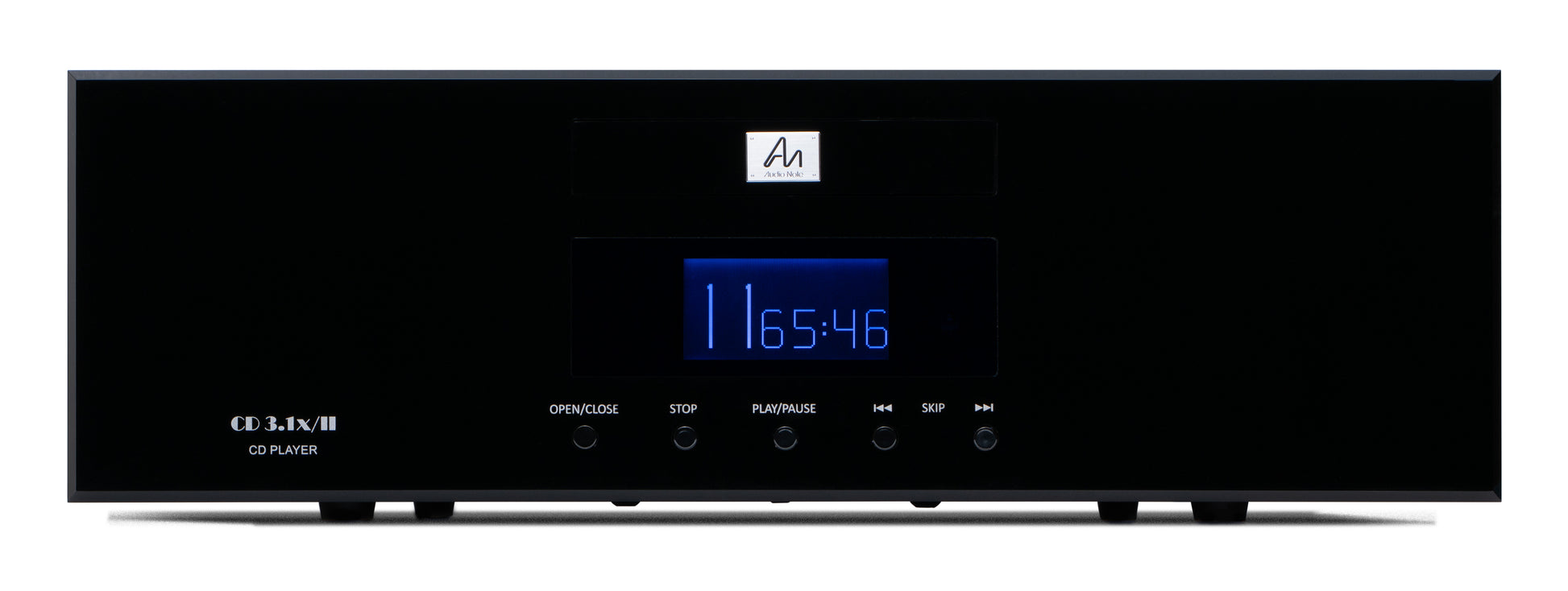

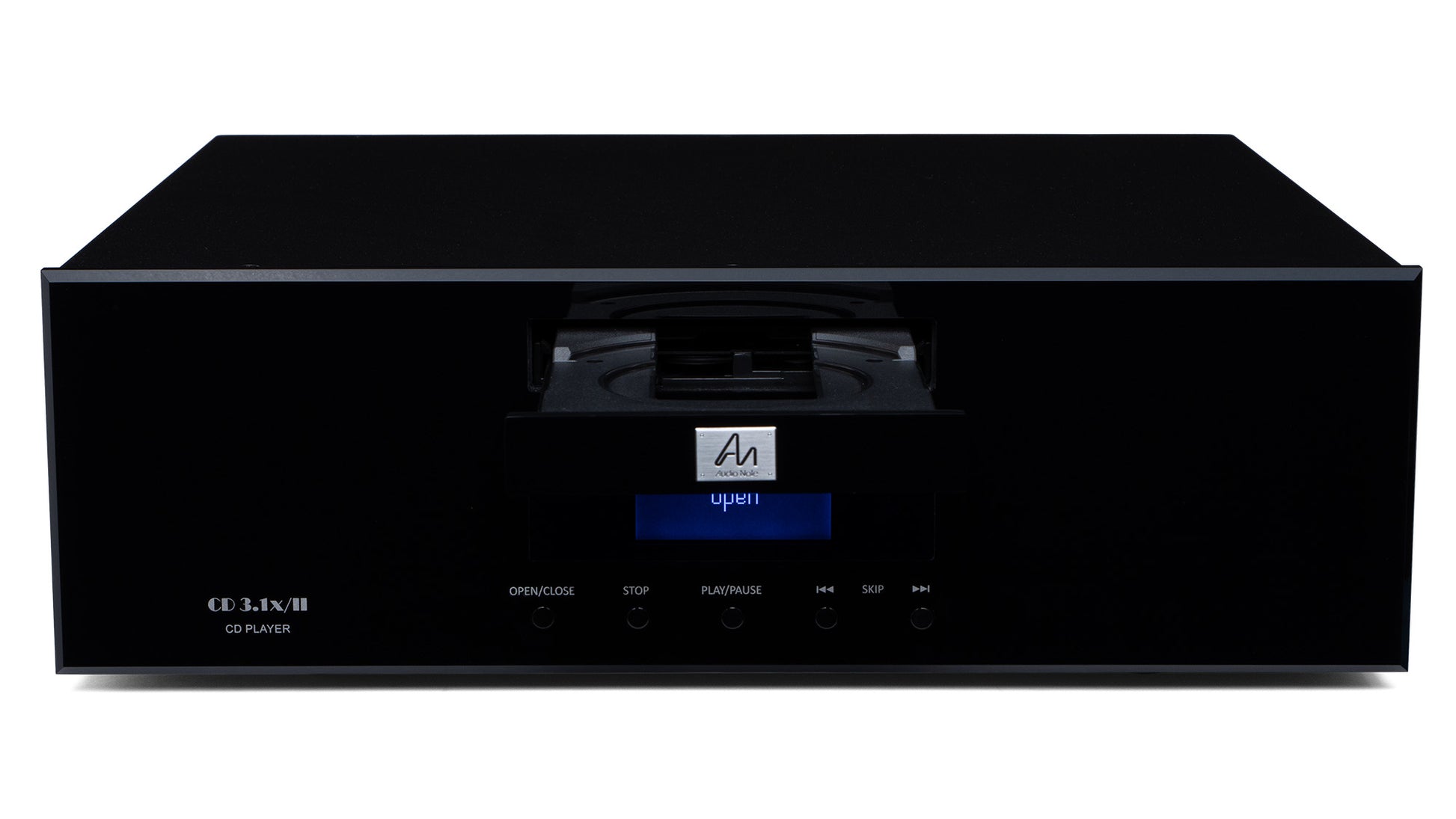

The CD3.1x/II is a substantial CD player measuring 142mm tall. Inside is a modified Philip laser mechanism and the special Analogue Devices AD1865 convertor running without oversampling and without a digital filter. The output stage uses ECC88 dual triodes, Audio Note copper foil paper in oil capacitors and tantalum resistors. It is available with either a black acrylic fascia or silver aluminium.

Technical Specifications:

Optical Pick Up: 3 beam laser
Semi-Conductor Laser: 780nm
Output Impedance: Less than 2 KOhm
Reference Output: 3.0V RMS (approx.)
Channel Balance: Less than 0.5dB
Valve Component: 2x ECC88
Unit Weight: 8kg
Unit Dimensions (HxWxD): 142mm x 445mm x 420mm
Mains Input: AC 100-120V / 220-240V 50/60Hz
Max Power Consumption: 48W
