Audio Note Ankoru/II Power Amplifier
Audio Note Ankoru/II Power Amplifier
Regular price
£37,713.61 GBP
Regular price
Sale price
£37,713.61 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

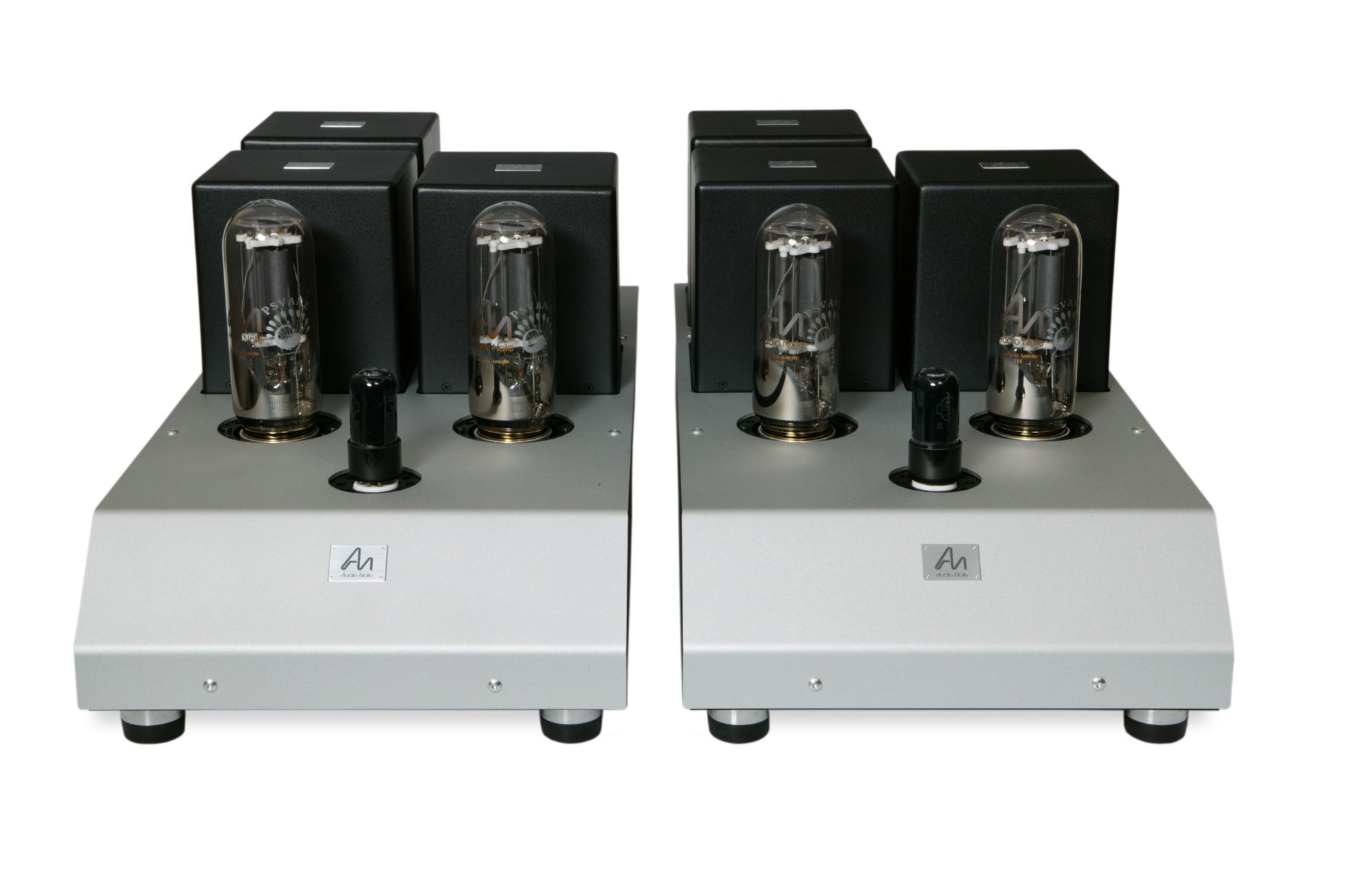

The Ankoru/II mono block power amplifiers use a pair of 211 directly heated triode output valves per channel in parallel single ended configuration. The design of the amplifier is essentially similar to the Gaku-On amplifiers, but to make them more affordable high purity copper is used inside the transformers rather than silver.
The power amplifier can be run from both a balanced signal or from a single ended connection with the appropriate cable.
Technical Specifications:
Input Impedance: 2.4 KOhm, XLR /Balanced Line Level
Maximum Output: 45 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 4 x 5R4WGB (2 per chassis), 4 x 211 (2 per chassis) & 2 x 6V6GT (1 per chassis)
Unit Weight: 27.5 kg (per amplifier)
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm (per amplifier)
Mains Input: AC 100-120V/220-240V 50/60Hz
Maximum Output: 45 Watts (approx.) per channel into 4 or 8 Ohm loads
Channel Balance: +/- 0.3dB
Valve Complement: 4 x 5R4WGB (2 per chassis), 4 x 211 (2 per chassis) & 2 x 6V6GT (1 per chassis)
Unit Weight: 27.5 kg (per amplifier)
Unit Dimensions (HxWxD): 305mm x 305mm x 640mm (per amplifier)
Mains Input: AC 100-120V/220-240V 50/60Hz
