Audio Note AN-SOGON LX96 Silver Speaker Cable (Click & Collect only)
Audio Note AN-SOGON LX96 Silver Speaker Cable (Click & Collect only)
Regular price
£0.00 GBP
Regular price
Sale price
£0.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*
*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

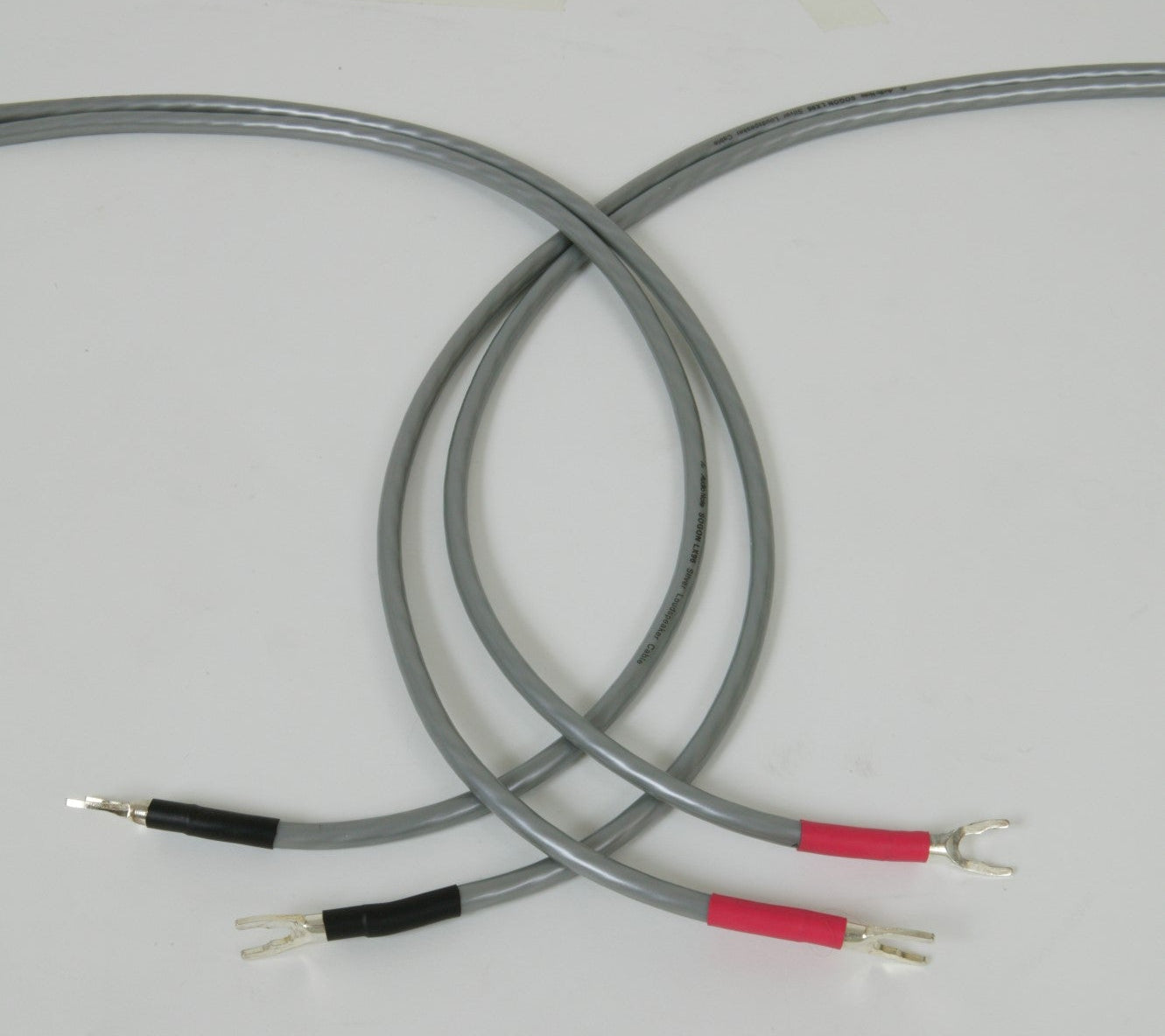

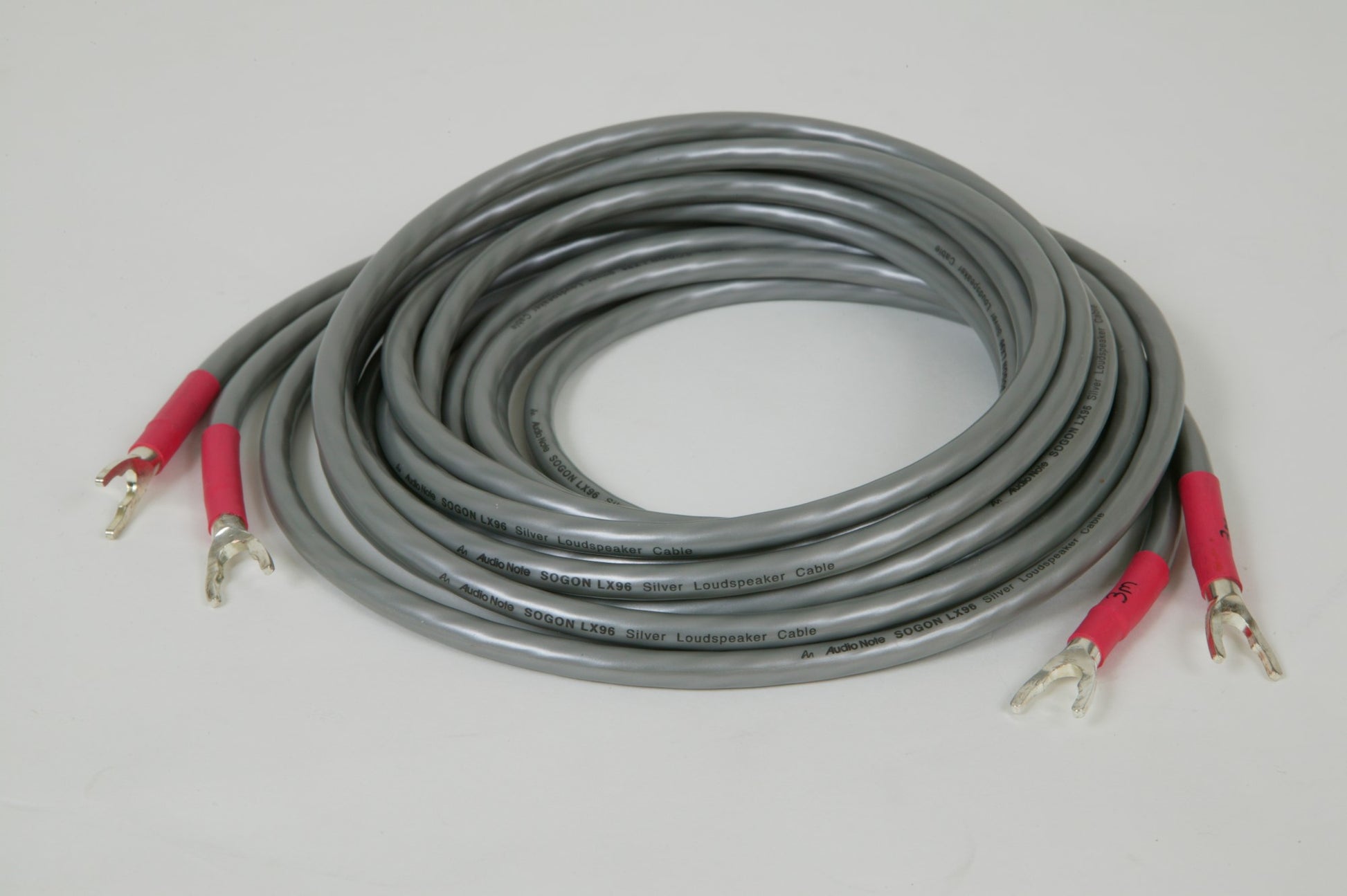

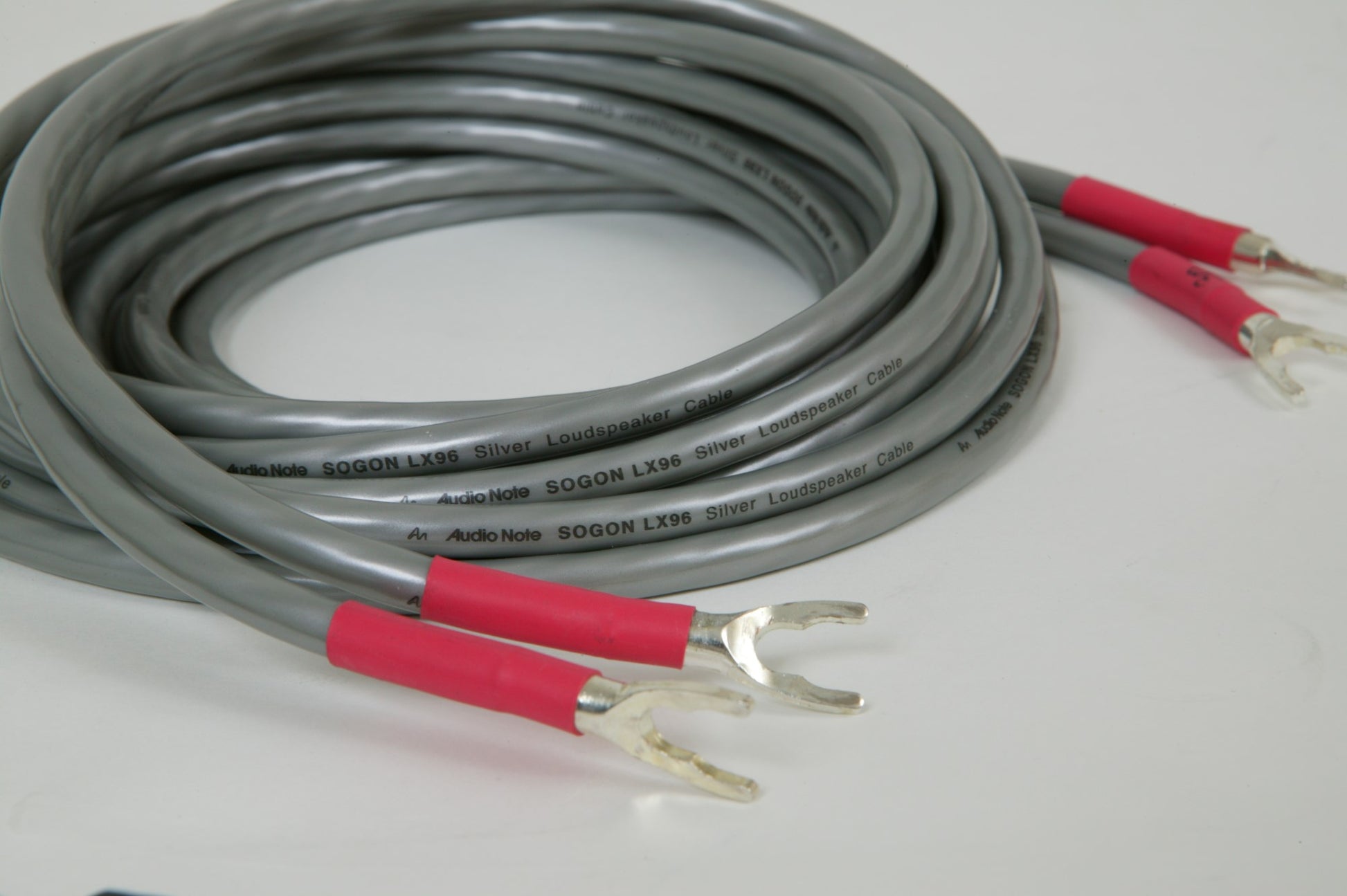

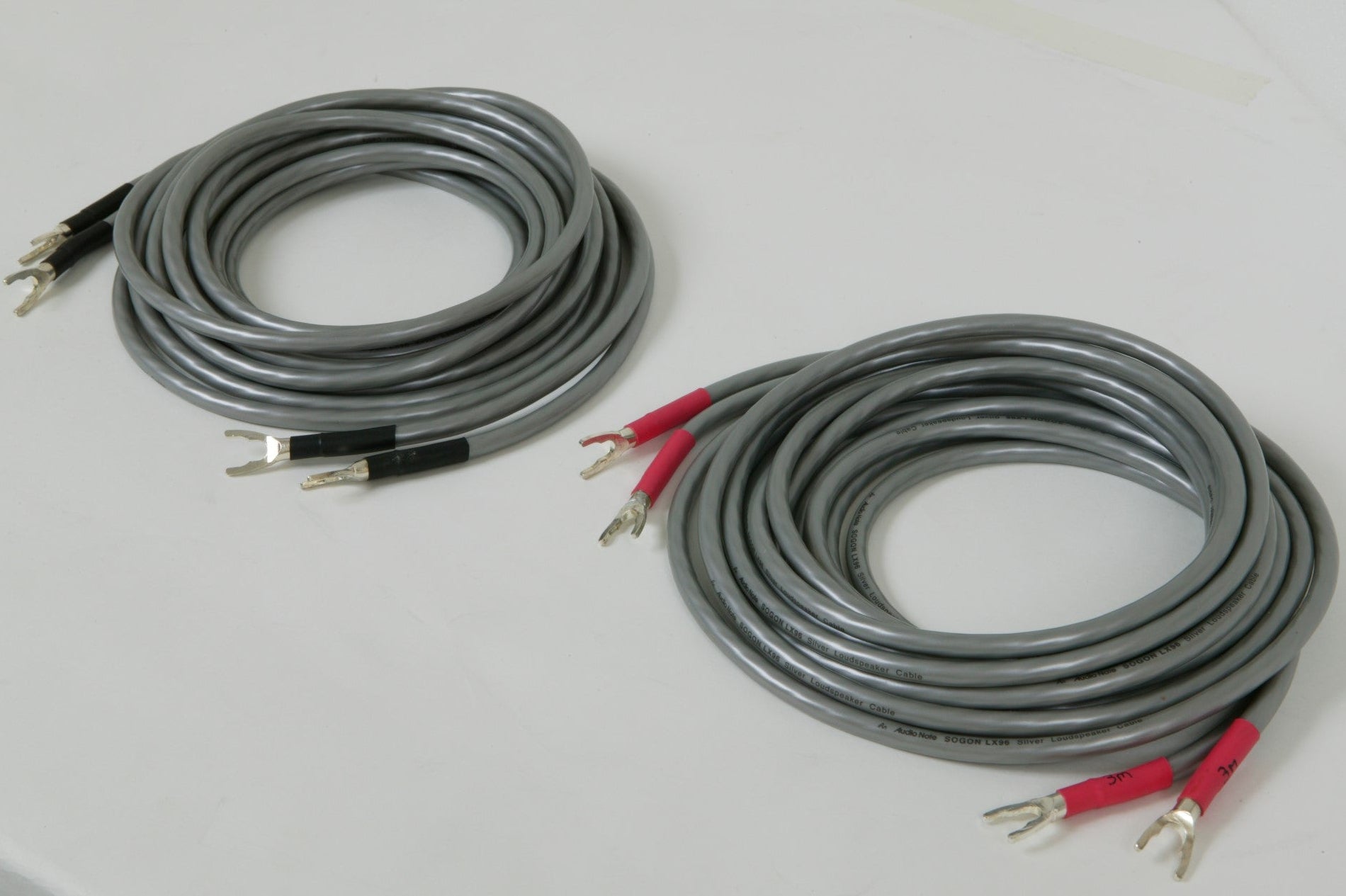

The Sogon name now has legendary status amongst speaker cables, and prior to the introduction of the Sootoo was the ultimate Audio Note cable. Featuring a high strand count of 96 for a thick cross sectional area combined with the sonic purity seemingly only achieved with Litz construction means that the Sogon allows the real weight and scale of a recording, along with its delicacy and airiness to be faithfully transmitted, this is cable that has to be heard to be believed.
Like all of the upper level cables in the range it's a litz design, meaning each of the very fine strands has its own thin layer of (polyurethane) insulation. These strands are made from 99.99% pure silver and there are 96 of them in this cable, twisted to form the conductor a single cable.
The cable design is quite unusual as each cable contains 4 separately insulated groups of litz conductors, and of those two feature groups of thicker strands and two thinner strands. Cable designers tend to agree that thicker strands of conductors tend towards the lower frequencies and thinner ones to the upper ones, so this topology aims to bring the best of both worlds.
It can be used in several ways but as terminated by Audio Note for best performance it is used as two cables per speaker (one for positive and one for negative) for single wire and four for bi wire. Generally the cables are then very lightly twisted together.
This means two separate cables are required per speaker for single wiring and four for bi-wiring. These cables can be lightly twisted together (my preference) or left well spaced. If twisting then we can cover them in expandable sleeving of a variety of colours at an additional cost.
These cables are available to order in any length in 0.5m increments and Audio Note can terminate the cables with either their silver plated banana plugs or spade connectors.
Technical Specifications
STRAND COUNT 96
CONSTRUCTION True Litz
INTERNAL MATERIAL 99.99% Pure Silver
SLEEVE MATERIAL PVC
SLEEVE COLOUR Silver
DIMENSIONS: Approx 7mm diameter
