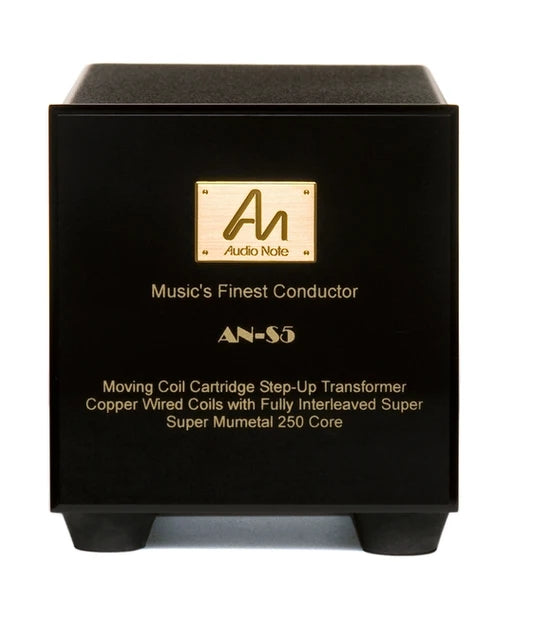

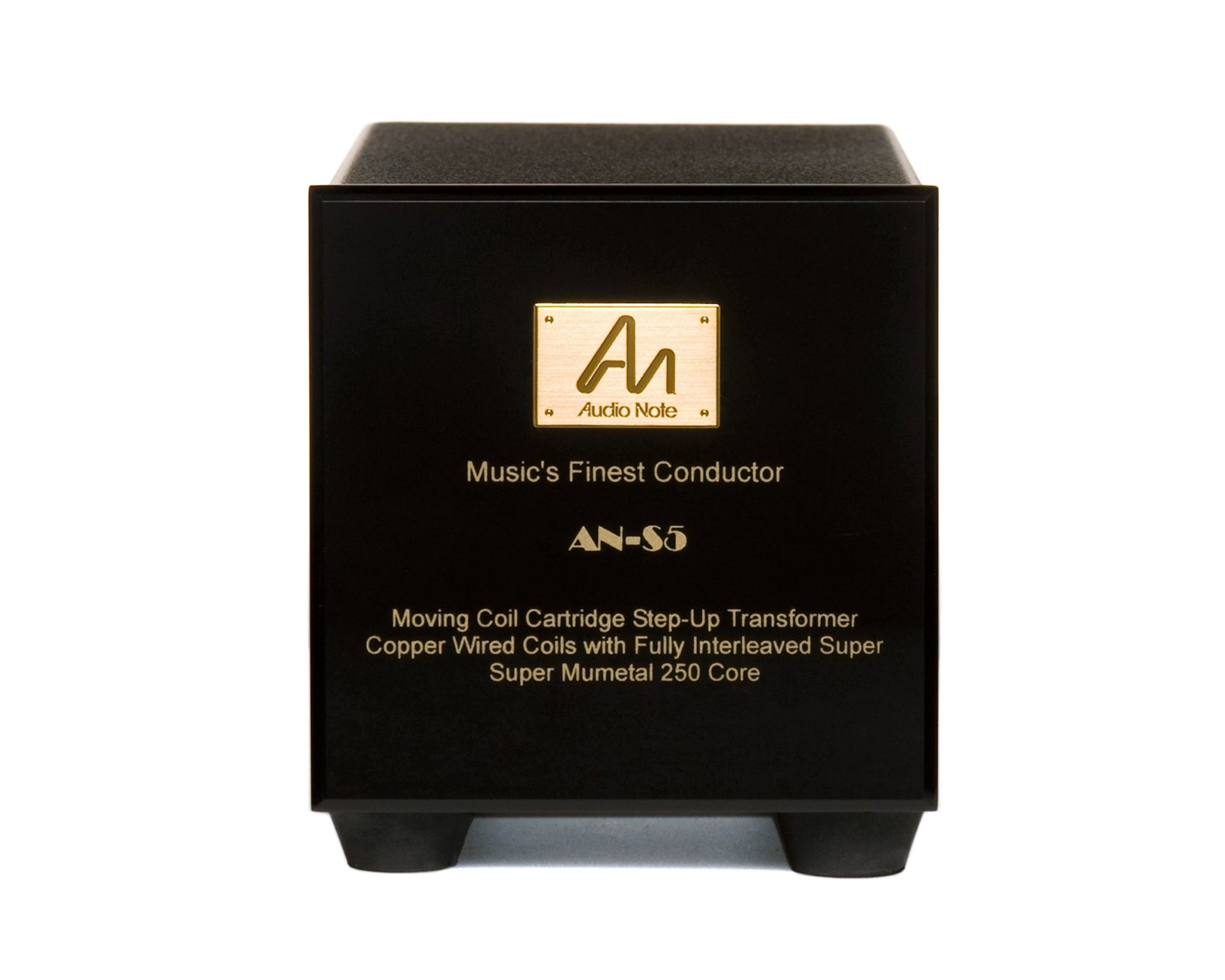

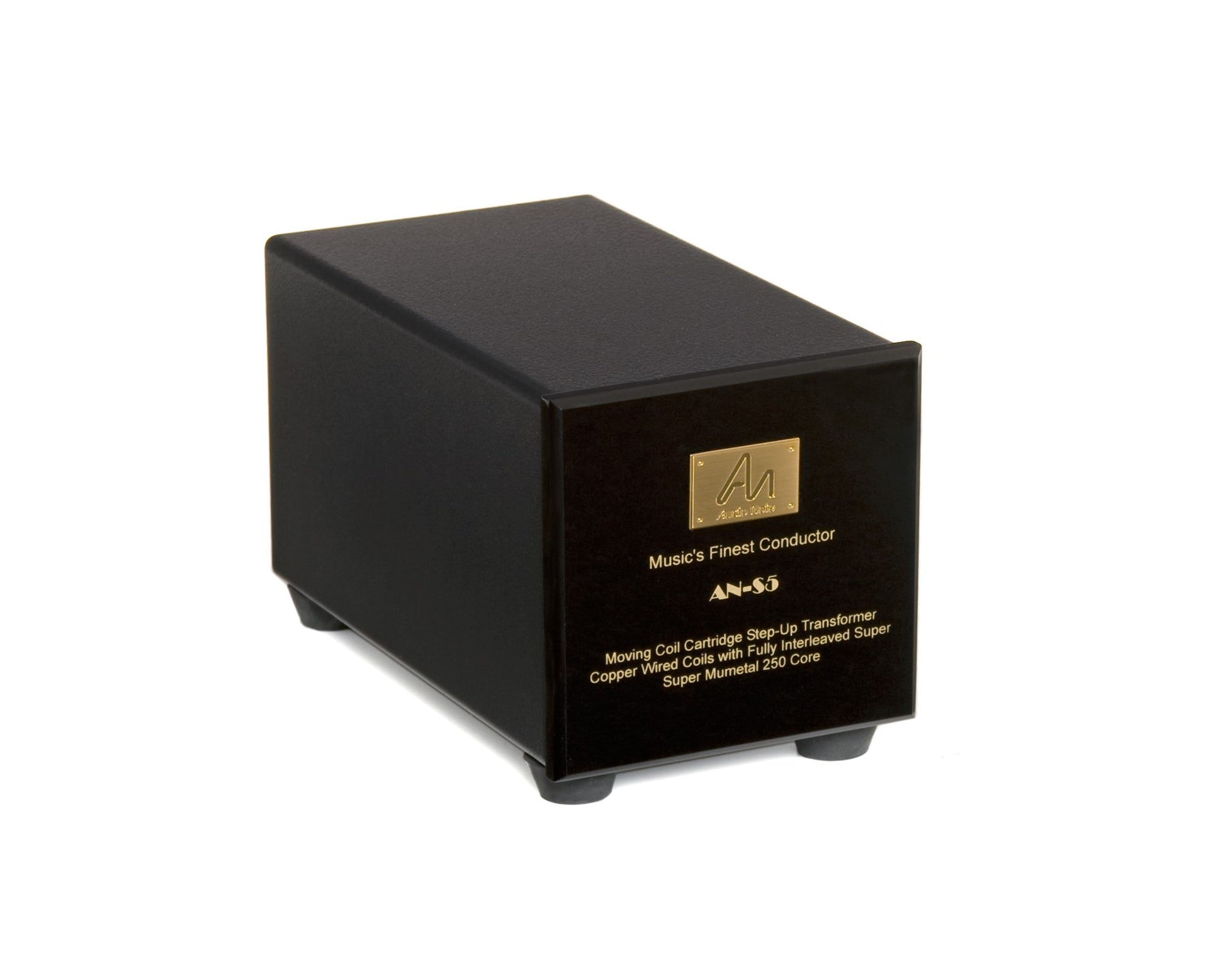

Audio Note AN-S5 MC Step-Up Transformers (AN-S5L & AN-S5H)

Audio Note AN-S5 MC Step-Up Transformers (AN-S5L & AN-S5H)

Regular price £7,632.57 GBP
Regular price Sale price £7,632.57 GBP
Sale Sold out
Tax included.
Front Panel Finish
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

The AN-S5 is the fifth model up in the Audio Note range of step up transformers. Compared to the model beneath it, the S5 features large Super Mumetal 250 cores

Like the rest of the range, their step up enclosures are made from copper, and there's a substantial copper clamp that secures and damps the transformer enclosures. The mu-metal encased transformers are made by Audio Note using their extensive experience of core materials and winding technology.

There are two versions available, the AN-S5L where the 'L' for Low, which is intended for very low output and impedance cartridges - primarily the Audio Note Io range.

The AN-S5H where the 'H' stands for High is suited to most other low impedance MC cartridges on the market as it presents a 12 Ohms input impedance.

*It is possible to use transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the switchable inputs, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.

Technical Specifications:

AN-S5L Input Impedance: 3 Ohms (Primarily for use the Io cartridge range).

AN-S5H Input Impedance: 12 Ohms

Output Impedance: should be used with a 47K Ohm MM Phono input

Channel Balance: +/-0.3dB

Internal Wiring: 99.99% Pure Silver

Dimensions: Height 8.8cm, Width 7.8cm, Depth 18cm (approx.)
