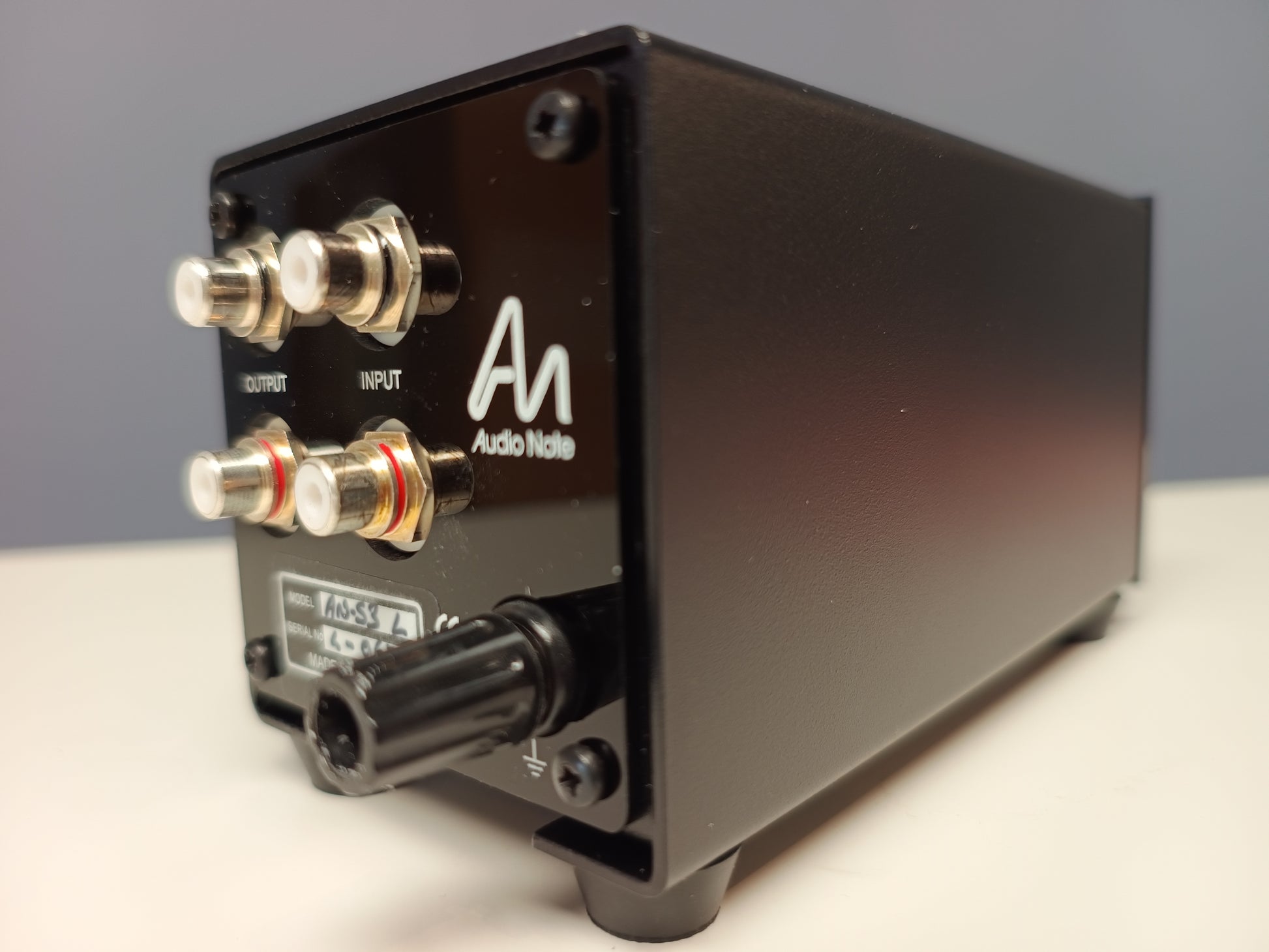

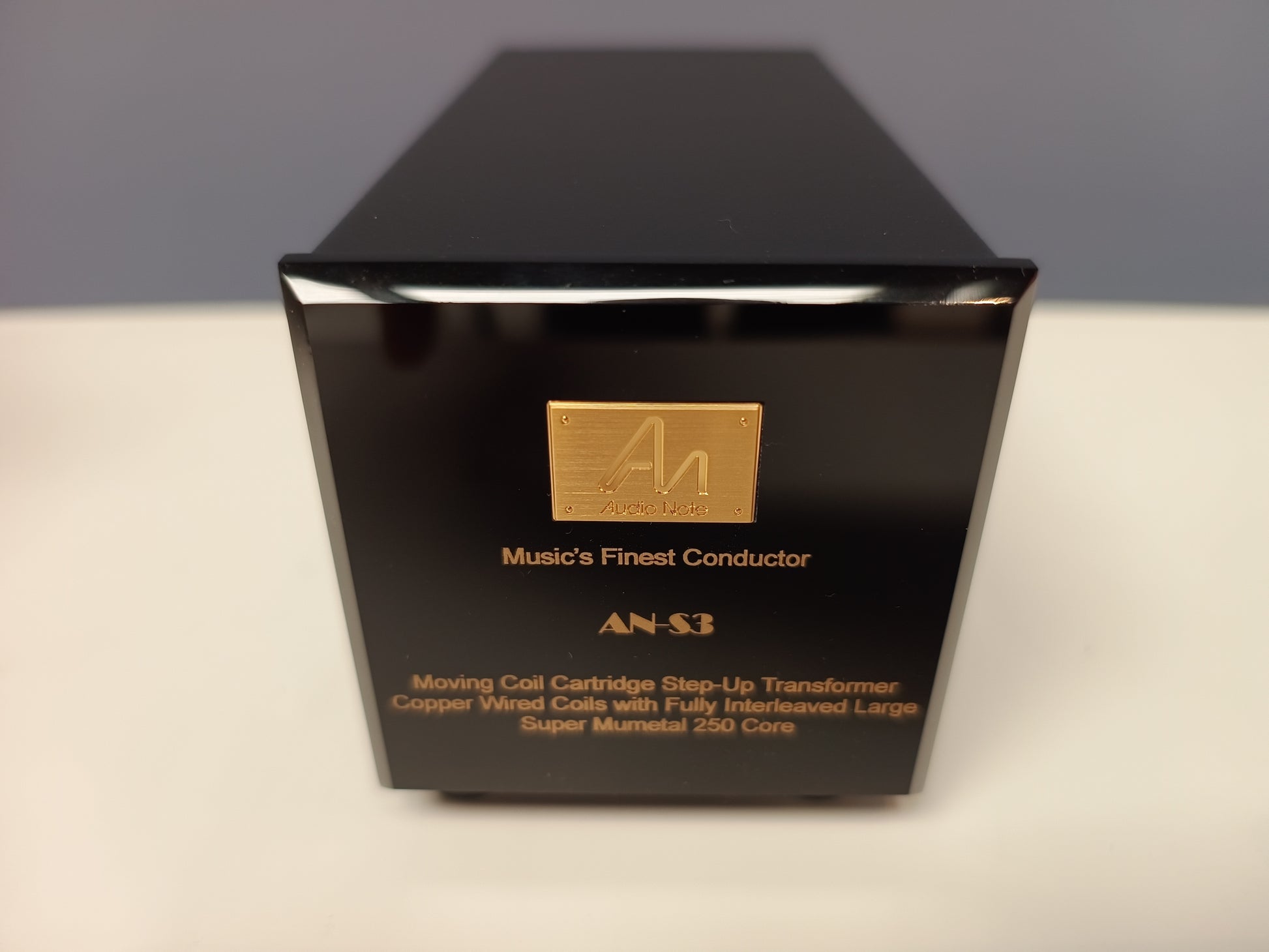

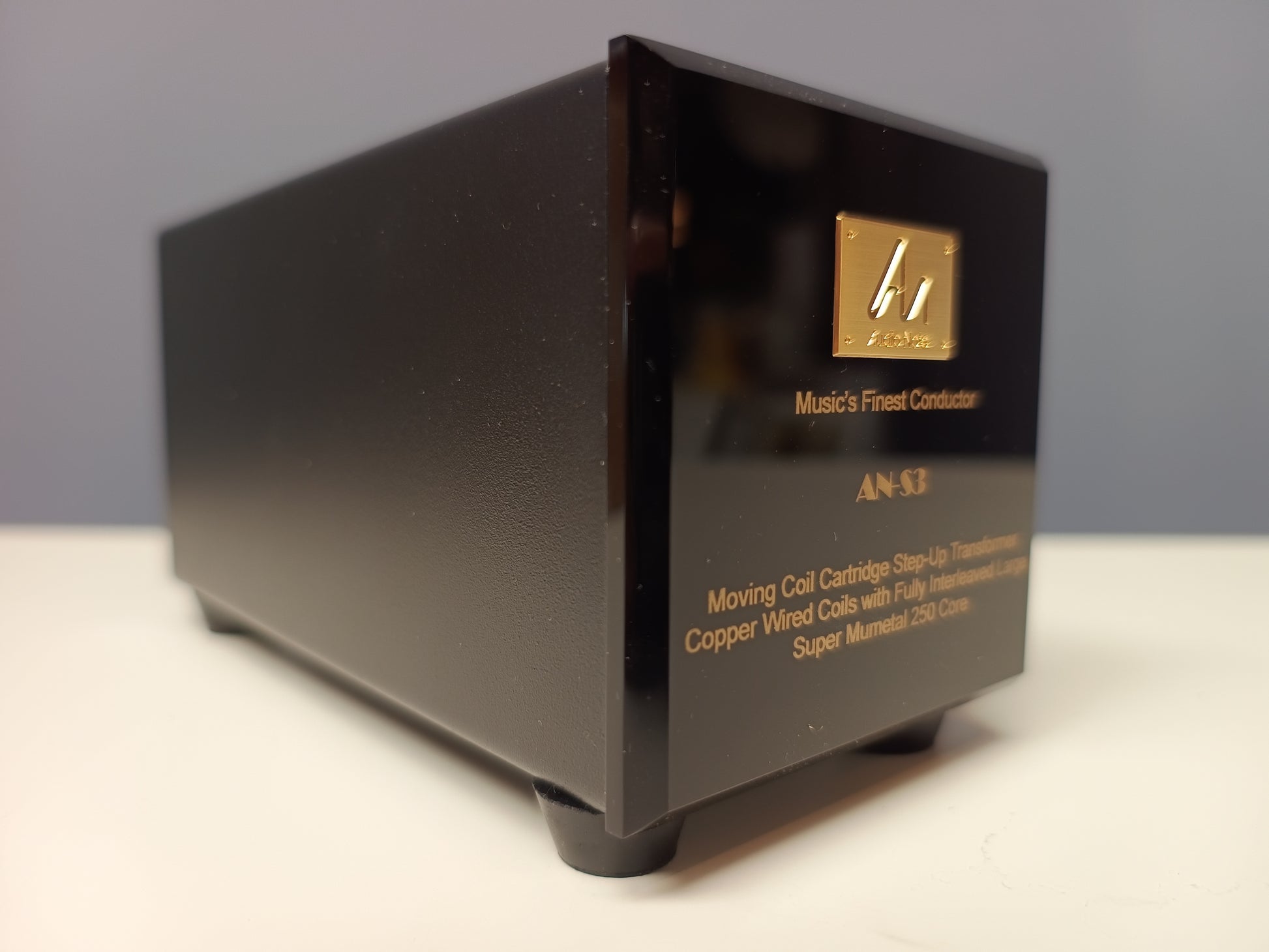

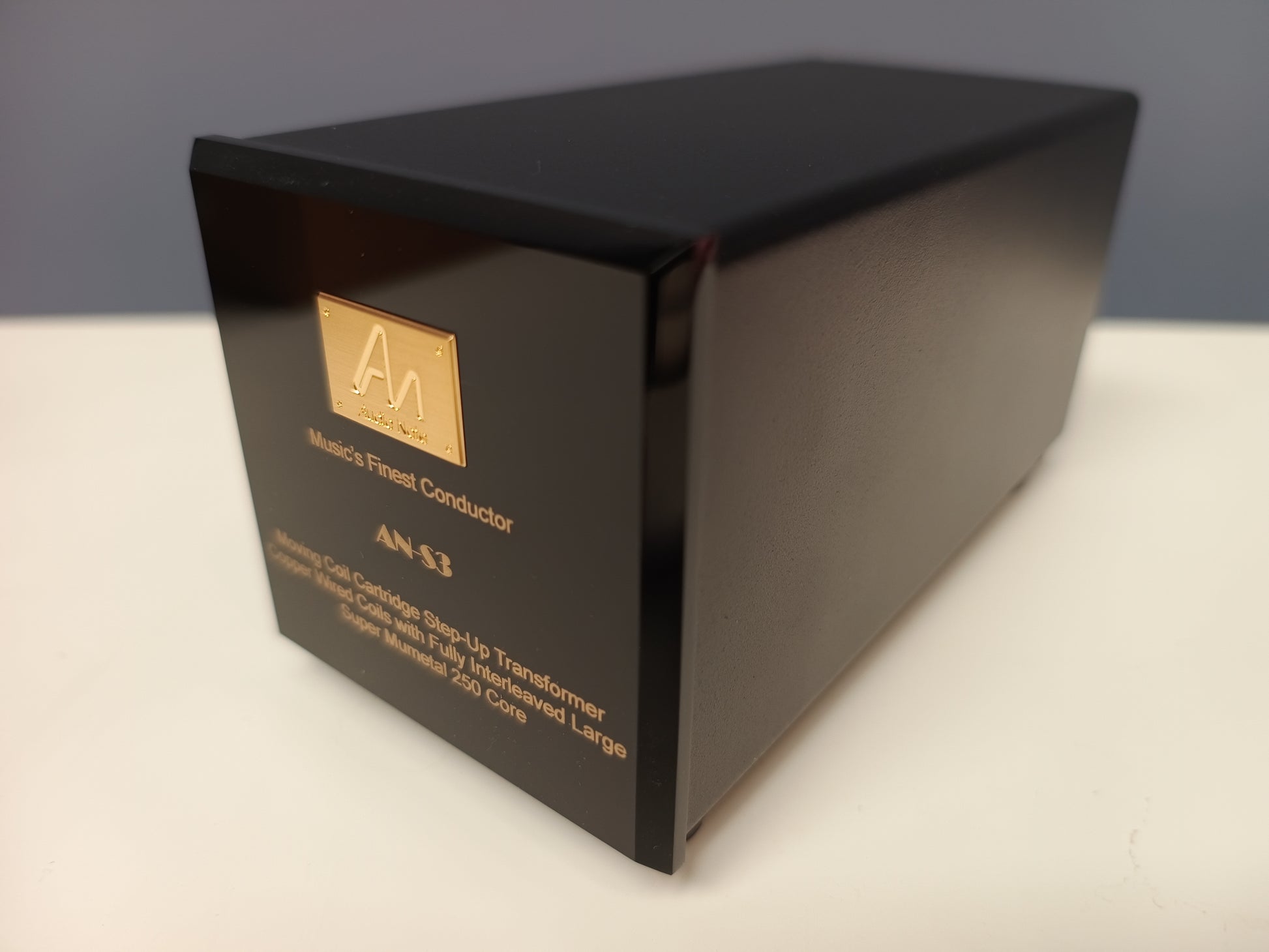

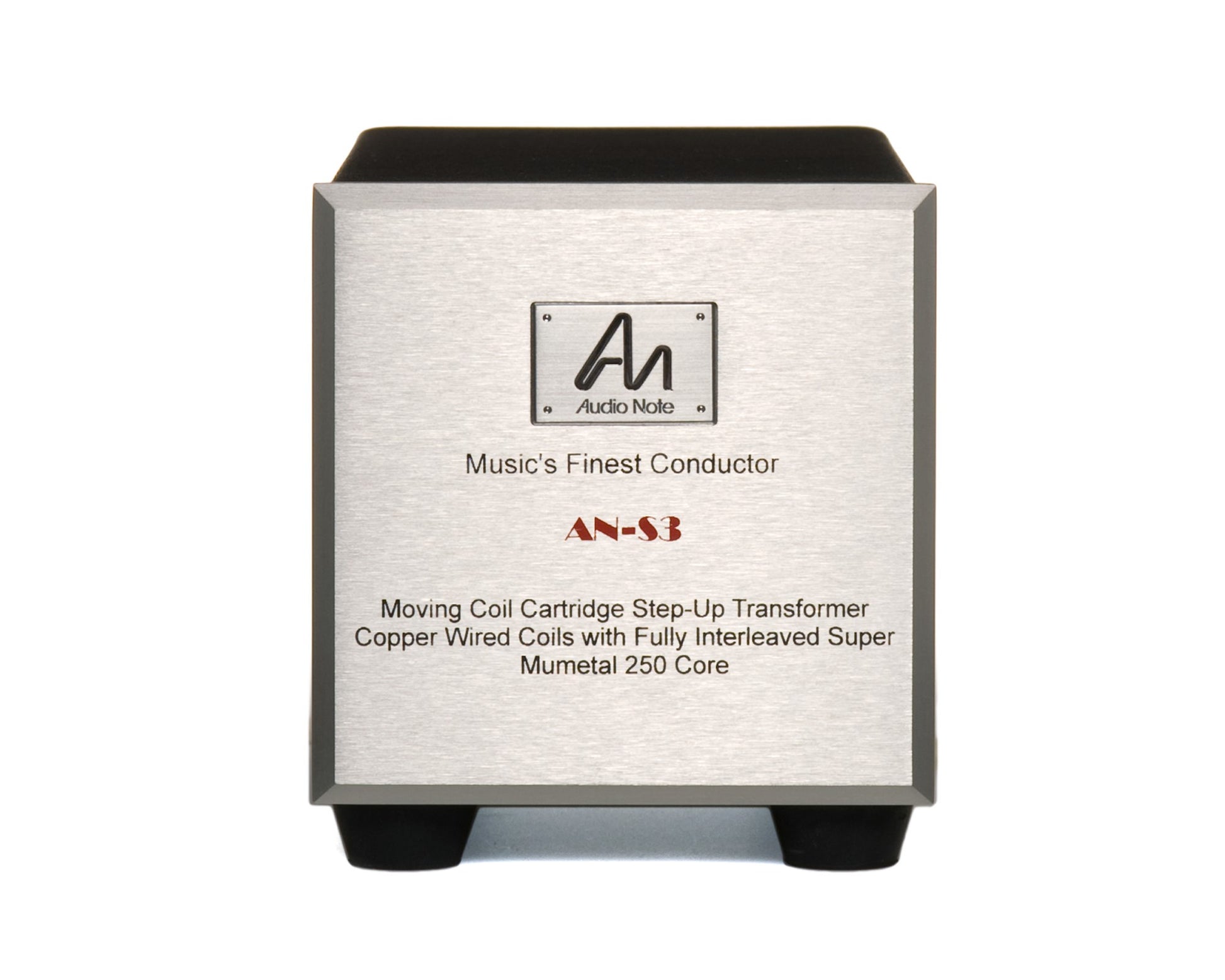

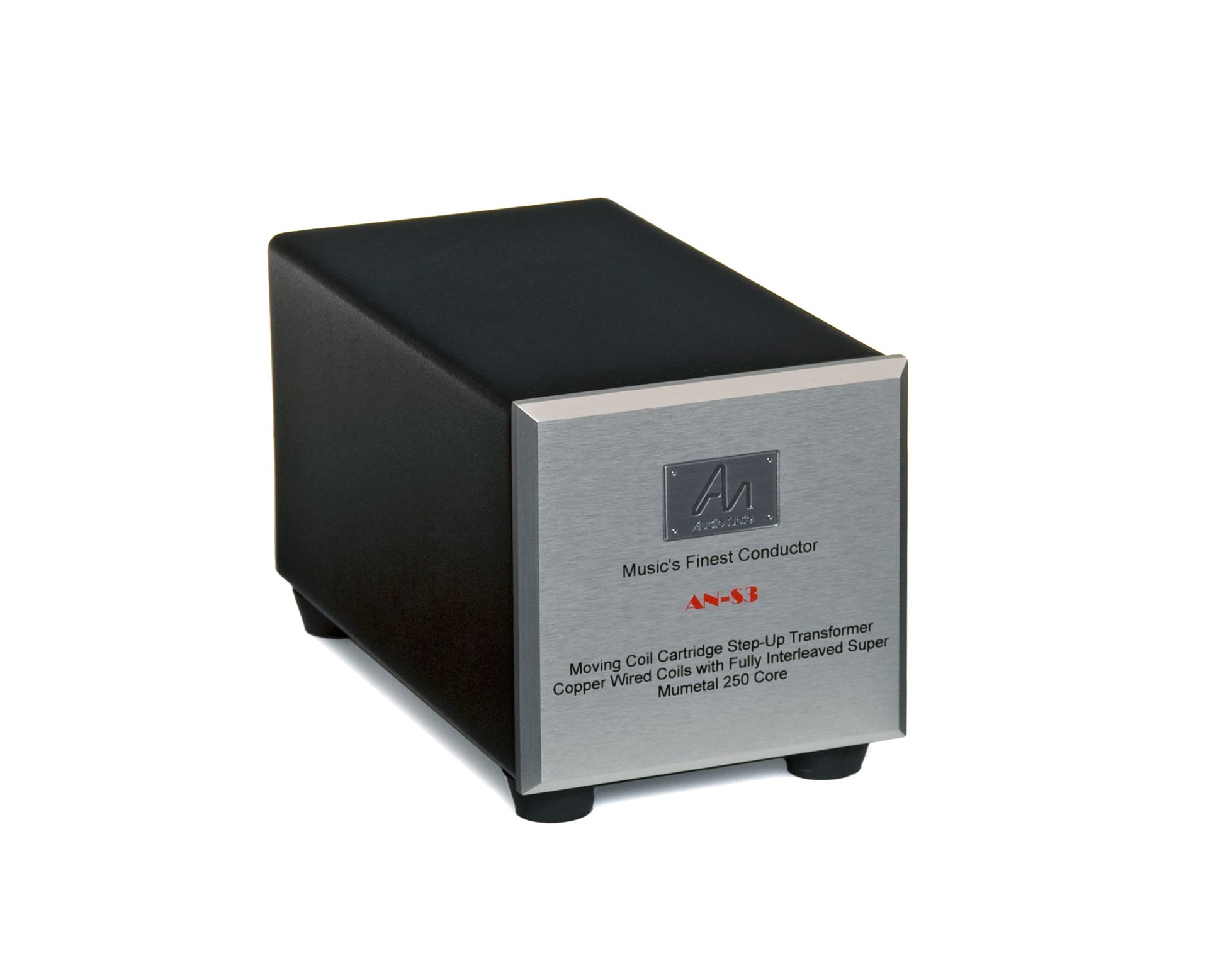

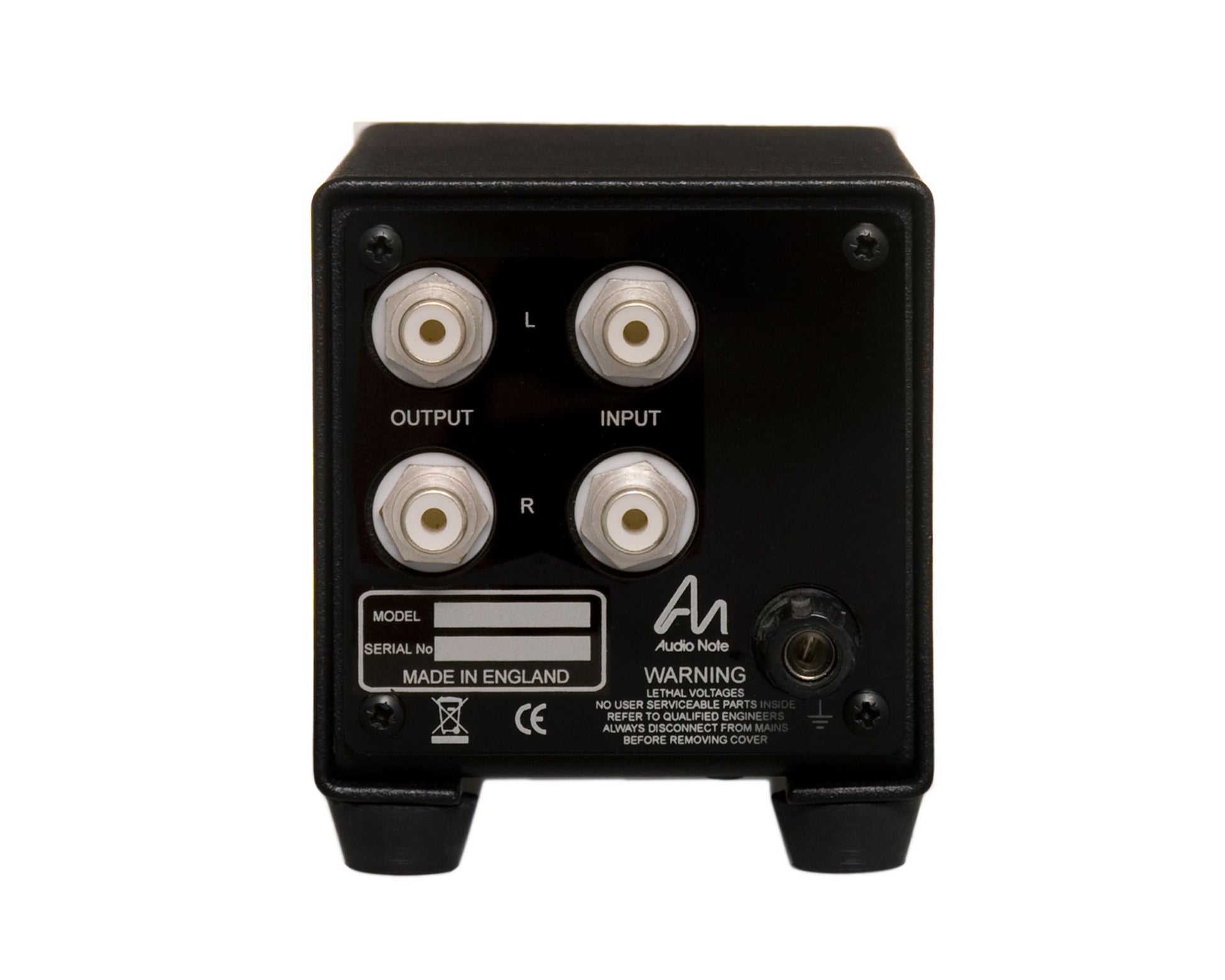

Audio Note AN-S3 MC Step-Up Transformers (AN-S3L, AN-S3LM, AN-S3M & AN-S3H)

The AN-S3 is the third model up in the Audio Note range of step up transformers. These feature even further improved cores and are made from 0.1mm laminated Super Mumetal 250 and wound with 99.99% pure copper wire. Each Transformer is then housed in a Mumetal screening canister to minimize noise and interference. Unlike the two models beneath it, this transformer does not have switchable impedance settings.

​There are four different versions of this transformer, Low, Low to Medium, Medium and High

Like the rest of the range, their step up enclosures are made from copper, and the mu-metal encased transformers are made by Audio Note using their extensive experience of core materials and winding technology. ​

AN-S3/L  - 3 Ohm input impedance - Primarily designed for use with the Audio Note (UK) IO range

AN-S3/LM - 4 Ohm input impedance - For cartridges with an impedance of 1 to 2 Ohms

AN-S3/M - 16 Ohm input impedance - For cartridges with an impedance of 4 to 6 Ohms

AN-S3/H - 64 Ohm input impedance - For cartridges with an impedance of 16 to 21 Ohms

*It is possible to use transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the input, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.
