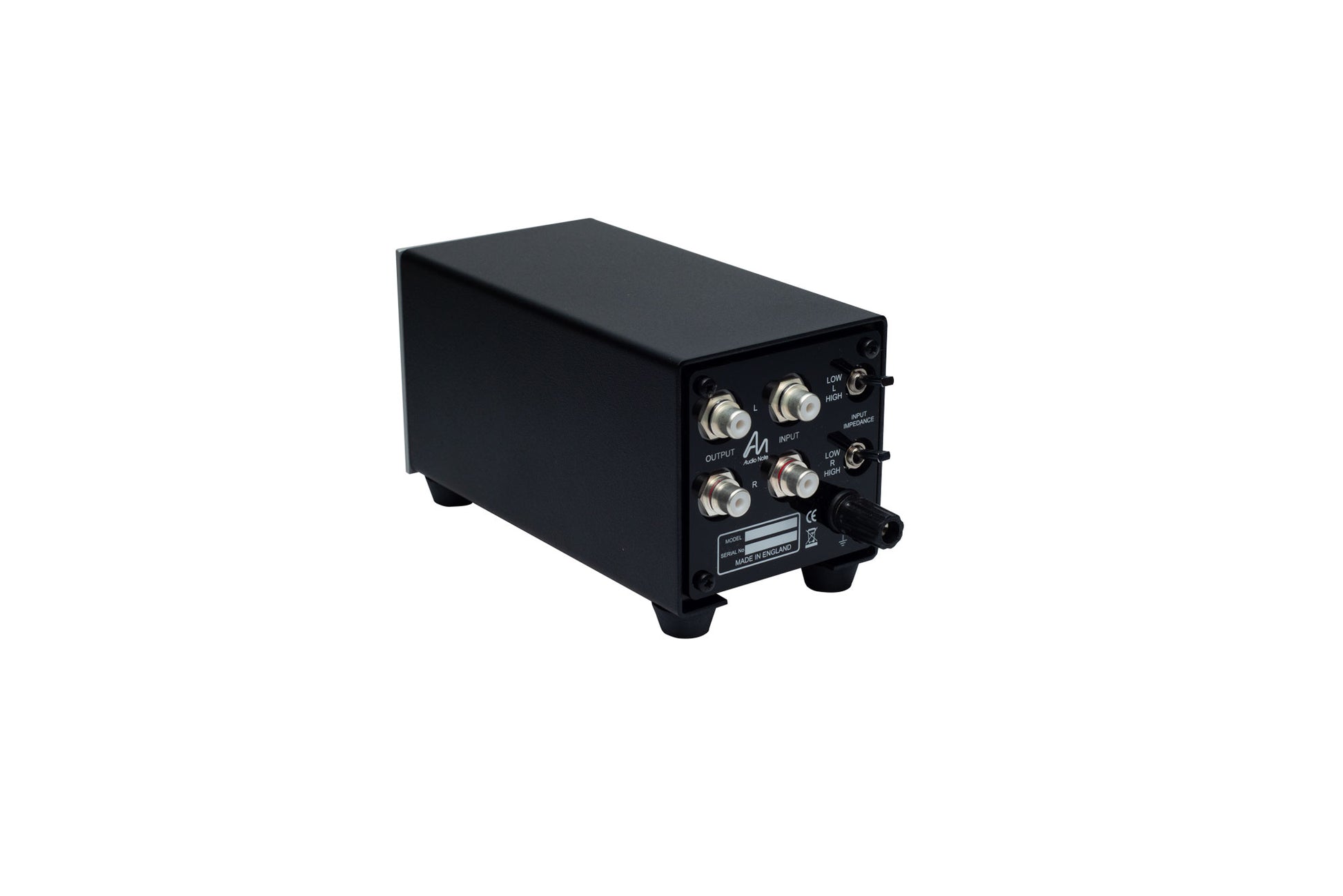

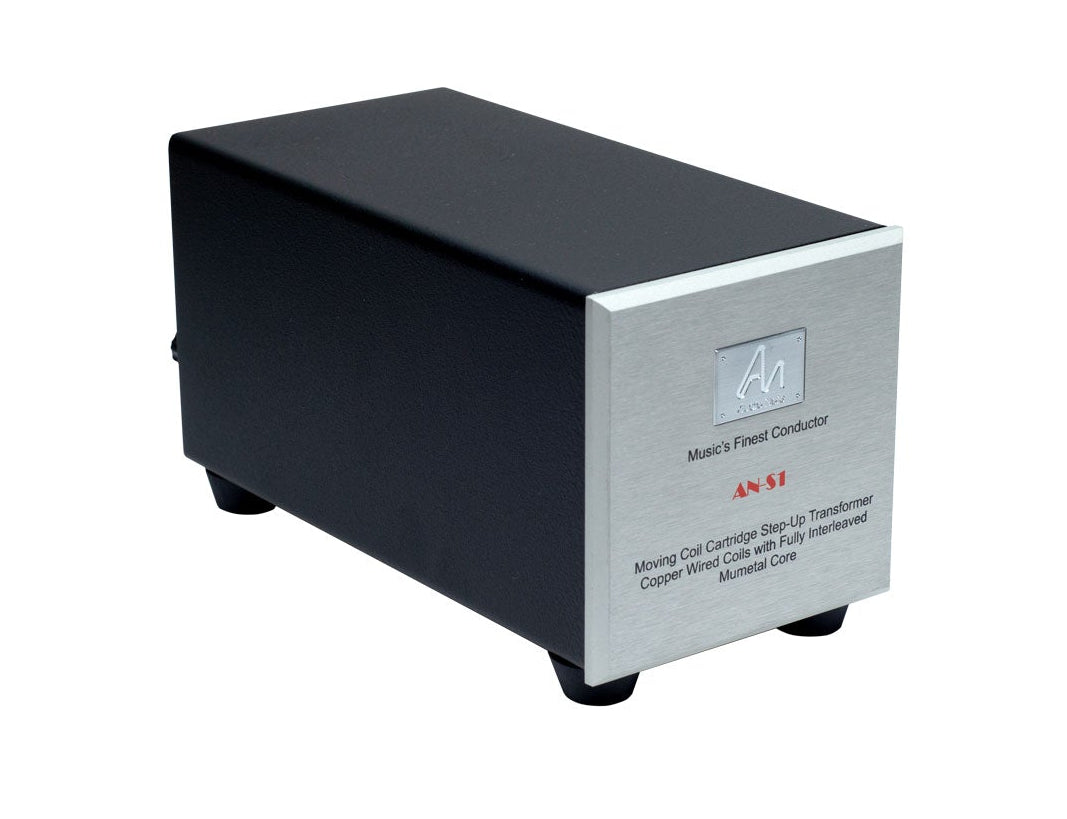

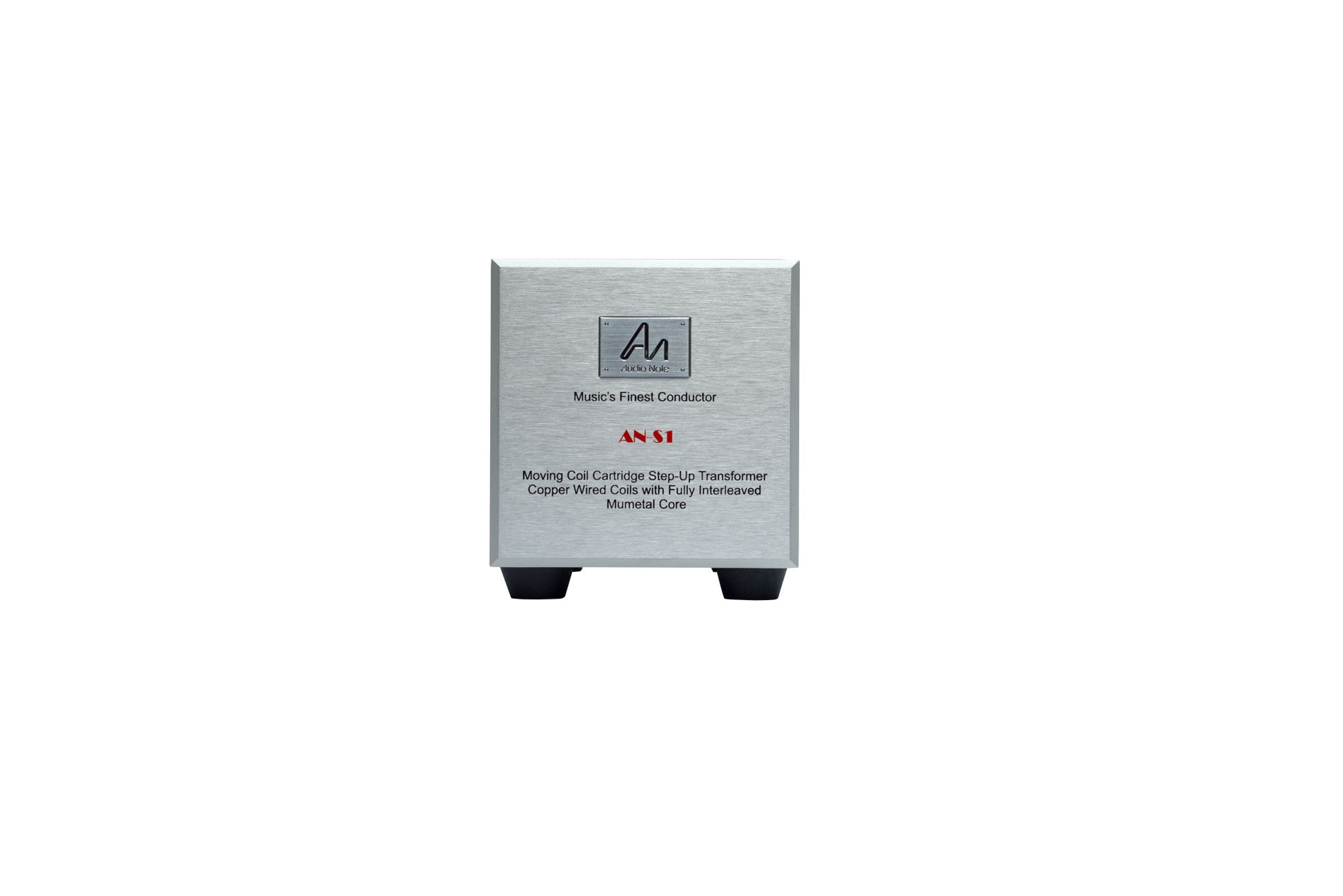

Audio Note AN-S1 MC Step-Up Transformers (AN-S1L & AN-S1H)

Audio Note AN-S1 MC Step-Up Transformers (AN-S1L & AN-S1H)

Regular price £808.15 GBP
Regular price Sale price £808.15 GBP
Sale Sold out
Tax included.
Front Panel Finish
Impedance
*In accordance with the wishes of Audio Note, this product cannot be purchased by mail order, so will always show as 'out of stock' here, if you would like to purchase one please get in contact for more information*

*Audio Note items are supplied to order, please allow approximately 8 weeks for build time*

The AN-S1 is the starting point in the Audio Note range of step up transformers.
Like the rest of the range, their step up enclosures are made from copper, and the mu-metal encased transformers are made by Audio Note using their extensive experience of core materials and winding technology.

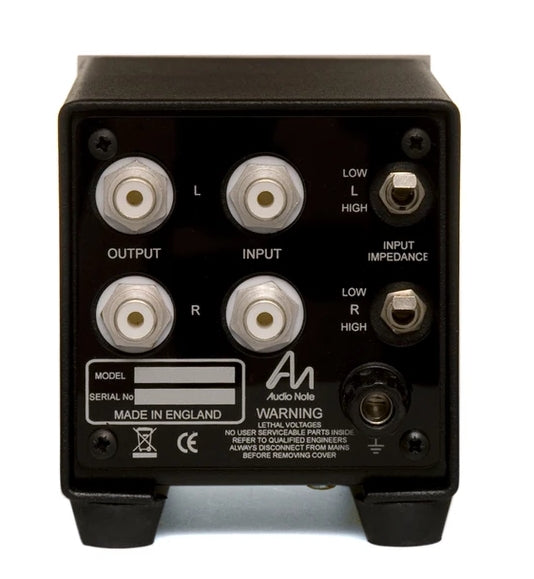

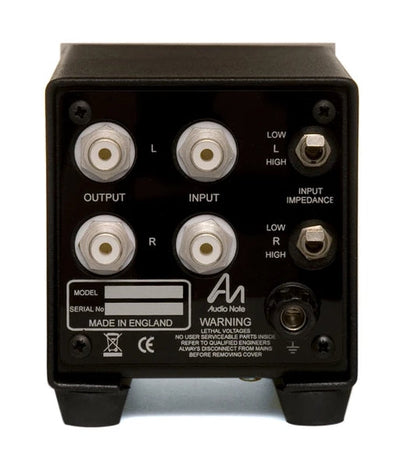

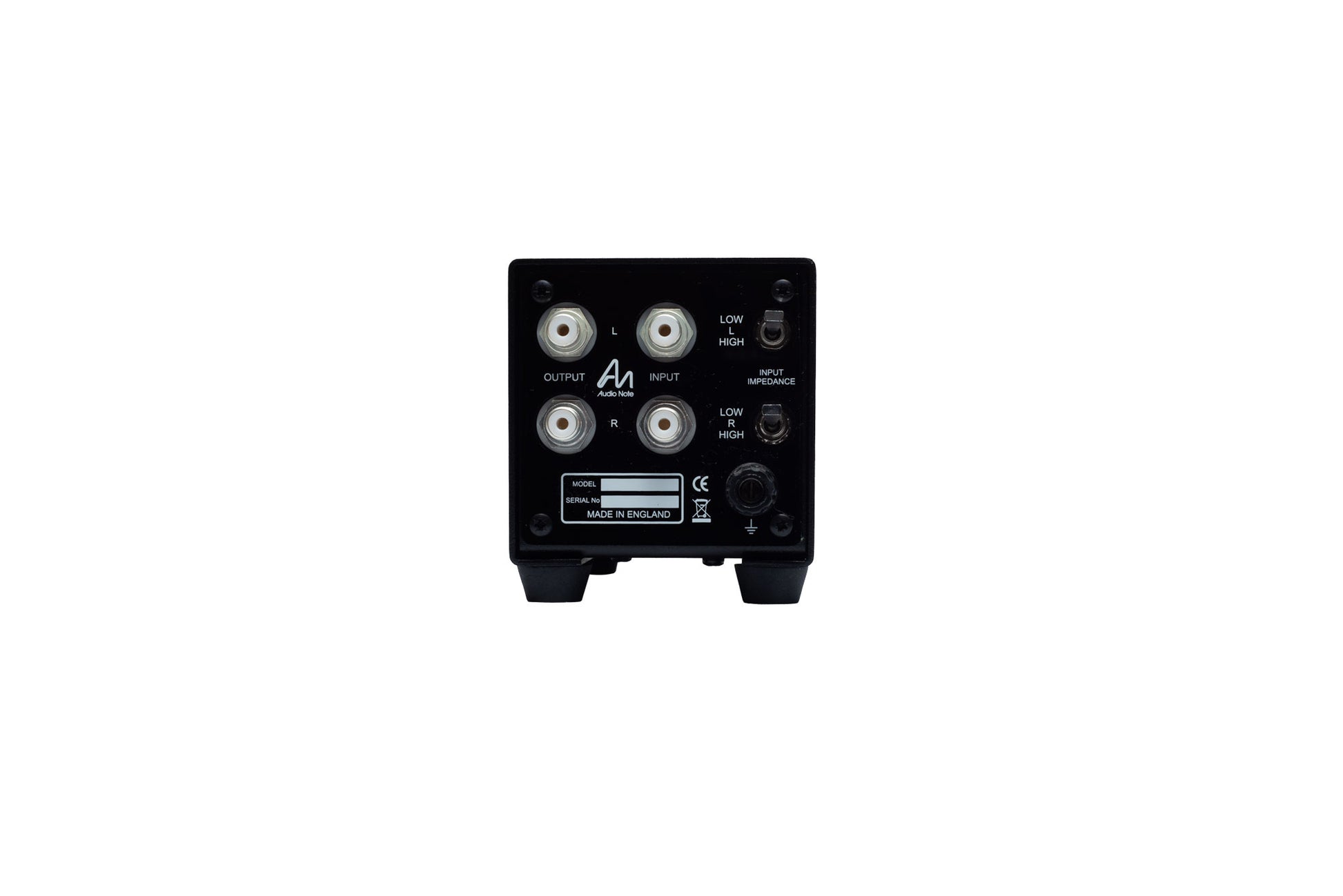

There are two versions available, the AN-S1L where the 'L' for Low, which is intended for very low output and impedance cartridges - primarily the Audio Note Io range. It has a switch for the option of 3 Ohms (for the Io models) or 12 Ohms (for most cartridges with an internal impedance of 3 to 4 Ohms*).

The AN-S1H where the 'H' stands for High is suited to most other cartridges on the market and can be switched between 15 Ohms (for cartridges with an internal impedance of 4 to 5 Ohms) and 60 Ohms (for cartridges with an internal impedance of 15 to 20 Ohms*).

*It is possible to transformers with cartridges that have greater internal impedance, or values that are outside the preferred ranges of the switchable inputs, however, it is important to realise that an input impedance in the region of three to four times the internal impedance of your cartridge will usually provide the best results.

Technical Specifications:

AN-S1L Input Impedance: 3 Ohms & 12 Ohms
AN-S1H Input Impedance: 15 Ohms & 60 Ohms
Output Impedance: should be used with a 47K Ohm MM Phono input
Channel Balance: +/-0.3dB
Internal Wiring: 99.99% Pure Copper
