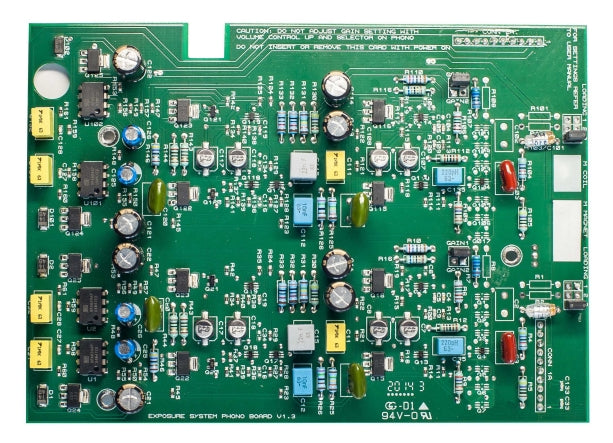

Exposure 3510/5010 MM Phono Card
Exposure 3510/5010 MM Phono Card
Couldn't load pickup availability
Optional Exposure MM phono stage for use inside the following Exposure amplifiers:
• 3010S Integrated Amplifier
• 3010S2 Integrated Amplifier
• 3010S2 Pre-Amplifier
• 3010S2D Integrated Amplifier
• 3010S2D Pre-Amplifier
• 3510 Integrated Amplifier
• 3510 Pre-Amplifier
• 5010 Pre-Amplifier
• High quality parts used throughout
• Tight tolerance parts used for accurate equalisation
• Low noise power supply regulators
• DC coupled input stage
Technical Specifications:
Sensitivity and Signal to Noise, ref 1kHz and 250mV Out:
- GAIN 1 jumper fitted : 2.5mV, >78dB S/N (default setting)
- No jumper fitted : 5mV, >79dB S/N
Loading:
- 47K Ohms
Or With Loading 1 Fitted:
- Additional 220pF in parallel with the cartridge (default)
Product Features:
- All discrete transistor audio stages
- High quality parts used throughout
- Tight tolerance parts used for accurate equalisation
- Low noise power supply regulators
- DC coupled input stage
Can be Fitted to:
- 3010 Integrated Amplifier
- 3010S Integrated Amplifier
- 3010S2 Integrated Amplifier
- 3010S2 Pre-Amplifier
- 3010S2D Integrated Amplifier
- 3010S2D Pre-Amplifier
- 3510 Integrated Amplifier
- 3510 Pre-Amplifier
- 5010 Pre-Amplifier
