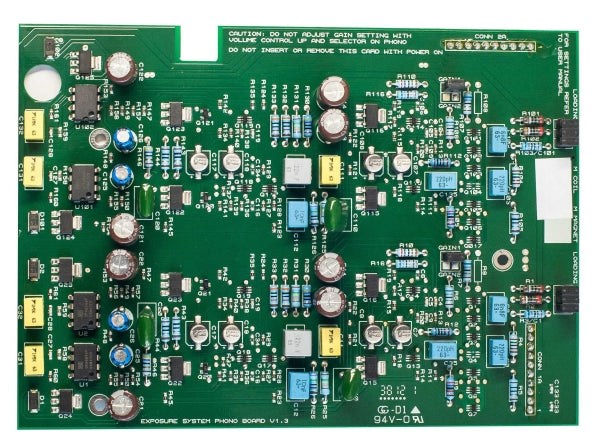

Exposure 3510/5010 MC Phono Card

Exposure 3510/5010 MC Phono Card

Regular price £380.00 GBP
Regular price Sale price £380.00 GBP
Sale Sold out
Taxes included.

Optional Exposure MC phono stage for use inside the following Exposure amplifiers:

• 3010 Integrated Amplifier
• 3010S Integrated Amplifier
• 3010S2 Integrated Amplifier
• 3010S2 Pre-Amplifier
• 3010S2D Integrated Amplifier
• 3010S2D Pre-Amplifier
• 3510 Integrated Amplifier
• 3510 Pre-Amplifier
• 5010 Pre-Amplifier
Features
• All discrete transistor audio stages
• High quality parts used throughout
• Tight tolerance parts used for accurate equalisation
• Low noise power supply regulators
• DC coupled input stage

Technical Specifications:

Sensitivity and Signal to Noise, ref 1kHz and 250mV Out:
- GAIN 1 jumper fitted : 2.5mV, >68dB S/N (default setting)
- No jumper fitted : 5mV, >70dB S/N
Loading:
- 6n8 in parallel with 1K5 Ohms
Or With Loading Jumpers Fitted:
- 1+2+3 100 Ohms (default)
- 1+2 110 Ohms
- 1+3 130 Ohms
- 2+3 210 Ohms
- 1 160 Ohms
- 2 310 Ohms
- 3 470 Ohms

Product Features:

- All discrete transistor audio stages
- High quality parts used throughout
- Tight tolerance parts used for accurate equalisation
- Low noise power supply regulators
- DC coupled input stage

Can be Fitted to:

- 3010 Integrated Amplifier
- 3010S Integrated Amplifier
- 3010S2 Integrated Amplifier
- 3010S2 Pre-Amplifier
- 3010S2D Integrated Amplifier
- 3010S2D Pre-Amplifier
- 3510 Integrated Amplifier
- 3510 Pre-Amplifier
- 5010 Pre-Amplifier
